MSP 405
HDMI/SDI/Fiber Convertor
User Manual
Article No: RGB-RD-UM-MSP 405 E001
Version No: V1.1

Advertisement

loading
Need help?

Need help?

Do you have a question about the MSP 405 and is the answer not in the manual?

Questions and answers

Summary of Contents for RGBlink MSP 405

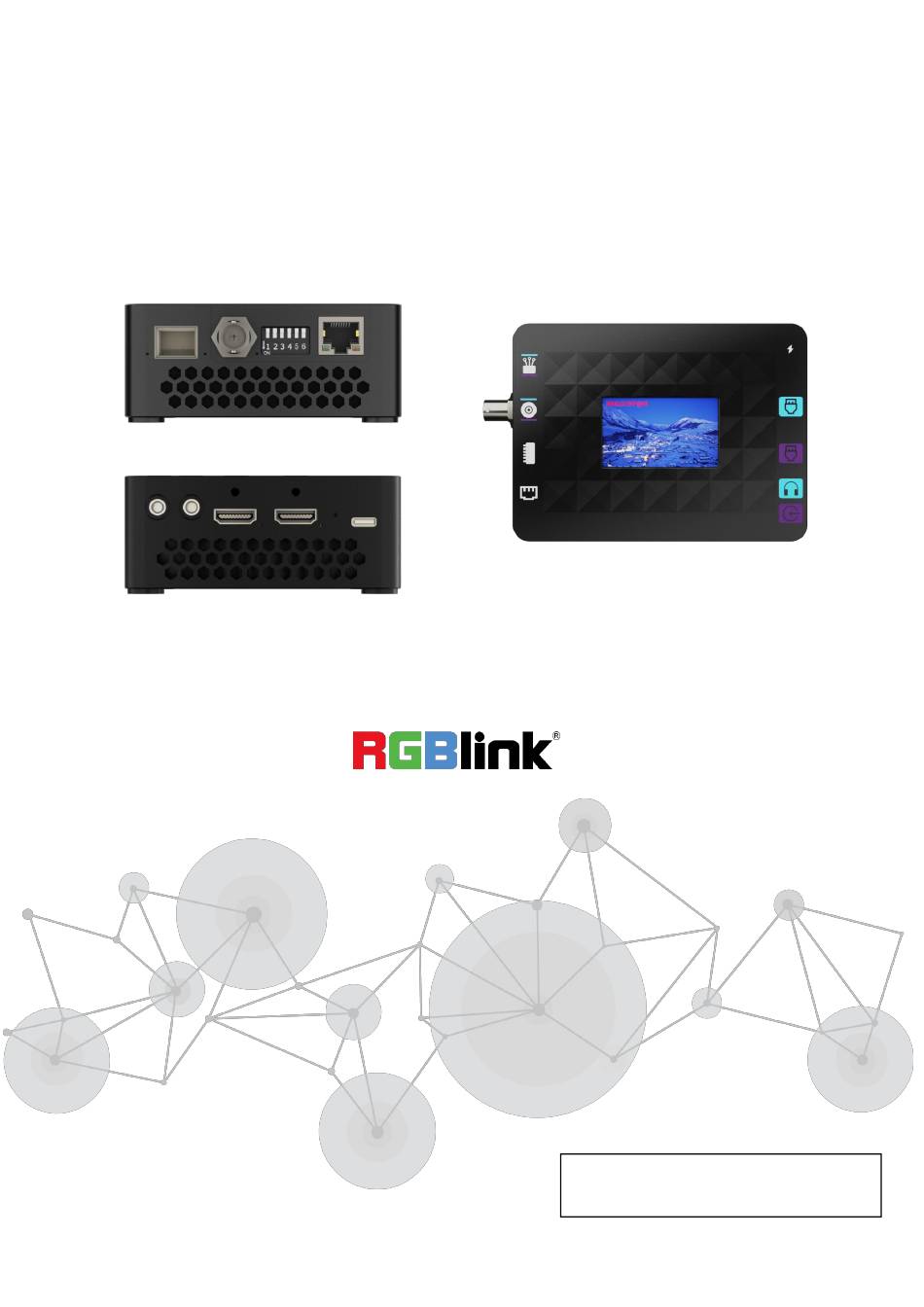

  • Page 1 MSP 405 HDMI/SDI/Fiber Convertor User Manual Article No: RGB-RD-UM-MSP 405 E001 Version No: V1.1...
  • Page 2: Table Of Contents

    2.2 Application Example 2 ..............11 2.3 Application Example 3 ..............12 Chapter 3 Order Code ................13 3.1 Product Code ................13 Chapter 4 Support ................14 4.1 Contact Us ..................14 Chapter 5 Appendix ................15 5.1 Specification ..................15 MSP 405 User Manual...
  • Page 3 5.2 DIP Switch Description ..............15 5.3 Interface Performance ..............17 5.4 Revision History ................18 MSP 405 User Manual...
  • Page 4: Declarations

    30 days after the transfer of risks. In the event of justified notice of compliant, RGBlink can repair the fault or provide a replacement at its own discretion within an appropriate period. If this measure proves to be impossible or unsuccessful, the purchaser can demand a reduction in the purchase price or cancellation of the contract.
  • Page 5: Installation Safety Summary

    Unpacking and Inspection Before opening MSP 405 shipping box, inspect it for damage. If you find any damage, notify the shipping carrier immediately for all claims adjustments. As you open the box, compare its contents against the packing slip.
  • Page 6: Chapter 1 About Your Product

    1920×1080P@60Hz HD resolution and 1280×720P@60Hz SD resolution. The MSP 405 integrates multiple video conversion functions, which is capable of converting video signals from any one of HDMI, SDI, or fiber optic inputs to any of the other two protocol outputs.
  • Page 7: Front Panel Description

    ● Standard Test Pattern generator built in for on-site setup ● Audio playback and embedding function ● Upgrade and control via Ethernet interface for system integration and custom development MSP 405 System Connection Diagram Example 1 MSP 405 System Connection Diagram Example 2 1.1.1 Front Panel Description ❶...
  • Page 8: Interface Panel Description

    Analog audio input port to input the audio signals. Connect it to LINE IN ❶ audio mixer, CD player, or other such audio equipment. ❷ LINE OUT Analog audio output port to output the results of audio mixing. MSP 405 User Manual...
  • Page 9: Dimension

    More details please refer to ❾ 5.2 DIP Switch Description. ❿ Ethernet port for decive upgrade. 1.1.3 Dimension Following is the dimension of MSP 405 for your reference: 147.9mm × 98.4mm × 41.9mm. MSP 405 User Manual...
  • Page 10: Chapter 2 Use Your Product

    ▄ PC: Used for outputing HDMI signal and configure the resolution. ▄ SDI Monitor: Verify the SDI cable and SDI signal source are working properly. ▄ SDI Cable: Connects the SDI signal source to the MSP 405 and the SDI signal source to the SDI monitor.
  • Page 11 Set the MSP 405 to Mode 3 by using the DIP switch. 7. Connect HDMI Cable Use an HDMI cable to connect the HDMI output port of the MSP 405 to the HDMI input port of the HDMI monitor. 8. Connect SDI Cable Use an SDI cable to connect the SDI output port of the SDI signal (e.g., a camera) to the SDI input...
  • Page 12: Application Example 2

    5. Use a fiber optic cable to connect MSP 405 Device 1 and MSP 405 Device 2. 6. Connect the HDMI output port of the MSP 405 Device 2, which receives fiber signal, to your terminal display so as to enable conversion between fiber and HDMI signals.
  • Page 13: Application Example 3

    MSP 405 Device 1. 3. Use an HDMI cable to connect the HDMI output port of MSP 405 Device 1 to the HDMI input port of a display for real-time monitoring of the SDI input from the camera.
  • Page 14: Chapter 3 Order Code

    Chapter 3 Order Code 3.1 Product Code Order Code Item 601-0405-01-0 MSP 405 MSP 405 User Manual...
  • Page 15: Chapter 4 Support

    Chapter 4 Support 4.1 Contact Us MSP 405 User Manual...
  • Page 16: Chapter 5 Appendix

    4:2:2 format, no delay. 2. Synchronizes optical signal with SDI output. 1. Converts SDI signal to HDMI output, with format conversion, output resolution of 1920x1080P@60Hz. Mode 3 SDI→HDMI+OPT 2. Converts SDI signal to optical output, with clock MSP 405 User Manual...
  • Page 17 Outputs 4K test pattern, with HDMI, optical, and SDI Test Pattern _4K outputs all at 3840x2160P@60Hz. Uses the embedded audio from the video signal for the AUDIO video output. Uses the audio from the analog audio input port for the AUDIO video output. MSP 405 User Manual...
  • Page 18: Interface Performance

    Data Rate Supports HD-SDI, 3G-A-SDI, 3G-B-SDI, 6G-SDI, 12G-SDI, adaptive Standards SMPTE292M, SMPTE424M, SMPTE2081-1:2015, SMPTE2082-1:2015 Color Space YCbCr 4:2:2 Fiber Optic Color Depth 10bit Audio 48kHz sample rate, 24-bit, stereo Transmission 1310±10nm Wavelength Transmission -3dBm~1dBm Power Reception 1260nm~1580nm MSP 405 User Manual...
  • Page 19: Revision History

    Aster 3. Add interface performance All information herein is Xiamen RGBlink Science & Technology Co Ltd. excepting noted. is a registered trademark of Xiamen RGBlink Science & Technology Co Ltd. While all efforts are made for accuracy at time of printing, we reserve the right to alter otherwise make change without notice.
