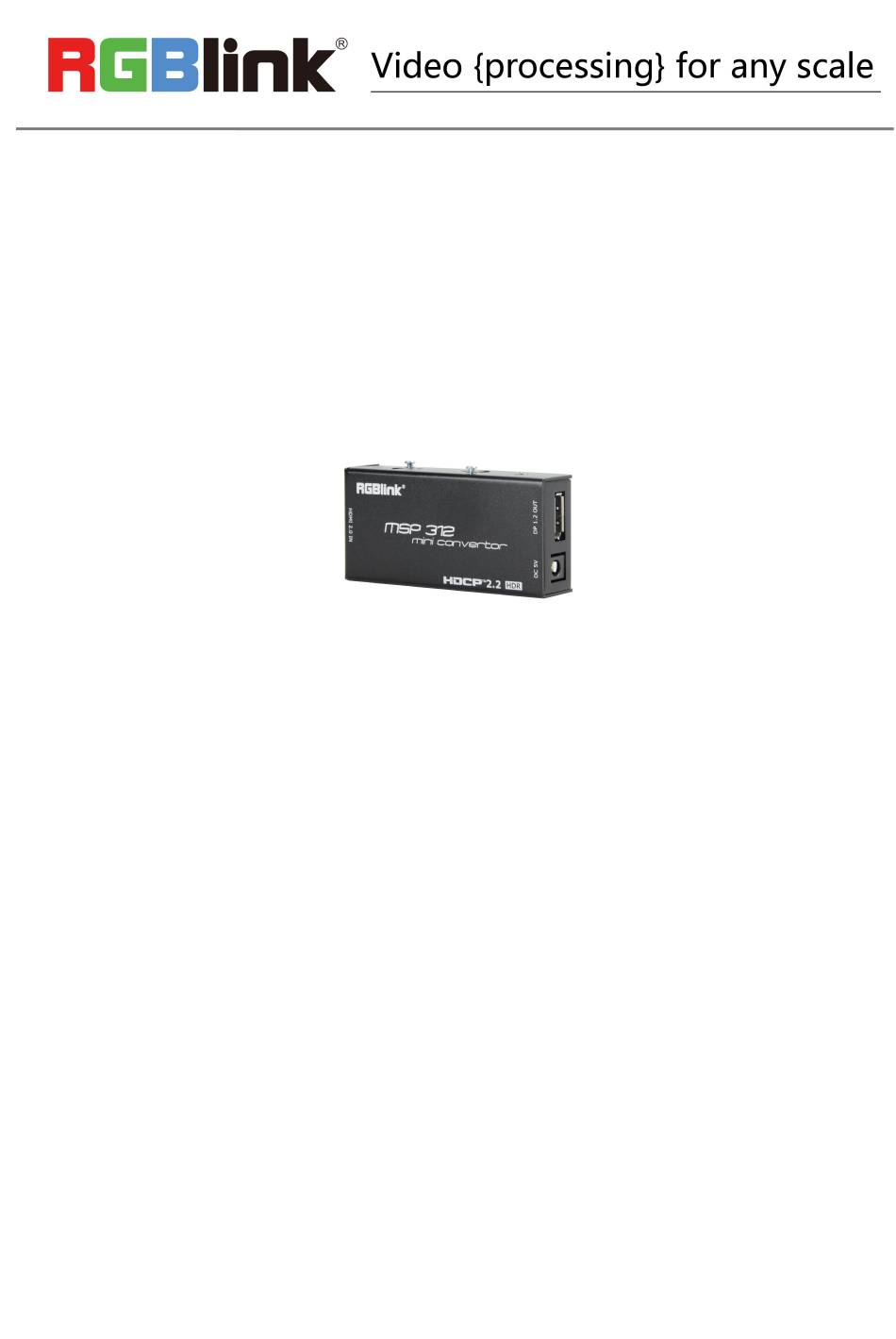

- Page 1 MSP 312 4K Mini Convertor (HDMI 2.0-DP 1.2) Quick Start ● HDR signal pass through ● 12 Bit processing ● HDMI 2.0 compatible ● HDCP 2.2 compliance ● Input and output resolution up to 3840x2160@60 ● Color Space 24bit RGB/YCbCr 4:4:4 8bit...
- Page 2 Packing Configuration..............................3 Hardware Orientation..............................4 Use Your Product................................. 5 General..................................5 Two To One Application...............................5 MSP Garage Installation.............................. 6 CONTACT INFORMATION.............................7 © Xiamen RGBlink Science & Technology Co., Ltd. 1 / 8 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...
- Page 3 Product Introduction The MSP 312 is an HDMI 2.0 to DP 1.2 video signal format converter, supporting 1 HDMI signal input to 1 DP 1.2 signal output. Support for input/output resolution up to 4K2K@ 50/60hz (YUV 4:4:4). Support 10bits HDR (High Dynamic Range) channel and HD resolution pass-through digital audio format and support HDCP 2.2.
- Page 4 Packing Configuration 1×Power Adapter Power Cord (USB-DC) Note: Power Adapter supplied as standard according to destination market. © Xiamen RGBlink Science & Technology Co., Ltd. 3 / 8 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...
- Page 5 DC power interface, power the device via DC 5V adapter 2 nails, used to attach to holes on other MSP converters 2 holes, used to attach to nails on other MSP converters © Xiamen RGBlink Science & Technology Co., Ltd. 4 / 8 Ph: +86 592 5771197 | support@rgblink.com...
- Page 6 Use Your Product General 1. Use HDMI 2.0 compliant cable to connect HMDI IN on MSP 312 to HDMI port on PC or Blu-Ray player or other video processor that support for HDMI 2.0 output. 2. Use DP 1.2 compliant cable to connect DP OUT on MSP 312 to DisplayPort on UHDTV or other HD display or other video processort that support for 4K input.
- Page 7 6. Plug in the power cord (AC 85~264V IEC-3 port), and push the power switch to the ON position, the device will enter normal working. © Xiamen RGBlink Science & Technology Co., Ltd. 6 / 8 Ph: +86 592 5771197 | support@rgblink.com...
- Page 8 All video products are designed and tested to the highest quality standard and backed by full 3 years parts and labor warranty. Warranties are effective upon delivery date to customer and are non-transferable. RGBlink warranties are only valid to the original purchase/owner. Warranty related repairs include parts and labor, but do not include faults resulting from user negligence, special modification, lighting strikes, abuse(drop/crush), and/or other unusual damages.
