Equinox Systems Merlin 80W User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Merlin 80W
User Manual
Order code: EQLED447

Advertisement

loading
Need help?

Need help?

Do you have a question about the Merlin 80W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Equinox Systems Merlin 80W

Summary of Contents for Equinox Systems Merlin 80W

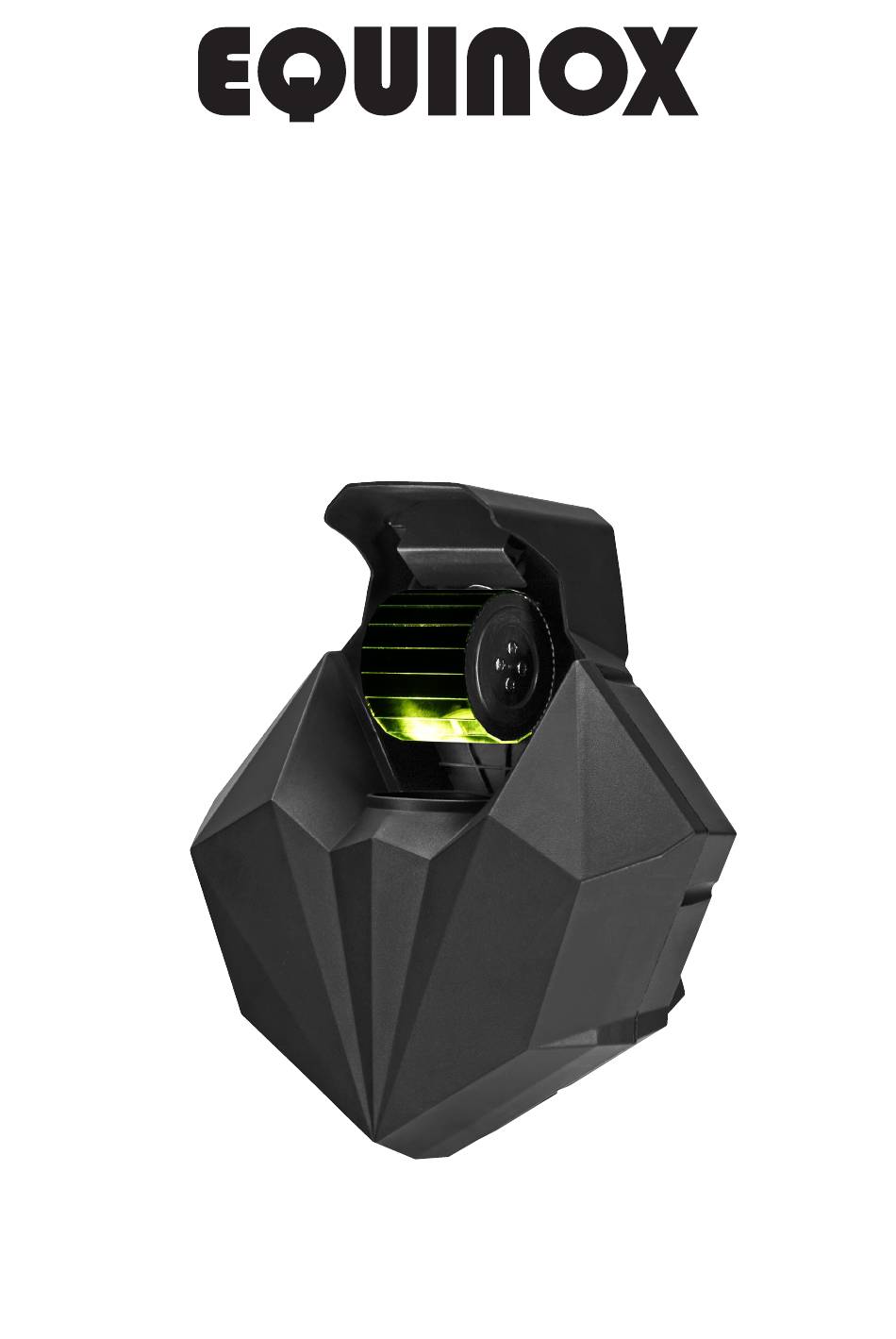

  • Page 1 Merlin 80W User Manual Order code: EQLED447...

  • Page 2: Safety Advice

    Please note: These fixtures are intended for stage lighting and entertainment applications only, and are not intended for extended periods of use, including but not limited to house-light, industrial or architectural applications and should only be operated with short duty cycles. www.prolight.co.uk Merlin 80W User Manual...
  • Page 3 • 4 button menu with OLED display Power supply 100~240V, 50/60Hz • PowerTwist TR1 power input Fuse F3A 250V • 3-Pin XLR input/output Dimensions 314 x 283 x 162mm • Fan cooled Weight 2.5kg Order code EQLED447 162mm 283mm www.prolight.co.uk Merlin 80W User Manual...

  • Page 4: Technical Specifications

    07 - Hanging bracket adjustment knobs & 1 x power cable 03 - 3-Pin DMX output 08 - Focus adjustment knob 04 - 3-Pin DMX input 09 - Safety eye 05 - PowerTwist TR1 power input www.prolight.co.uk Merlin 80W User Manual...

  • Page 5: Installation

    2. Mount the fixture onto your truss system via the clamps and tighten to ensure it is secure. 3. Pull the safety cable through the safety cable hole located on the metal base plate on the back of the fixture and around the truss. www.prolight.co.uk Merlin 80W User Manual...
  • Page 6 000-255 (080) Sound mode sensitivity Backlight Display backlight settings Fact Rest Restore factory settings Temperature xx°C Fixture Temperature Version Vx.x Software version Please note: the unit must be set in master to run the show modes. www.prolight.co.uk Merlin 80W User Manual...
  • Page 7 140-149 Gobo / colour 5 shake (slow-fast) 150-159 Gobo / colour 6 shake (slow-fast) 160-169 Gobo / colour 7 shake (slow-fast) 170-179 Gobo / colour 8 shake (slow-fast) Gobo / colour wheel rotation 180-255 (slow-fast) www.prolight.co.uk Merlin 80W User Manual...
  • Page 8 140-149 Gobo / colour 5 shake (slow-fast) 150-159 Gobo / colour 6 shake (slow-fast) 160-169 Gobo / colour 7 shake (slow-fast) 170-179 Gobo / colour 8 shake (slow-fast) Gobo / colour wheel rotation 180-255 (slow-fast) www.prolight.co.uk Merlin 80W User Manual...
  • Page 9 “UP” and “DOWN” buttons to set the required pan home postion between 000 - 255. Press the “ENTER” button to confirm the setting. To return to the main menu, hold the “ENTER” button for 3 seconds. www.prolight.co.uk Merlin 80W User Manual...

  • Page 10: Dmx Setup

    Further DMX cables can be purchased from all good sound and lighting suppliers or Prolight Concepts dealers. Please quote: 3-Pin: CABL10 – 2m CABL11 – 5m CABL12 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Merlin 80W User Manual...
  • Page 11 5-pin XLR (male) 3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Merlin 80W User Manual...

  • Page 12: Weee Notice

    Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Merlin 80W User Manual...

This manual is also suitable for:

Eqled44
