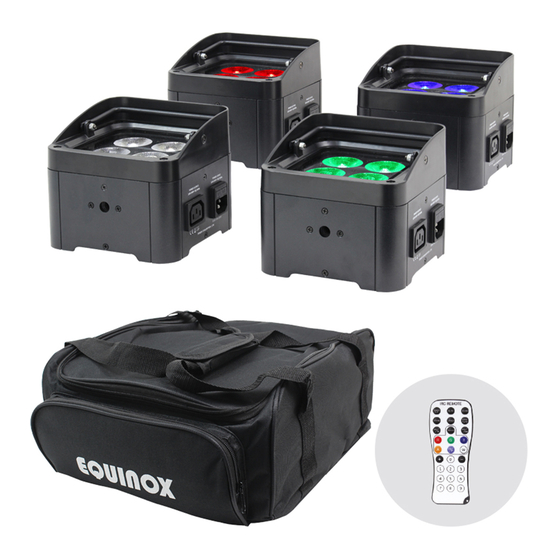

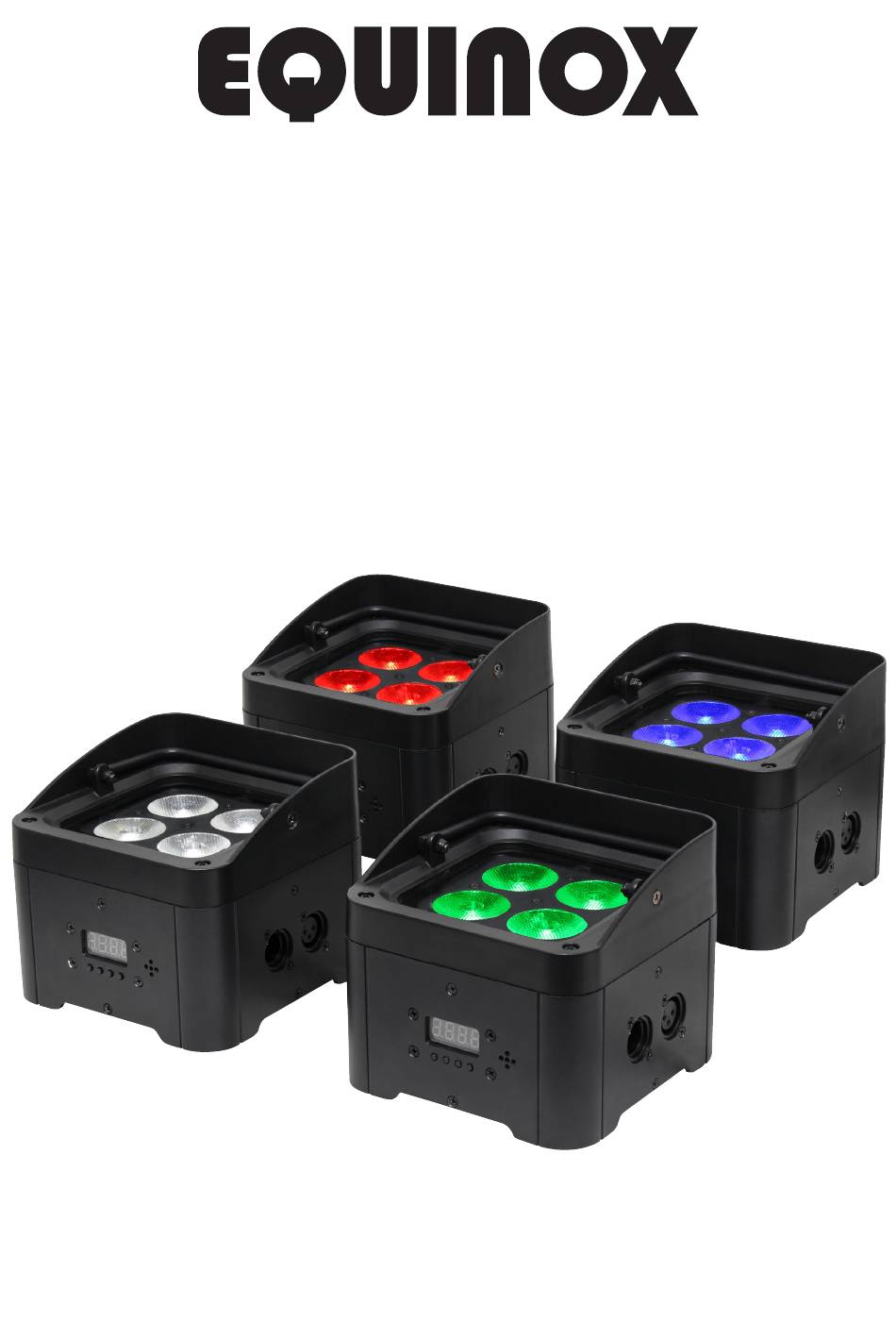

- Page 1 Colour Raider Uplighter Pack User Manual Order code: EQLED038...
-
Page 2: Safety Advice
Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Colour Raider Uplighter Pack User Manual... - Page 3 Fuse T3A 250V 1130 70.5 45.1 Uplighter dimensions 127 x 150 x 145mm Uplighter weight 1.3kg 25° Pack dimensions 150 x 320 x 360mm Pack weight 5.6kg Order codes EQLED038 150mm 145mm 145mm www.prolight.co.uk Colour Raider Uplighter Pack User Manual...
- Page 4 1 x IR remote & 03 - Microphone 07 - IEC power output 09 - Carry handle 1 x user manual 04 - 3-Pin DMX input 08 - Fuse T3A 250V 10 - M10 rigging point www.prolight.co.uk Colour Raider Uplighter Pack User Manual...
-
Page 5: Dmx Settings
A u t o F A I L b L A C DMX fail settings H o L d S L A V Slave mode I n F r IR remote o F F www.prolight.co.uk Colour Raider Uplighter Pack User Manual... - Page 6 160-169 Dark Blue 170-255 Light Pink 000-009 No function 010-069 Colour fade (speed slow-fast) 070-129 Colour change (speed slow-fast) 130-189 Colour fade sound active (sensitivity low-high) 190-255 Colour change sound active (sensitivity low-high) www.prolight.co.uk Colour Raider Uplighter Pack User Manual...
- Page 7 000-009 No function 190-255 Colour change sound active 010-069 Colour fade (speed slow-fast) (sensitivity low-high) 070-129 Colour change (speed slow-fast) 130-189 Colour fade sound active (sensitivity low-high) 190-255 Colour change sound active (sensitivity low-high) www.prolight.co.uk Colour Raider Uplighter Pack User Manual...
- Page 8 LED display. Now press the “ENTER” button and use the “UP” and “DOWN” SE 1 SE 9 buttons to select the sound sensitivity between Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk Colour Raider Uplighter Pack User Manual...
-
Page 9: Master/Slave Mode
LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to choose between . Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk Colour Raider Uplighter Pack User Manual... - Page 10 11 - Adjusts the auto mode, sound mode, speed, sound sensitivity, strobe speed and static colour/manual colour modes 12 - Sets the brightness of auto, sound, static colour and manual modes (1 - low brightness, 9 - high brightness) www.prolight.co.uk Colour Raider Uplighter Pack User Manual...
-
Page 11: Dmx Setup
3-Pin: CABL10 – 2m CABL11 – 5m CABL12 – 10m 5-Pin: CABL185 – 2m CABL187 – 5m CABL188 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Colour Raider Uplighter Pack User Manual... -
Page 12: Line Termination
3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Colour Raider Uplighter Pack User Manual... - Page 13 Please note: Caution should be used when power linking other fixtures to the Colour Raider Uplighters as the power consumption of other fixtures will vary. Fixtures fitted with lamps often require 2/3 times more current on startup, these may require their own power source. www.prolight.co.uk Colour Raider Uplighter Pack User Manual...
-
Page 14: Weee Notice
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Colour Raider Uplighter Pack User Manual... - Page 15 Colour Raider Uplighter Pack User Manual...
- Page 16 Colour Raider Uplighter Pack User Manual...
