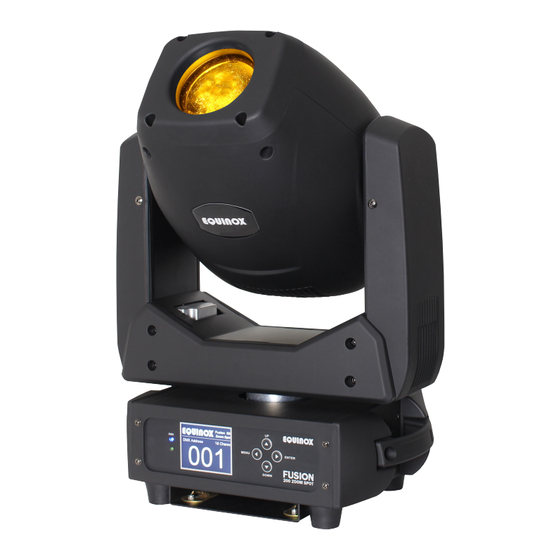

- Page 1 Fusion 200 Zoom Spot User Manual Order codes: EQLED054 - Black Housing EQLED054A - White Housing...
-
Page 2: Safety Advice
Safety advice WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! • Before your initial start-up, please make sure that there is no damage caused during transportation. • Should there be any damage, consult your dealer and do not use the equipment. •... - Page 3 Safety advice This fixture falls under Protection Class 1, therefore it has to be connected to a mains socket with a protective earthing connection. Risk group 2, RG-2: CAUTION! Do not stare at exposed LED in operation as it may damage/be harmful to the eyes.
- Page 4 25° - Lux 39420 9855 4380 2463 1576 Power supply 100~240V, 50/60Hz Fuse F4A 250V 11° 25° Dimensions 450 x 302 x 200mm Weight 12.7kg Order code EQLED054 - Black Housing EQLED054A - White Housing www.prolight.co.uk Fusion 200 Zoom Spot User Manual...
-
Page 5: Technical Specifications
Technical specifications 200mm 96mm 302mm 293mm 183mm 274mm www.prolight.co.uk Fusion 200 Zoom Spot User Manual... - Page 6 Technical specifications In the box: 1 x fixture, 2 x omega clamps, 01 - LCD display 04 - 3-Pin DMX output 07 - Fuse F4A 250V 1 x power cable 02 - Function buttons 05 - PowerCON input 08 - Power switch &...
-
Page 7: Installation
Installation Before installing the fixture, the supporting structure (ie. truss) must be able to hold a minimum of 10 times the fixtures weight without any deformation (eg. 15kg - 150kg point load). The fixture must be secured with a secondary safety attachment when being installed (ie. an appropriate safety cable). Never stand directly below the fixture when mounting, removing, and/or servicing. - Page 8 Installation Installation: 1. Fasten each clamp to the omega clamps with a bolt and lock nut through the hole in the omega clamp. 2. Align and insert the omega clamp quick-lock fasteners with the respective holes on the bottom of the unit. 3.
- Page 9 Operating instructions Control Panel Menu: The LCD control panel situated on the front of the fixture allows the user to access the menu system to adjust the fixtures settings. When the unit has been powered on the display will show “Equinox Fusion 200 Zoom Spot”, “Motor Reset...
- Page 10 Operating instructions Main Menu - Defaults are in grey DMX address: 1. DMX 1. DMX Address Address To access the DMX address mode, press the “ENTER” button and use the “UP” and “DOWN” Default buttons to show “DMX Address” on the LCD display.
-
Page 11: Master/Slave Mode
Operating instructions Master/slave mode: 4. Master/Slave Master To access the master/slave modes, press the “ENTER” button and use the “UP” and “DOWN” buttons to show “Master/Slave” on the LCD Slave 1 display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to set the Slave 2 required mode. - Page 12 Operating instructions Manual control: 7. Manual Control To access manual control mode, press the “ENTER” button and use the “UP” and “DOWN” Tilt buttons to show “Manual Control” on the LCD display. Press the “ENTER” button and use the “UP” and “DOWN” buttons to select the various Dimmer options.
- Page 13 Operating instructions Pan invert: 8. Pan Invert To access the pan invert setting, press the “ENTER” button and use the “UP” and “DOWN” buttons to show “Pan Invert” on the LCD display. Press the “ENTER” button and use the “UP” and “DOWN”...
- Page 14 Operating instructions Display backlight: 11. Display Backlight Settings To access the display backlight setting, press the “ENTER” button and use the “UP” and “DOWN” buttons to show “Display Settings” on the LCD display. Press the “ENTER” button and use the “UP” and “DOWN” buttons to select “Backlight”.Press the “ENTER”...
- Page 15 Operating instructions Calibration: 12. Calibration Calibration settings for the fixture. To access the units calibration menu press the Tilt “ENTER” button and use the “UP” and “DOWN” buttons to show “Calibration”. Press the “ENTER” button and use the “UP” and “DOWN” buttons Dimmer to select the various options.
-
Page 16: System Information
Operating instructions Operating instructions System information: Current Run 13. System Time Information To display the fixtures system information, xxHxxM press the “ENTER” button and use the “UP” and Total Run Time “DOWN” buttons to show “System Information” xxxxxH on the LCD display The unit will now display the fixtures current run time, total run time, Temperature temperature and software version. - Page 17 Operating instructions Factory Reset: 16. Factory Reset Resets all the fixtures factory settings. To access the factory setting reset, press the “ENTER” button and use the “UP” and “DOWN” buttons to show “Factory Reset” on the LCD display. Press the “ENTER” button and use the “UP”...
- Page 18 Operating instructions 2 channel mode: 14 channel mode: Channel Value Function Channel Value Function 000-015 No function 000-255 Pan adjustment 0-540° 016-075 Show 1 000-255 Tilt adjustment 0-270° 076-135 Show 2 000-255 Pan/tilt speed 136-195 Show 3 000-255 Master dimmer (0-100%) 196-255 Show 4 (forward facing show) 000-004...
- Page 19 Operating instructions 14 channel mode (cont.): Channel Value Function Channel Value Function 078-087 Gobo 1 shake (slow-fast) 000-007 No function 088-097 Gobo 2 shake (slow-fast) Gobo rotation CW 008-129 (fast-slow) 098-107 Gobo 3 shake (slow-fast) 130-133 No function 108-117 Gobo 4 shake (slow-fast) Gobo rotation CCW 118-127 Gobo 5 shake (slow-fast)
- Page 20 Operating instructions 18 channel mode: Channel Value Function Channel Value Function 000-255 Pan adjustment 0-540° 078-087 Gobo 1 shake (slow-fast) 000-255 Pan fine adjustment 088-097 Gobo 2 shake (slow-fast) 000-255 Tilt adjustment 0-270° 098-107 Gobo 3 shake (slow-fast) 000-255 Tilt fine adjustment 108-117 Gobo 4 shake (slow-fast) 000-255...
- Page 21 Operating instructions 18 channel mode (cont.): Channel Value Function 000-007 No function Gobo rotation CW 008-129 (fast-slow) CH11 130-133 No function Gobo rotation CCW 134-255 (slow-fast) CH12 000-255 Focus CH13 000-255 Zoom 000-007 No function 008-099 Prism 1 (Circular) CH14 100-130 No function 131-255...
- Page 22 Gobos ROTATING GOBOS Gobo size: 23.8mmØ Image size: 20mmØ (Max. Thickness if replaced is 2mm) Note: Rotating gobos are xed into each gobo carriage with high temperature clear silicone adhesive. STATIC GOBOS COLOURS www.prolight.co.uk Fusion 200 Zoom Spot User Manual...
-
Page 23: Dmx Setup
DMX setup Setting the DMX address: The DMX mode enables the use of a universal DMX controller. Each fixture requires a “start address” from 1- 512. A fixture requiring one or more channels for control begins to read the data on the channel indicated by the start address. -
Page 24: Line Termination
DMX setup DMX setup Notice: Be sure to follow the diagrams below when making your own cables. Pin Configuration Do not connect the cables shield conductor to the ground lug or 3-Pin 5-Pin allow the shield conductor to come in contact with the XLRs Pin 1 - Ground outer casing. - Page 25 Multiple fixture power linking Power linking: This fixture provides power linking via the power output on the rear allowing multiple units to be connected together. The maximum number of fixtures that can be connected is 6 fixtures @ 240V or 3 fixtures @ 120V (including the first fixture). After the maximum number of fixtures are connected a new power run will need to be started.
-
Page 26: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. - Page 27 www.prolight.co.uk Fusion 200 Zoom Spot User Manual...
- Page 28 www.prolight.co.uk Fusion 260ZR User Manual...
