- Page 1 Power Par 54 MKIII User Manual Order code: EQLED115...
-
Page 2: Safety Advice

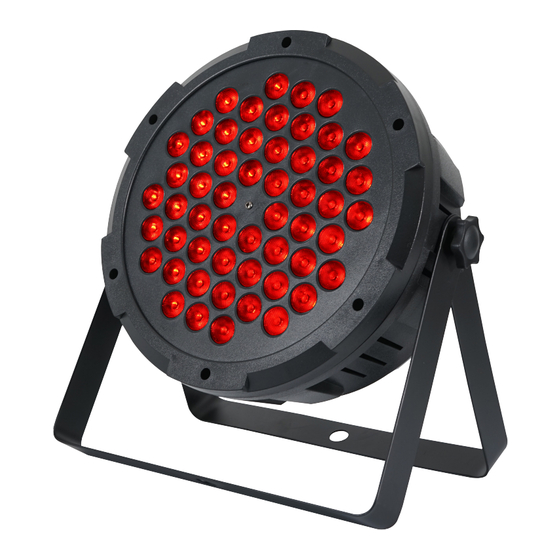

Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Power Par 54 MKIII User Manual... - Page 3 Power Par 54 MKIII The Power Par 54 MKIII is a powerful fixture that feature tri-colour LEDs and produce a range of effects including colour change and fade, controllable in auto and sound active modes along with DMX. A dual bracket is included allowing the fixture to be hung or stood on the floor.
- Page 4 LEDs. Press the “ENTER” button to confirm the setting and move to the next colour. To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk Power Par 54 MKIII User Manual...
-
Page 5: Master/Slave Mode
Pr11 - Colour fade in-out (7 colours) & colour fade Pr12 - Colour change (3 colours) Pr13 - Colour change (7 colours) Slave mode SLAV Sound active mode SOUd Sens 000~ 100 DMX mode Address setting A001~A512 www.prolight.co.uk Power Par 54 MKIII User Manual... -
Page 6: Dmx Setup
3-Pin: CABL10 – 2m CABL11 – 5m CABL12 – 10m 5-Pin: CABL185 – 2m CABL187 – 5m CABL188 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Power Par 54 MKIII User Manual... -
Page 7: Line Termination
3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Power Par 54 MKIII User Manual... - Page 8 Please note: Caution should be used when power linking other fixtures to the Power Par 54 MKIII as the power consumption of other fixtures will vary. LED fixtures fitted with switch mode power supplies often require 2/3 times more current on startup, these may require their own power source.
- Page 9 Power Par 54 MKIII User Manual...
- Page 10 Power Par 54 MKIII User Manual...
- Page 11 Power Par 54 MKIII User Manual...
- Page 12 Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Power Par 54 MKIII User Manual...
