- Page 1 SpectraPix Batten User Manual Order code: EQLED055...
-
Page 2: Safety Advice

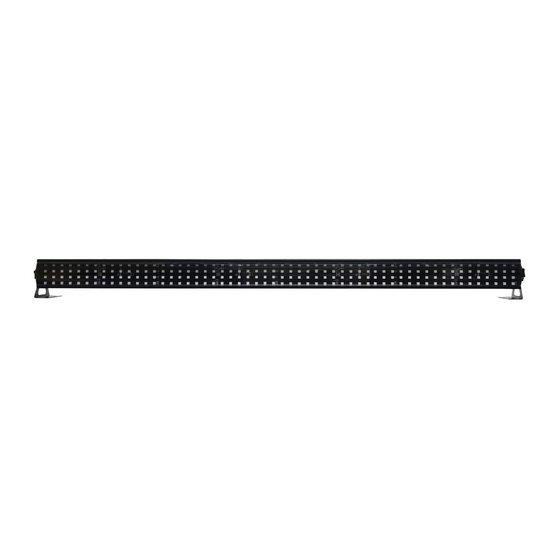

Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk SpectraPix Batten User Manual... - Page 3 Product overview & technical specifications SpectraPix Batten The SpectraPix Batten contains 224 SMD 5050 RGB LEDs divided into 16 segments. They feature a wide 120° viewing angle and feature a milky, frost effect front screen along with clear front screen to further expand the versatility of this fixture.
-
Page 4: Technical Specifications
10 - Fuse F3A 250V 1 x power cable 03 - Earth point 07 - 3-Pin XLR output 11 - Microphone & 1 x user manual 04 - LED display 08 - IEC power input www.prolight.co.uk SpectraPix Batten User Manual... - Page 5 Display backlight setting 6 0 s S e t E - - - Program direction setting d i r - - - 3 I n f o v e r V - - - Software version www.prolight.co.uk SpectraPix Batten User Manual...
-
Page 6: Dmx Mode
242-255 Sound mode 3 118-121 Built-in program 27 Static colour selection (see list 000-255 122-125 Built-in program 28 on page 9 for static colours) 126-129 Built-in program 29 Program speed (slow-fast)/ 000-255 sound sensitivity (low-high) www.prolight.co.uk SpectraPix Batten User Manual... - Page 7 000-255 Segment 7 blue (0-100%) 000-255 Segment 13 red (0-100%) 000-255 Segment 8 red (0-100%) 000-255 Segment 13 green (0-100%) 000-255 Segment 8 green (0-100%) 000-255 Segment 13 blue (0-100%) 000-255 Segment 8 blue (0-100%) www.prolight.co.uk SpectraPix Batten User Manual...
- Page 8 000-255 Segment 7 blue (0-100%) 046-049 Built-in program 9 000-255 Segment 8 red (0-100%) 050-053 Built-in program 10 000-255 Segment 8 green (0-100%) 054-057 Built-in program 11 000-255 Segment 8 blue (0-100%) 058-061 Built-in program 12 www.prolight.co.uk SpectraPix Batten User Manual...
- Page 9 Built-in program 43 186-189 Built-in program 44 190-193 Built-in program 45 194-197 Built-in program 46 198-201 Built-in program 47 202-205 Built-in program 48 206-209 Built-in program 49 210-213 Built-in program 50 214-217 Built-in program 51 www.prolight.co.uk SpectraPix Batten User Manual...
- Page 10 Orange CL11 Vibrant Green CL19 Purple Blue CL05 Amber CL12 Mint Green CL20 Purple CL06 Yellow CL13 Turquoise CL21 Violet CL07 Yellow Green CL14 Cyan CL22 Pink CL08 Lime Green CL15 Light Blue CL23 Magenta www.prolight.co.uk SpectraPix Batten User Manual...
-
Page 11: Master/Slave Mode
E--- ---3 “ENTER” button and use the “UP” and “DOWN” buttons to select between Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk SpectraPix Batten User Manual... -
Page 12: Dmx Setup
Please quote: 3-Pin: CABL10 – 2m CABL11 – 5m CABL12 – 10m 5-Pin: CABL185 – 2m CABL187 – 5m CABL188 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk SpectraPix Batten User Manual... -
Page 13: Line Termination
5-pin XLR (male) 3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk SpectraPix Batten User Manual... -
Page 14: Power Linking
Please note: Caution should be used when power linking other fixtures to the SpectraPix Batten as the power consumption of other fixtures will vary. Fixtures fitted with lamps often require 2/3 times more current on startup, these may require their own power source. - Page 15 SpectraPix Batten User Manual...
