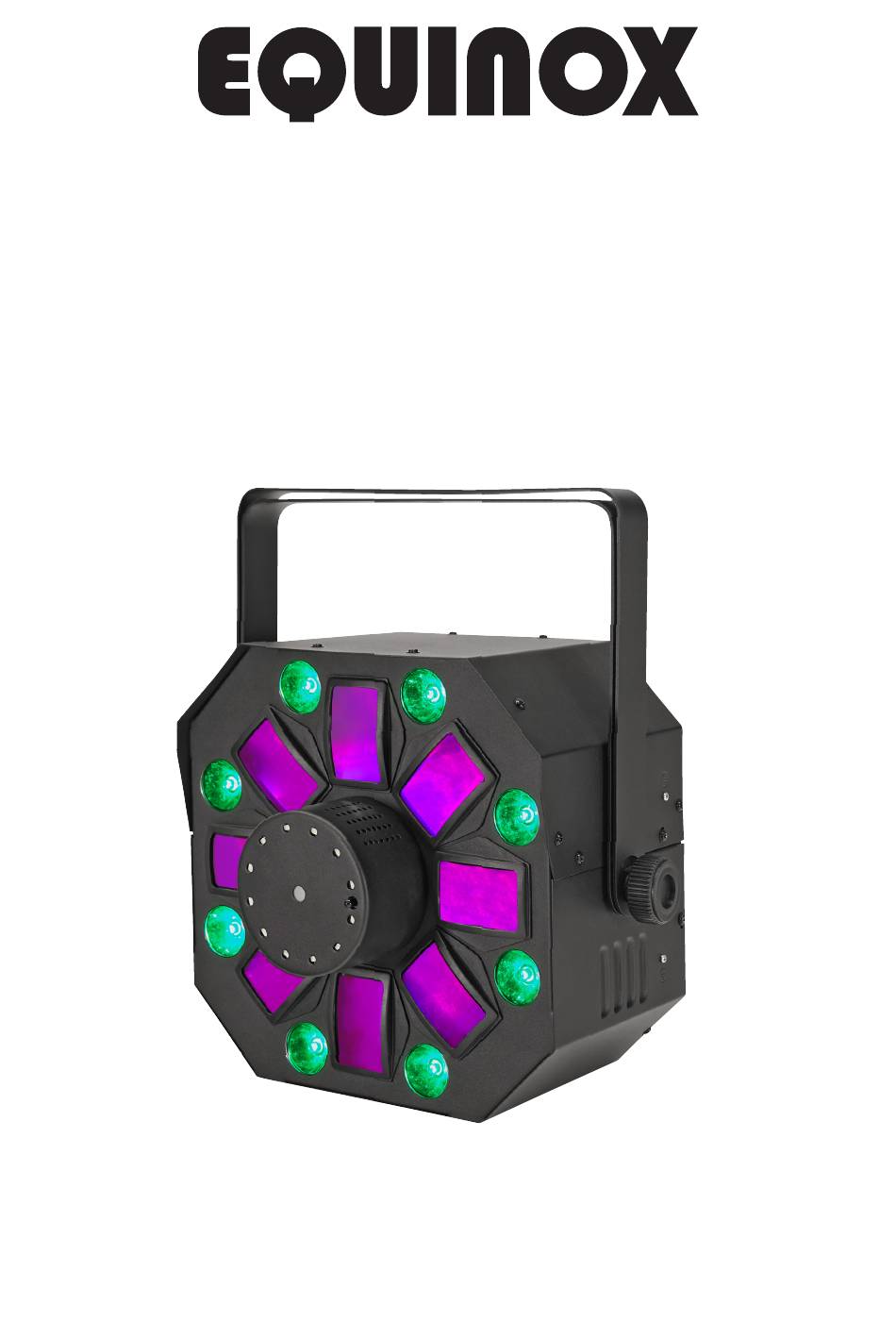

- Page 1 Hornet User Manual Order code: EQLED450...
- Page 2 Safety advice WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! • Before your initial start-up, please make sure that there is no damage caused during transportation. • Should there be any damage, consult your dealer and do not use the equipment. •...
- Page 3 Safety advice Proper Usage This product is for overhead use only. For safety purposes, we recommend mounting lighting effect products with lasers, on level surfaces or sturdy overhead supports using suitable hanging clamps and safety cables. Please contact us for more information on appropriate mounting hardware. International laser safety regulations state that laser products must be operated as per the example below;...
- Page 4 Product overview & technical specifications Hornet The Hornet is a feature packed 4-in-1 unit combining multi-beam, wash, strobe and laser effects to cover large areas in an array of colourful patterns and effects. A magnitude of built-in shows can be accessed via the menu or handy IR remote, allowing the user to simply plug and play.
- Page 5 Technical specifications www.prolight.co.uk AUTO SOUND SLAVE MENU DOWN ENTER WIRELESS DMX USB DMX OUTPUT DMX INPUT LASER LASER LOCK REMOTE INTERLOCK SAFETY FUSE: T1.6A 250V POWER INPUT POWER OUTPUT 100-240V 50/60Hz POWER CONSUMPTION: 47W 01 - Hanging bracket 09 - 3-Pin DMX input In the box: 1 x fixture, 02 - Hanging bracket adjustment knobs 10 - 3-Pin DMX output...
- Page 6 Installation Installation: 1. Fasten the clamp to the bracket on the back of the fixture. 2. Mount the fixture onto your truss system via the clamps and tighten to ensure it is secure. 3. Pull the safety cable through the safety cable hole located on the metal base plate on the back of the fixture and around the truss.
- Page 7 Operating instructions Operating instructions A P 1 A u t Auto mode A P 1 5 s 9 9 S P 1 Sound modes S o u S P 1 5 0 2 C h 5 1 1 d N X 1 8 C h DMX mode 4 9 5...
- Page 8 Operating instructions DMX mode: Operating in a DMX control mode environment gives the user the greatest flexibility when it comes to customising or creating a show. In this mode you will be able to control each individual trait of the fixture and each fixture independently. To access the DMX channel / address mode, press the “MENU”...
- Page 9 Operating instructions 18 channel mode: Channel Value Function Channel Value Function 000-015 No function 001-051 No function 016-030 Program 1 052-102 031-045 Program 2 103-153 Green Wash 5 046-060 Program 3 154-204 Blue 061-075 Program 4 205-255 UV 076-090 Program 5 001-051 No function 091-105...
- Page 10 Operating instructions 18 channel mode (cont.) Channel Value Function Channel Value Function 085-089 Red + Green + Blue 000-009 No function 090-094 Red + Green +Amber 010-019 Program 1 (fast-slow) 095-099 Red + Green + White 020-029 Program 2 (fast-slow) 100-104 Red + Amber + Blue 030-039 Program 3 (fast-slow)
- Page 11 Operating instructions 19 channel mode: Channel Value Function Channel Value Function Master dimmer (0-100%) - 001-051 No function 000-255 Derby & wash 052-102 000-015 No function 103-153 Green Wash 5 016-030 Program 1 154-204 Blue 031-045 Program 2 205-255 UV 046-060 Program 3 001-051 No function...
- Page 12 Operating instructions 19 channel mode (cont.) Channel Value Function Channel Value Function 085-089 Red + Green + Blue 000-009 No function 090-094 Red + Green +Amber 010-019 Program 1 (fast-slow) 095-099 Red + Green + White 020-029 Program 2 (fast-slow) 100-104 Red + Amber + Blue 030-039 Program 3 (fast-slow)
- Page 13 Operating instructions Auto mode: To access the auto modes, press the “MENU” on the rear of the unit button and use the “UP” and “DOWN” buttons to show on the LED display. Now press the “ENTER” button and use the “UP” AP 1 AP15 and “DOWN”...
- Page 14 Operating instructions IR remote control: To activate the IR remote functionality press the “MENU” button on the rear of the unit to show on the LED display. Press the “ENTER” button and use the “UP” and “DOWN” buttons to show the LED display.
- Page 15 IR remote IR remote functions: 01 - Sets the unit into auto mode (press multiple times to cycle through the 7 auto modes) 02 - Sets the unit into sound mode (press multiple times to cycle through the 7 sound modes) 03 - Sets the unit into blackout on or off 04 - Sets the derby colour in manual mode (use the +/–...
- Page 16 Operating instructions Wireless operation: To operate the fixture (sold separately) wirelessly you will need to plug in the W-DMX Compatible USB Transceiver into the USB port on the rear of the fixture. W-DMX should also be set to “ON” in the fixtures settings (full instructions can be in the fixtures manual).
- Page 17 DMX setup Setting the DMX address: The DMX mode enables the use of a universal DMX controller. Each fixture requires a “start address” from 1- 512. A fixture requiring one or more channels for control begins to read the data on the channel indicated by the start address.
- Page 18 DMX setup Notice: Be sure to follow the diagrams below when making your own cables. Pin Configuration Do not connect the cables shield conductor to the ground lug or 3-Pin 5-Pin allow the shield conductor to come in contact with the XLRs Pin 1 - Ground outer casing.
- Page 19 Multiple fixture power linking Power linking: This fixture provides power linking via the power output on the rear allowing multiple units to be connected together. The maximum number of fixtures that can be connected is 24 fixtures @ 240V or 12 fixtures @ 120V (including the first fixture). After the maximum number of fixtures are connected a new power run will need to be started.
- Page 20 WEEE notice WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life.
