Wire Color
Green
Red/Black
White
Orange
Red
Blue
Black
Brown
Red/Green
Red/White
Blue/Green
Blue/White
Function
Blade Left
Blade Right
Lift
Lower
Communication
Module Power
SmartHitch2
Ground
Right wing retract
Right wing extend
Left wing retract
Left wing extend

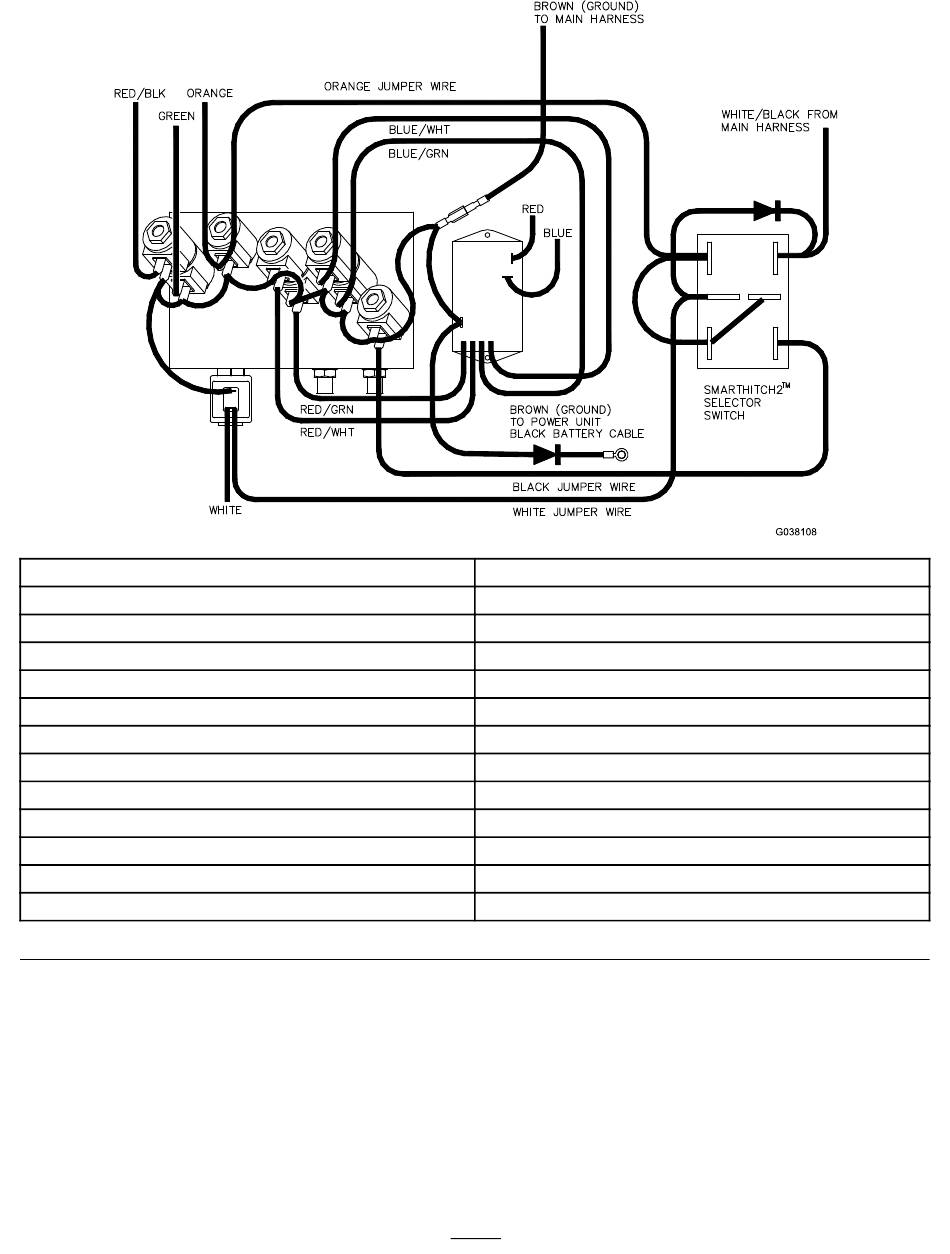

Hydraulic Diagram (Rev. 0)
29
g038108
