4.
Secure the left headlight to the headlight bracket
using 4 bolts (1/4 inch), split lock washers, and
flat washers
(Figure
Important:
Do not use thread locking
compound on these bolts.
Note:
Do not tighten the fasteners at this time.
5.
Repeat steps
3
and
bracket and headlight.
6.
Insert the headlight connectors on the wire
harness to the back of the headlight housing
(Figure
14). The short length connects to the
left headlight and the long length connects to
the right headlight.
1. Cable ties
7.
Secure the wire harness to the light bar using 3
cable ties as shown in
Installing the Blade Guides
and Filling the Hydraulic
Reservoir
1.
Attach the blade guides to the plow blade using
4 bolts (5/16 x 1 inch) and 4 self-locking nuts
(Figure
15).
13).
4
for the right headlight

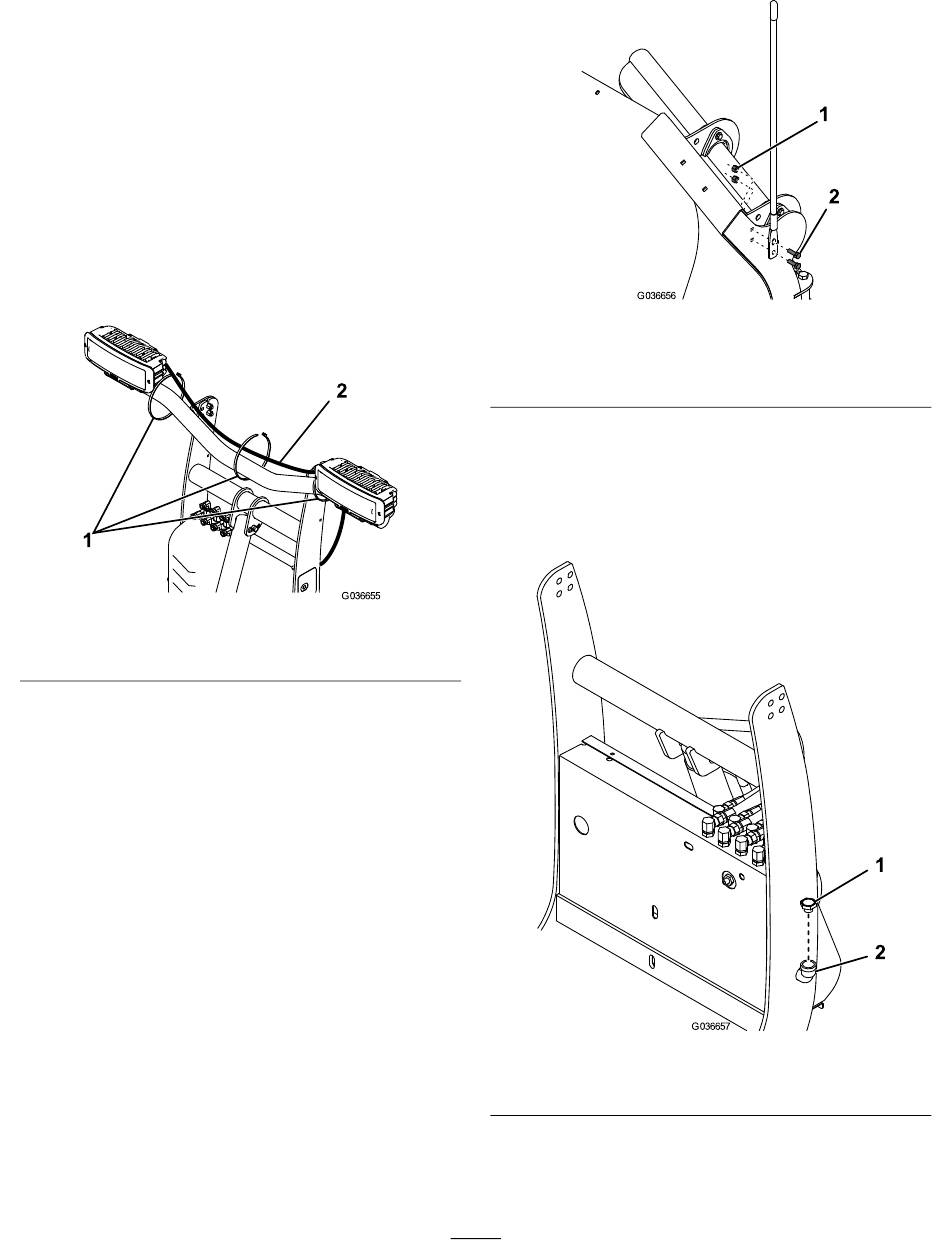

Figure 14
2. Short wire harness
Figure
14.
1. Self-locking nut (5/16 inch) 3. Bolt (5/16 x 1 inch)
2. Blade guide
2.
Ensure that the lift cylinder is completely
collapsed.
Note:
The lights should tilt forward.
3.
Remove the fill cap from the hydraulic reservoir
(Figure
16).
g036655
1. Fill cap
4.
Slowly fill the reservoir with BOSS
high-performance hydraulic fluid until it
accepts no more.
12
Figure 15
Figure 16
2. Hydraulic reservoir
g036656
g036657
