1.3.2.3.

RGB-video input signal selection for after-market navigation (Dip 4)

If an after-market RGB navigation or other RGB video source is connected, the source's RGB
output signal has to match the interface's RGB video input setting.
1.3.2.4.

Rear-view camera setting (dip 5)

If set to OFF, the interface switches to factory LVDS picture while the reverse gear is engaged
to display factory rear-view camera or factory optical park system picture.
If set to ON, the interface switches to its rear-view camera input while the reverse gear is
engaged.
1.4.

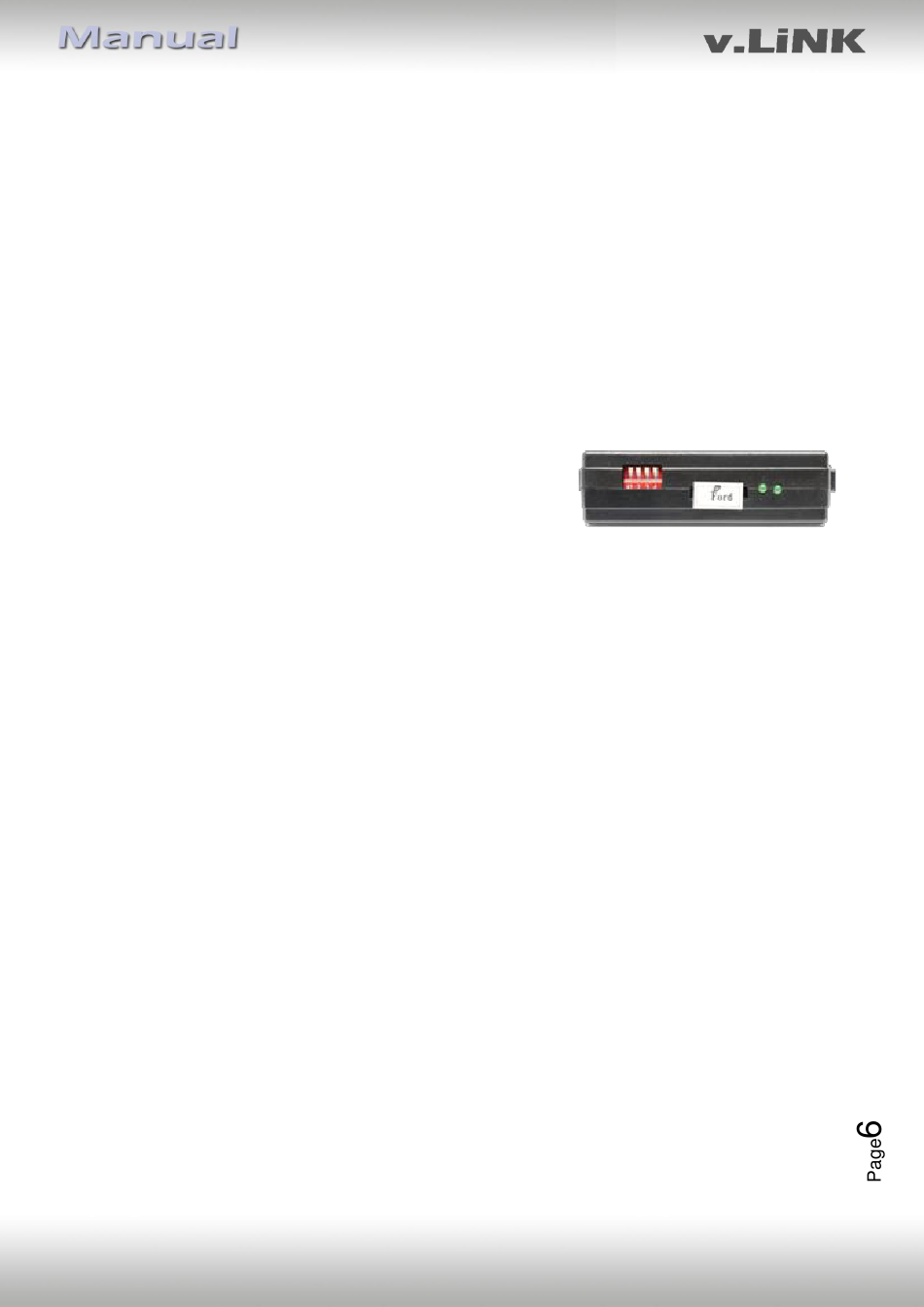

Dip-switch settings of the CAN-box

By using Dip-switch 4 the CAN-Bus communication
between the appropriate factory head-unit and the
interface will be associated to the type of vehicle, in which
the interface will be connected to.
Dip switch 1-3 don`t have any function and have to be set to "OFF".
Dip position down is ON and position up is OFF.
If the CAN-Bus communication doesn`t succeed, change the position of dip switch 4 and
make a power reset before checking.
After each Dip-switch-change a power-reset of the Can-box has to be performed!
Version 06.04.2017 CI-VL2-SY2-N
