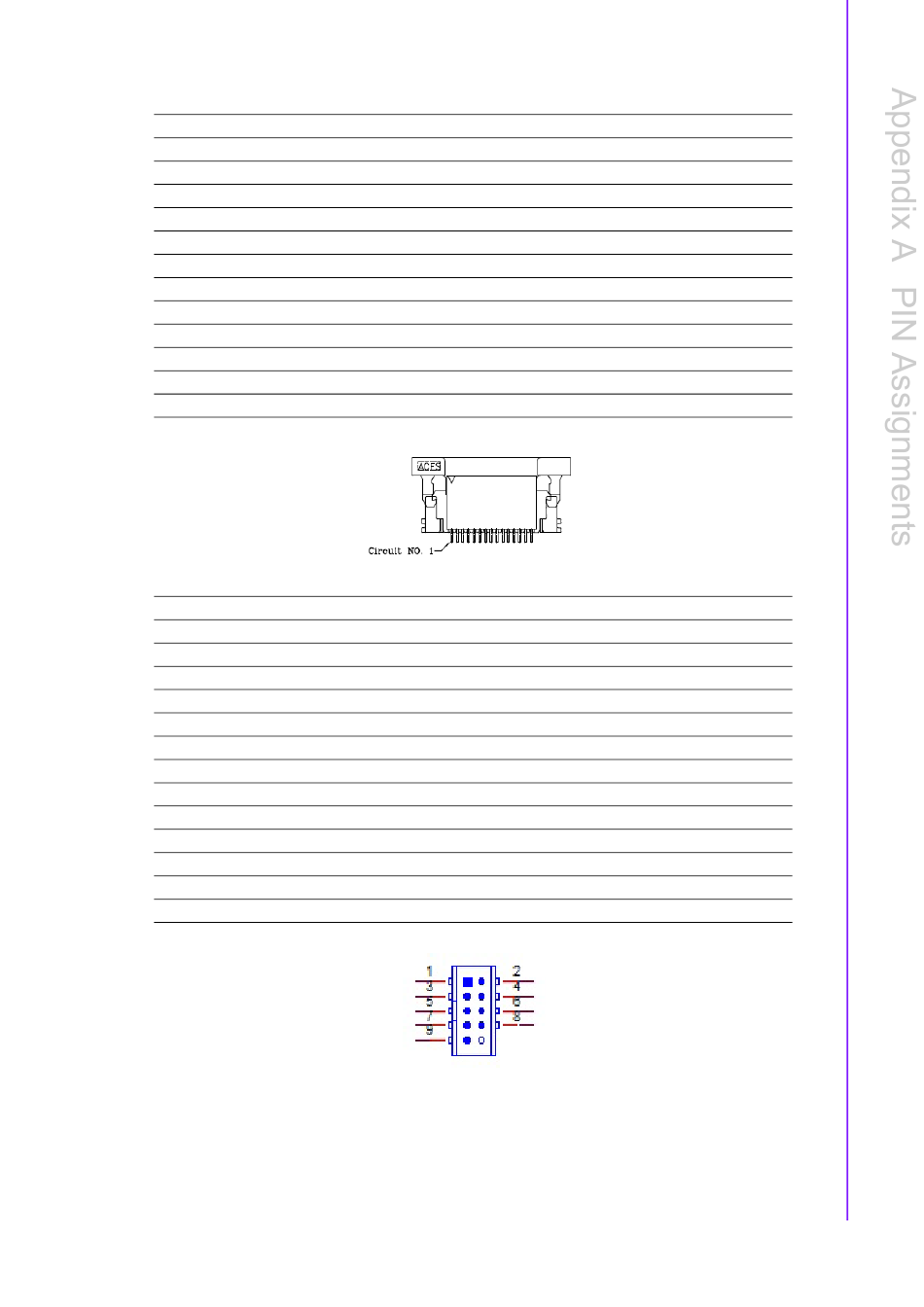

CN31
IS200 Debug Port
Part Number
1654010149
Footprint
FPCCON_8P_20_88706-0801
Description
Pin
Pin Name
1
GND
2
TMS
3
TDI
4
TDO
5
TCK
6
CLK
7
+V3.3RDC
8
+V3.3EC
CN33
Internal USB
Part Number
1653004515
Footprint
HD5x2P_79_23N685B-10M10_N10
Description
Pin
Pin Name
1
+5V
2
+5V
3
A_D-
4
B_D-
5
A_D+
6
B_D+
7
GND
8
GND
9
GND
67
MIO-2361 User Manual
