INSYS GSM 4.3 I4
6.2
Terminal Connections on the Top

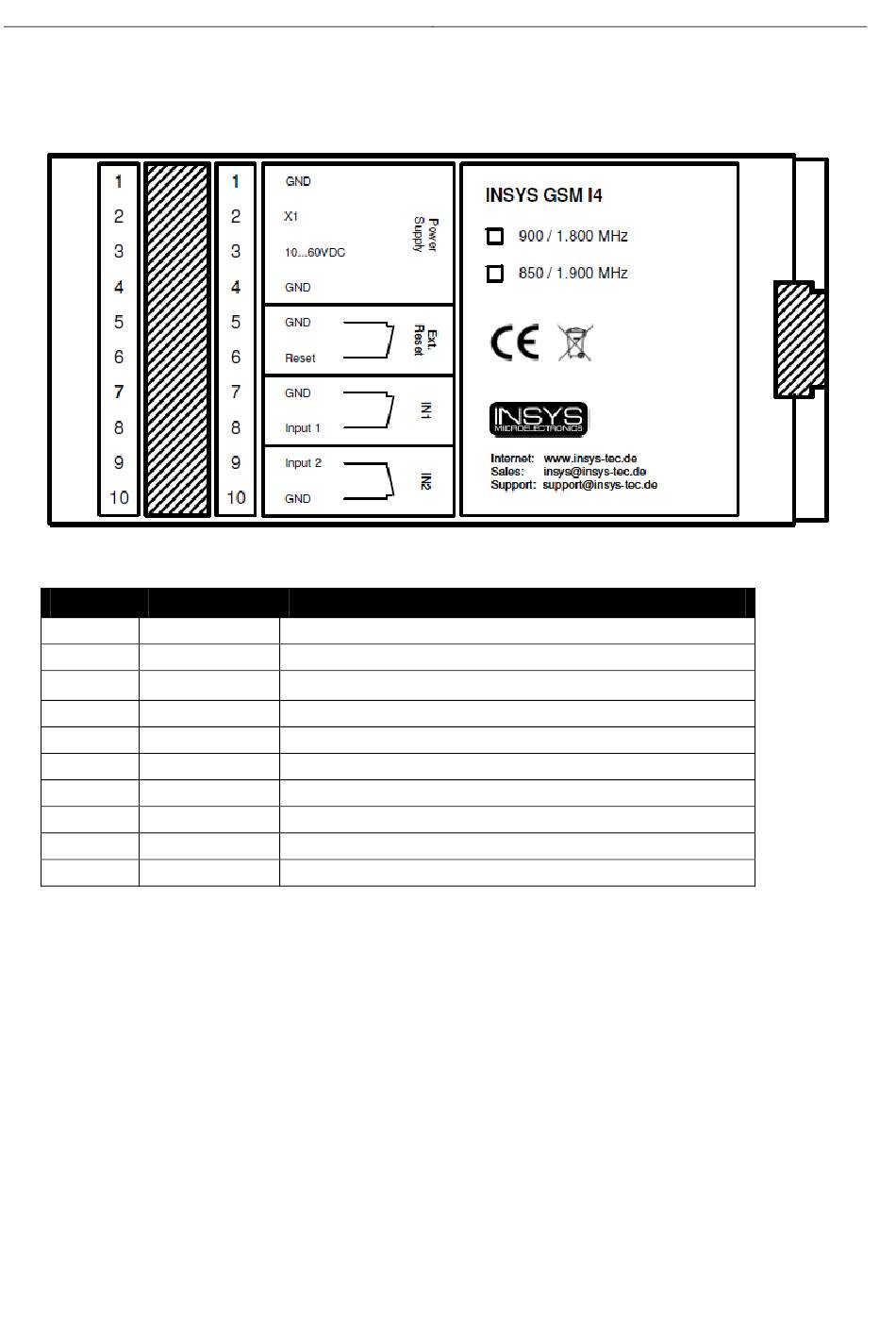

Figure 3: Connections on the top of the device
Terminal Description
1
GND
2
X1
3
10 ... 60VDC
4
GND
5
GND
6
Reset
7
GND
8
Input 1
9
Input 2
10
GND
Table 8: Description of the connections on the top of the device
Description
Ground
Reserved
Power supply 10V - 60V DC
Ground
Ground
Reset input
Ground
Alarm input 1
Alarm input 2
Ground
Connections
21
