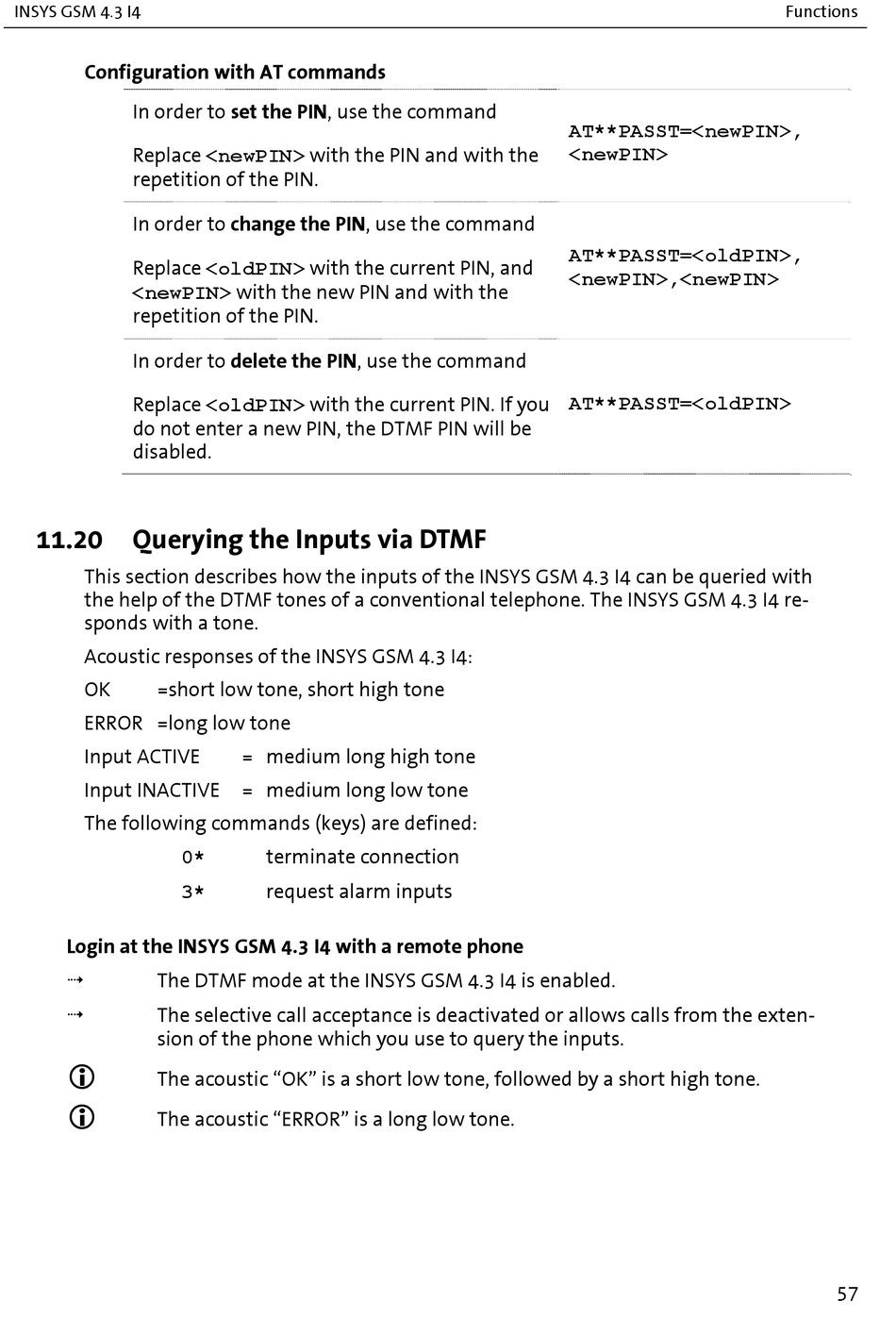

Querying The Inputs Via Dtmf - INSYS GSM 4.3 I4 Manual

INSYS GSM 4.3 I4
Configuration with AT commands
In order to set the PIN, use the command
Replace <newPIN> with the PIN and with the
repetition of the PIN.
In order to change the PIN, use the command
Replace <oldPIN> with the current PIN, and
<newPIN> with the new PIN and with the
repetition of the PIN.
In order to delete the PIN, use the command
Replace <oldPIN> with the current PIN. If you
do not enter a new PIN, the DTMF PIN will be
disabled.
11.20

Querying the Inputs via DTMF

This section describes how the inputs of the INSYS GSM 4.3 I4 can be queried with
the help of the DTMF tones of a conventional telephone. The INSYS GSM 4.3 I4 re-
sponds with a tone.
Acoustic responses of the INSYS GSM 4.3 I4:
OK =short low tone, short high tone
ERROR =long low tone
Input ACTIVE
Input INACTIVE = medium long low tone
The following commands (keys) are defined:
0*
3*
Login at the INSYS GSM 4.3 I4 with a remote phone

The DTMF mode at the INSYS GSM 4.3 I4 is enabled.

The selective call acceptance is deactivated or allows calls from the exten-
sion of the phone which you use to query the inputs.

The acoustic "OK" is a short low tone, followed by a short high tone.

The acoustic "ERROR" is a long low tone.
= medium long high tone
terminate connection
request alarm inputs
AT**PASST=<newPIN>,
<newPIN>
AT**PASST=<oldPIN>,
<newPIN>,<newPIN>
AT**PASST=<oldPIN>
Functions
57
