ASSEMBLY INSTRUCTIONS
ITEM# L-GZ407PST-2

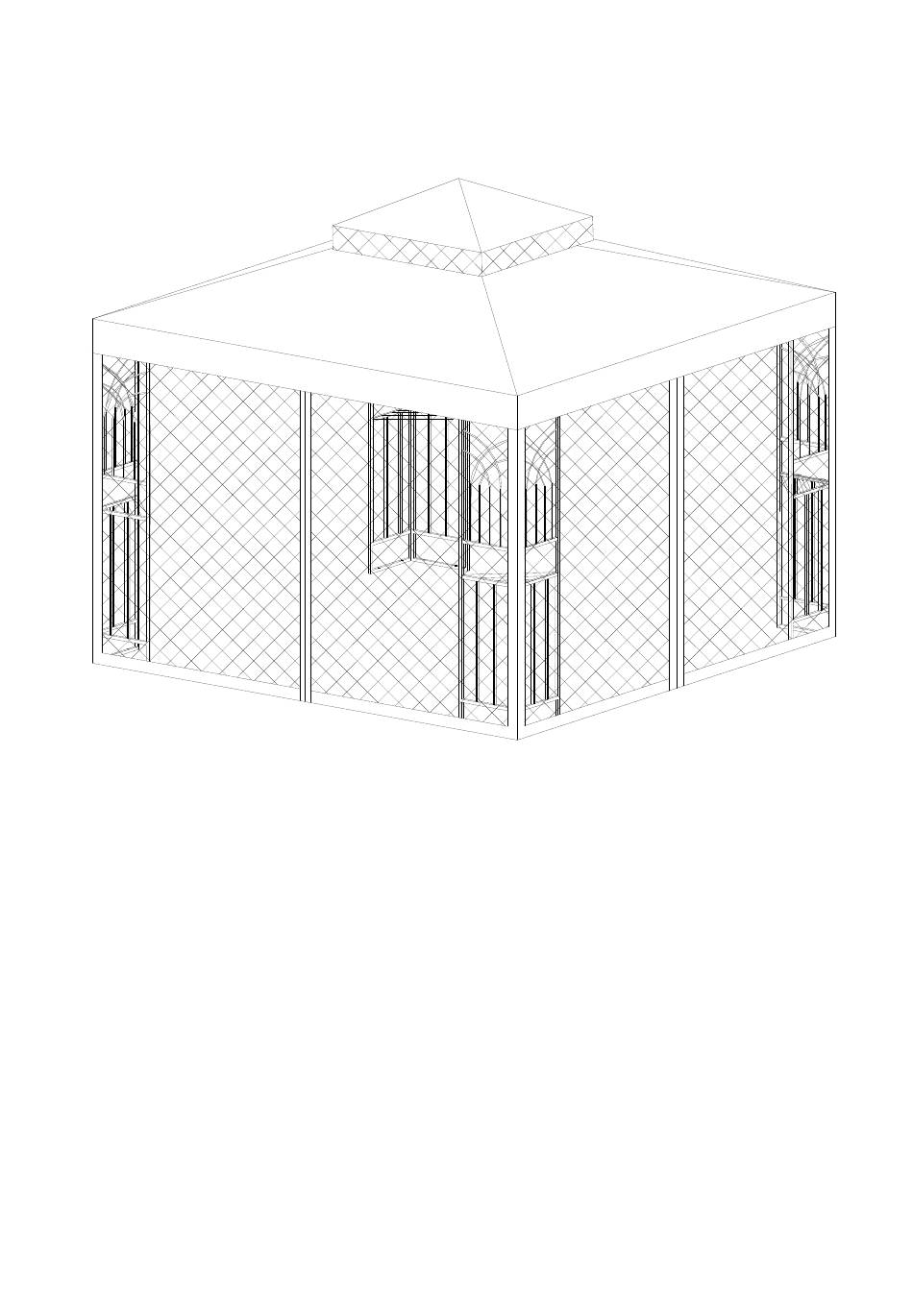

10'x10' Gazebo with mosquito netting
IMPORTANT:
Please read and follow all safety statements, warnings, assembly instructions, use & care directions before attempting to
assemble.
1. When installing and assembling your gazebo, it is recommended that 2 or more adults are involved.
2. Do not use the unit during an electrical storm, as there is a remote chance of getting struck by lightening.
3. Do not climb on top of the gazebo. Falling off the gazebo can result in serious injury, possibly even death.
4. Do not leave the gazebo assembled when there is a risk of high wind, as possible damage will occur to the structure.
5. Never barbecue under this gazebo or use lanterns that contain naked flames.
6. This package contains small items and plastic bags that should be kept away from children.
7. Ensure that all connectors & poles are firmly secured in position fully. It is important to do so before use so as to avoid
collapsing or damage to the item, which could result in injury.
8. WARNING: Keep flame and heat sources away from the gazebo fabric. The fabric may burn if it is exposed to prolonged
contact with a source of heat. The application of any foreign substance to the gazebo fabric may render the flame-resistant
properties ineffective.
9. WARNING: Please take down the gazebo during strong wind. The manufacturer or retailer is not liable for any loss of the
product or other items due to the failure to take down the gazebo during strong wind.
Tools required: Ladder, Hammer Screwdriver (not included)
