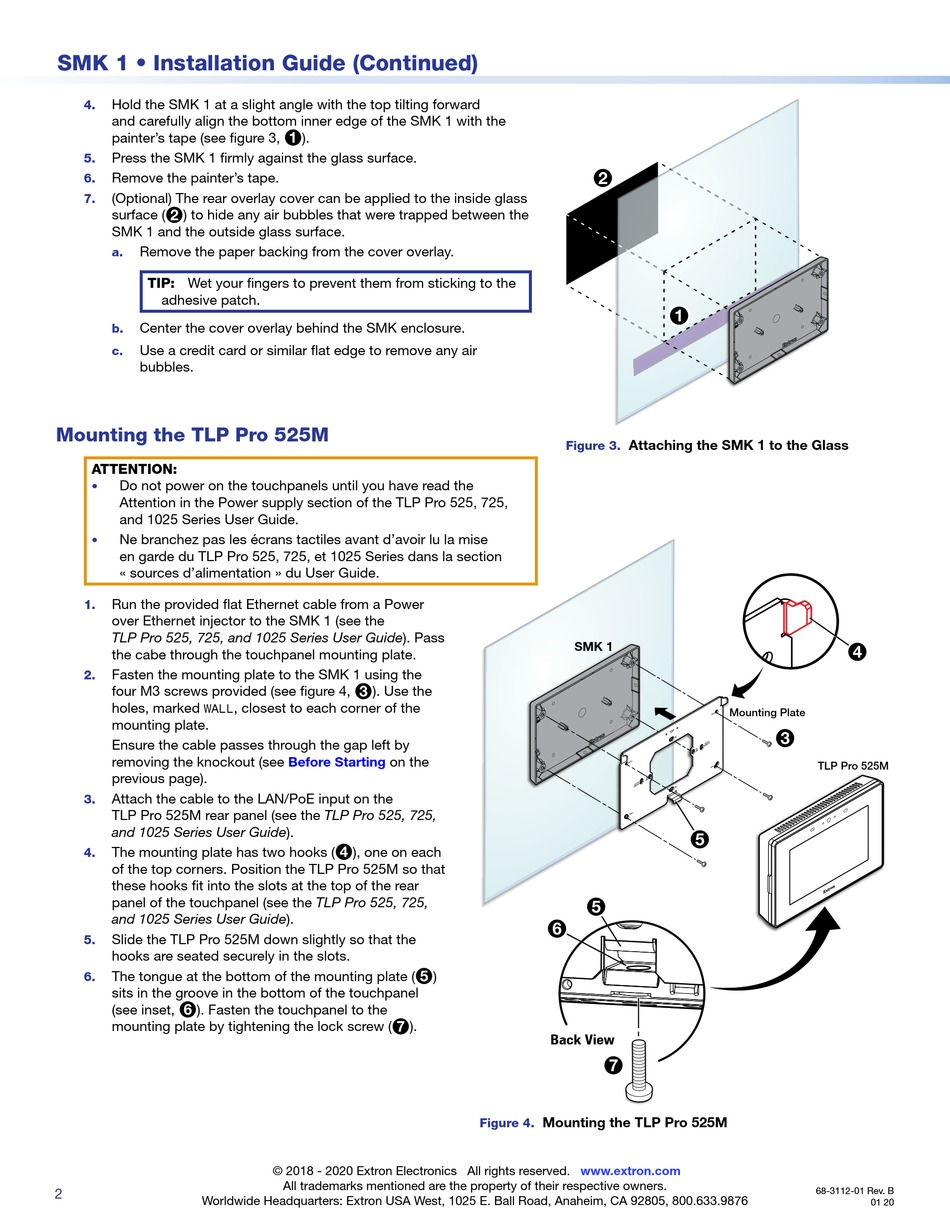

SMK 1 • Installation Guide (Continued)
Hold the SMK 1 at a slight angle with the top tilting forward
4.
and carefully align the bottom inner edge of the SMK 1 with the
painter's tape (see figure 3,
Press the SMK 1 firmly against the glass surface.
5.
Remove the painter's tape.
6.
(Optional) The rear overlay cover can be applied to the inside glass
7.
surface (
2
) to hide any air bubbles that were trapped between the
SMK 1 and the outside glass surface.
Remove the paper backing from the cover overlay.
a.
TIP: Wet your fingers to prevent them from sticking to the
adhesive patch.
Center the cover overlay behind the SMK enclosure.
b.
Use a credit card or similar flat edge to remove any air
c.
bubbles.
Mounting the TLP Pro 525M
ATTENTION:
Do not power on the touchpanels until you have read the
•
Attention in the Power supply section of the TLP Pro 525, 725,
and 1025 Series User Guide.
Ne branchez pas les écrans tactiles avant d'avoir lu la mise
•
en garde du TLP Pro 525, 725, et 1025 Series dans la section
« sources d'alimentation » du User Guide.
Run the provided flat Ethernet cable from a Power
1.
over Ethernet injector to the SMK 1 (see the
TLP Pro 525, 725, and 1025 Series User Guide). Pass
the cabe through the touchpanel mounting plate.
Fasten the mounting plate to the SMK 1 using the
2.
four M3 screws provided (see figure 4,
holes, marked
, closest to each corner of the
WALL
mounting plate.
Ensure the cable passes through the gap left by
removing the knockout (see
previous page).
Attach the cable to the LAN/PoE input on the
3.
TLP Pro 525M rear panel (see the TLP Pro 525, 725,
and 1025 Series User Guide).
The mounting plate has two hooks (
4.
of the top corners. Position the TLP Pro 525M so that
these hooks fit into the slots at the top of the rear
panel of the touchpanel (see the TLP Pro 525, 725,
and 1025 Series User Guide).
Slide the TLP Pro 525M down slightly so that the
5.
hooks are seated securely in the slots.
The tongue at the bottom of the mounting plate (
6.
sits in the groove in the bottom of the touchpanel
(see inset,
6
). Fasten the touchpanel to the
mounting plate by tightening the lock screw (
2
Worldwide Headquarters: Extron USA West, 1025 E. Ball Road, Anaheim, CA 92805, 800.633.9876
1
).
3
). Use the
Before Starting
on the
4
), one on each
5
)
7
).
© 2018 - 2020 Extron Electronics All rights reserved.
All trademarks mentioned are the property of their respective owners.
2 2 2
Attaching the SMK 1 to the Glass
Figure 3.
SMK 1
e
e
5 5 5
6 6 6
Back View
7 7 7
Mounting the TLP Pro 525M
Figure 4.
www.extron.com
1 1 1
e
e
4 4 4
Mounting Plate
3 3 3
TLP Pro 525M
5 5 5
e
68-3112-01 Rev. B
