NOTE: The glass frame and barrier screen should be in place before installing the grills.

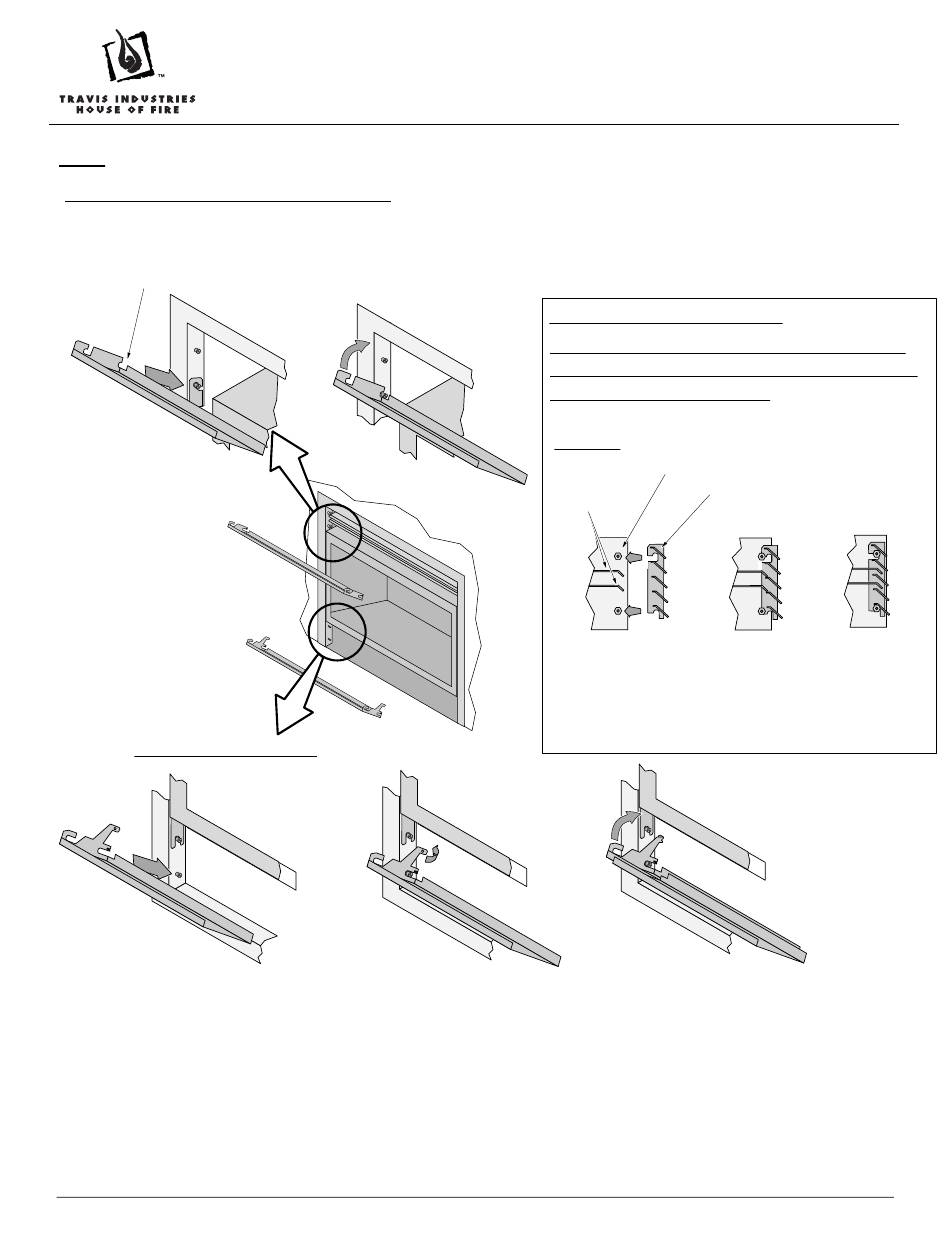

Upper Grill Installation (FPX and Avalon)

Hold the grill at an angle and insert the
lower slot over the lower bushing on
the fireplace (both sides). The grill fits
inside the tabs for the barrier screen.

Lower Grill Installation

Hold the grill at an angle and insert the lower
slot over the bushing on the fireplace (both
sides). You may need to press on the grill to
get the tab over the bushing (this prevents
the grill from accidentally falling off).
Page 1 of 2
564 Grill Installation
SKU # 96200804, 96200808
Swing the grill upwards to engage the upper slot. You
will need to lift the grill slightly to get it over the bushing.
Once in place the grill is held in place by gravity.
Bend the tab outward on
both sides. This is the
end-stop for the lower grill,
it allows the grill to swing
forward.
3/26/15

Upper Grill Installation (Lopi)

NOTE: The upper grill is difficult to install the first time - be
patient, after you install it, you will know how it installs and it
will be much easier the second time.
SIDE VIEW
Mounting Stud
Heat Shields
Upper Grill
(on fireplace)
You may need to
Position the grill
push in and
so the slots on
upwards on the
the grill align with
grill as it inserts.
the mounting
studs.
Swing the grill upwards to engage the upper slot.
The grill fits inside the tabs for the barrier screen.
You will need to lift the grill slightly to get it over the
bushing. Once in place the grill is held in place by
gravity.
© Travis Ind. 17601466
The grill, when
fully inserted,
will slide down
and "click" into
place.
