Travis Industries 564 HO GS Installation Manual
Built-in direct vent fireplace
Hide thumbs
Also See for 564 HO GS:
- Installation manual (58 pages) ,
- Owner's manual (28 pages) ,
- Installation instructions manual (9 pages)
Table of Contents
Advertisement
Quick Links
WARNING:
If the information in these instructions is not followed exactly, a fire or
explosion may result causing property damage, personal injury or loss of life.
-
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
-
Installation and service must be performed by a qualified installer, service agency or the gas
supplier.
This appliance may be installed in
an aftermarket permanently
located, manufactured home (USA
only) or mobile home, where not
prohibited by local codes.
This appliance is only for use
with the type(s) of gas indicated
on the rating plate. A conversion
kit is supplied with the appliance.
Installation Manual
Installer:
After installation give this manual to the home-
owner and explain operation of this heater.
Copyright 2011, T.I.
$10.00
100-01267_000
564 HO GS
Fireplace
Listed by
AS 4553-2008
GMK10022
IAPMO-R&T OCEANA
Built-In Direct Vent Fireplace
Natural Gas or Propane
Residential or Mobile Home
Dragon Wholesaling Pty. Ltd.
Unit 2, 16 Lexington Drive
Bella Vista NSW 2153
4110505
Australia
Advertisement
Table of Contents
Related Manuals for Travis Industries 564 HO GS
Summary of Contents for Travis Industries 564 HO GS

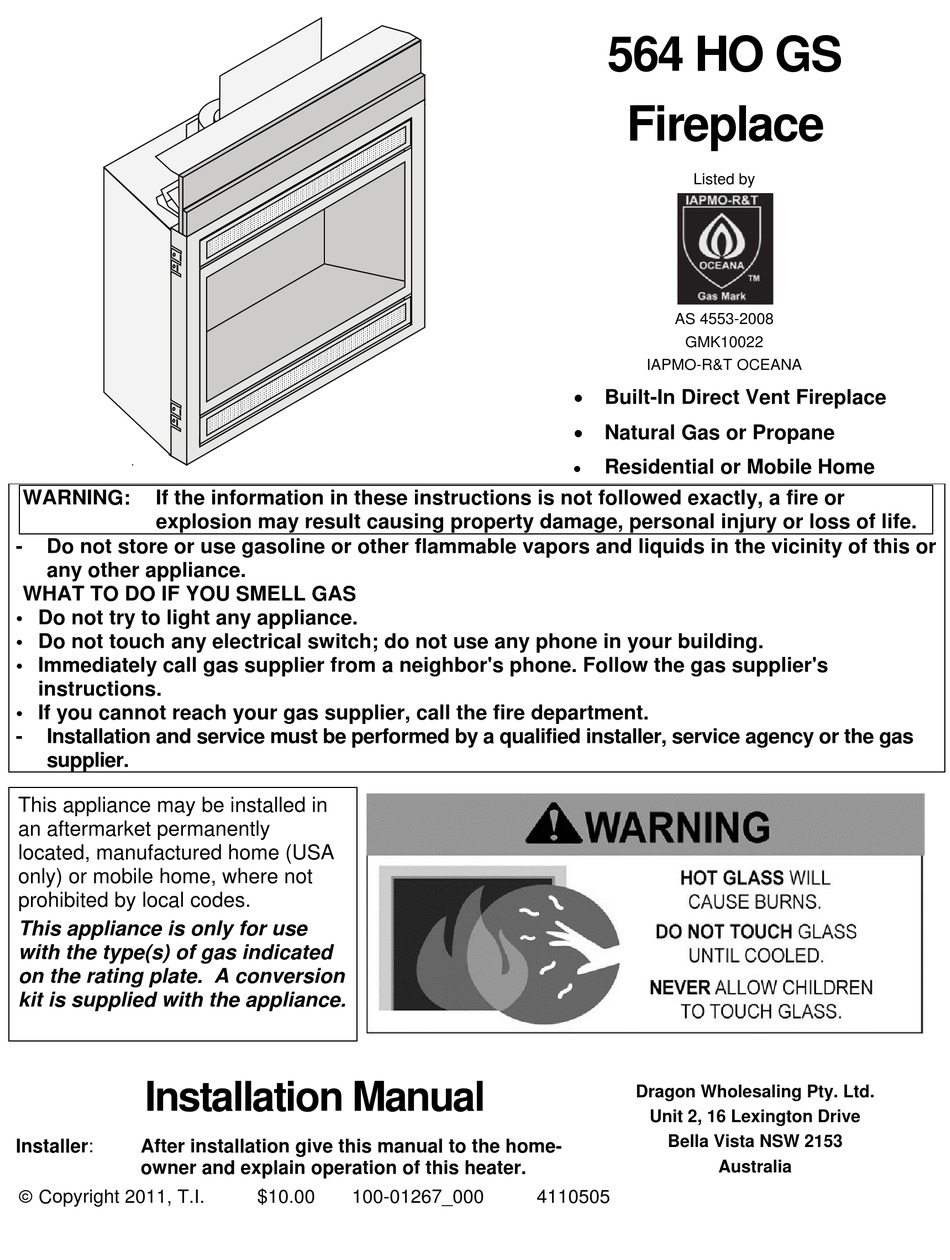

- Page 1 564 HO GS Fireplace Listed by AS 4553-2008 GMK10022 IAPMO-R&T OCEANA Built-In Direct Vent Fireplace Natural Gas or Propane Residential or Mobile Home WARNING: If the information in these instructions is not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life.
-
Page 2: Overview
Introduction Overview This manual details the installation requirements for the 564 HO GS fireplace. For operating and maintenance instructions, refer to the 564 HO GS Owner's Manual. © Travis Industries 4110505 100-01263_000... -
Page 3: Table Of Contents
Table of Contents Intake Restrictor Adjustment ......20 Overview ............2 Diffuser Plate Adjustment ......21 Installation Options .......... 6 Vent Configurations with Horizontal Heating Specifications ........6 Termination (EmberFyre Burner only) ..22 ... -
Page 4: Safety Warnings
Safety Precautions Safety Warnings: Failure to follow all of the requirements may result in property damage, bodily injury, or even death. This unit must be installed by a qualified installer to prevent the possibility of an explosion. This appliance must be installed in accordance with all local codes, if any;... - Page 5 Safety Precautions Safety Warnings (continued): Allow the heater to cool before carrying out any maintenance or cleaning. Operate the heater according to the instructions included in this manual. If the main burners do not start correctly turn the gas off and call your dealer for service. ...
-
Page 6: Installation Options
Installation for qualified installers only) Installation Options Residential or Mobile Home Raised or Floor Placement Straight or Corner Placement Internal or External Chase Flush or Recessed Face Bedroom Approved Heating Specifications Natural Gas Propane Approximate Heating Capacity (in square meters)* Up to 158 Up to 158... -
Page 7: Additional Items Required Direct Vent
Installation for qualified installers only) 564 HO Thimble (250-02318) Additional Items Required Direct Vent Gas Line Equipment Electrical Equipment This Fireplace Requires a Burner Kit, Firebacks, Logs/Media, and Face/Grill Burner Style EmberFyre™ Burner 96900116 Requires 564 Ceramic Firebacks Firebacks: 96100179... -
Page 8: Installation Overview
Installation for qualified installers only) Installation Overview All requirements below must be met. See the section “Vent Requirements” See the section “Mantel Requirements” See the section “Approved Vent Configurations” Drywall Drywall Side 12” min. Wall 305mm Nailing brackets See the section “Minimum Framing Dimensions”... -
Page 9: Fireplace Placement Requirements
Installation for qualified installers only) Fireplace Placement Requirements The fireplace requires a 1/2" (13mm) clearance from the angled sides of the fireplace to the framing members. No material (insulation, framing, etc.) may be placed into this area. Fireplace must be installed on a level surface capable of supporting the fireplace and vent ... -
Page 10: Minimum Framing Dimensions
Installation for qualified installers only) Minimum Framing Dimensions Minimum enclosure height = 56” (1422.4 mm) Route the electrical line to a position to the left rear of the fireplace. 36.75” 936mm The on/off switch/thermostat wire (if used) should be routed to a location near the left front of the fireplace. -
Page 11: Nailing Brackets
Installation for qualified installers only) Nailing Brackets There are 4 nailing brackets on the front of the fireplace. Follow the directions below to prepare the nailing brackets. Once in place, nail or screw the nailing brackets to the framing. NOTE: Additional nailing brackets are provided along the base of the fireplace. -
Page 12: Corner Installations
Installation for qualified installers only) Corner Installations A typical 45° installation uses the framing dimensions shown in the illustration below (NOTE: all clearances still apply). Minimum 1/2" (13mm) C l e arance 14-1/4" 362mm 44-1/2" Min. 1130mm © Travis Industries 4110505 100-01263_000... -
Page 13: Gas Line Requirements
Installation for qualified installers only) Gas Line Requirements The gas line must be installed in accordance with all local codes, if any; if not, follow ANSI 223.1 and NFPA 54(88), in Canada follow CSA B149.1 and the requirements listed below. ... -
Page 14: Gas Line Location
Installation for qualified installers only) Gas Line Location A 6” (152mm) flex tube and shutoff valve are included with the fireplace. The shutoff valve accepts a ½” MPT. 8-3/4” 222mm Right Side Gas Inlet (preferred) The gas valve inlet is located 2-½” 13-3/4”... -
Page 15: Electrical Connection (Required)
Installation for qualified installers only) Electrical Connection (required) The electrical line to the grounded receptacle inside the fireplace must be installed by a qualified installer and must meet all local codes. Make sure the household breaker is shut off prior to working on any electrical lines. ... -
Page 16: Optional Wall Switch Or Thermostat Installation
Installation for qualified installers only) Optional Wall Switch or Thermostat Installation Do not connect 120/240 VAC to the gas control valve or wiring system of this fireplace. The switch and wiring must be installed by a qualified installer. This fireplace includes an optional wall switch (with wire) to OPTIONAL WALL SWITCH operate the fireplace burner without accessing the internal (included with fireplace) -
Page 17: Vent Requirements
Installation for qualified installers only) Vent Requirements The gas appliance and vent system must be vented directly to the outside of the building, and never be attached to a chimney serving a separate solid fuel or gas-burning appliance. Each direct vent gas appliance must use its own separate vent system. -
Page 18: Approved Vent
Installation for qualified installers only) Approved Vent May use 6-5/8” (168mm) if terminated vertically. Horizontal termination configurations use 8" (203mm) diameter Simpson Dura-Vent Model Direct- Vent Pro (or GS)*. * Other vent may be approved with this fireplace. Check with the vent manufacturer for details. ... -
Page 19: Approved Vent Configurations
Installation for qualified installers only) Approved Vent Configurations Restrictor Position Intake and exhaust restrictors are built into the appliance to adjust the flow rate of intake air and exhaust gases. Depending upon the vent configuration, you may be required to adjust the restrictor positions. -
Page 20: Intake Restrictor Adjustment
Installation for qualified installers only) Intake Restrictor Adjustment The intake restrictor is shipped with the burner. See the burner installation instructions for details on installing this component. Make sure to adjust the intake restrictor to the position indicated on the vent configuration page. To adjust the restrictor, loosen the two screws securing the restrictor to the firebox and slide it to the correct position as shown below. -
Page 21: Diffuser Plate Adjustment
Installation for qualified installers only) Diffuser Plate Adjustment Certain vent configurations require the diffuser plate to be adjusted (refer to the approved vent configuration charts for details). Position # 1 is stock (bent). Position # 2 is flattened. Change the diffuser to position #2 as follows: 1. -
Page 22: Vent Configurations With Horizontal Termination (Emberfyre Burner Only)
Installation for qualified installers only) Vent Configurations with Horizontal Termination (EmberFyre Burner only) The termination must fall within the shaded area shown in the chart. Use the indicated restrictor and diffuser positions. Up to four elbows (45° or 90°) may be used. ... -
Page 23: Vent Configurations With Vertical Termination (Emberfyre Burner Only)
Installation for qualified installers only) Vent Configurations with Vertical Termination (EmberFyre Burner only) The termination must fall within the shaded area shown in the chart. Use the indicated restrictor and diffuser positions. Up to four elbows (45° or 40' max (12m) 40' max (12m) 90°) may be used. -
Page 24: Termination Requirements
Installation for qualified installers only) Termination Requirements Venting terminals shall not be recessed into a wall or siding. Minimum 9" (229mm) clearance from any door or window Roof Minimum 12" (305mm) above any grade, veranda, porch, deck or balcony Surface Minimum 1"... -
Page 25: Hearth Requirements
Installation for qualified installers only) Hearth Requirements Do not build a hearth more than 1" (25mm) above the baseplate (this area must Floor Mounted remain clear for the access door). Fireplaces If installed near carpet or other combustible flooring, the fireplace must be raised so the base of the unit is above the carpet surface or flooring material. -
Page 26: Facing Requirements
Installation for qualified installers only) Facing Requirements The included fiber board is required and must remain attached to the fireplace (see “a” below). Non-combustible facing must extend 3” (77mm) above the face of the fireplace (see “c” below). Drywall or other combustible may not be place on top of this non-combustible area. -
Page 27: Facing Overview
Installation for qualified installers only) Facing Overview Upgrade faces are available for this fireplace and may influence facing installation. Consult with your Travis Dealer if you are using an upgraded face. An optional non-combustible facing may be installed on the fireplace. Use the guidelines below to determine the location (also see the following pages for detailed diagrams. -
Page 28: Thin Facing Installation (Tile, Marble, Or Other Non-Combustible Under 1" (25Mm) Thick)
Installation for qualified installers only) Thin Facing Installation (tile, marble, or other non-combustible under 1" (25mm) thick) Upgrade faces are available for this fireplace and may influence facing installation. Consult with your Travis dealer if you are using an upgraded face. Attach the facing to this edge of the fireplace. -
Page 29: Thin Facing Installation (Tile, Marble, Under 1" (25Mm) Thick) - Side View
Installation for qualified installers only) Thin Facing Installation (tile, marble, under 1" (25mm) thick) — Side View Raised Fireplace Tile or other facing under 1’’ (25mm) (with no Hearth) thick. Face SIDE OF FIREPLACE Note how the facing extends 1’’ (25mm) above the base of the fireplace. -
Page 30: Thick Facing Installation (Stone, Brick, Or Other Non-Combustible Over 1" (25Mm) Thick)
Installation for qualified installers only) Thick Facing Installation (stone, brick, or other non-combustible over 1" (25mm) thick) If using a Fireplace Xtrordinair (FPX) arched face, see "Thick Facing with a Fireplace Xtrordinair Arched Faces" on page 31. Do not install masonry or other material in front of the fireplace. -
Page 31: Thick Facing With Fireplace Xtrordinair (Fpx) Arched Faces
Installation for qualified installers only) Thick Facing with Fireplace Xtrordinair (FPX) Arched Faces The following illustration shows facing considerations for those fireplaces utilizing FPX arched faces. The facing must be non-combustible and over 1" (25mm) in depth. Masonry Line The Fireplace Xtrodinair 564 Masonry Template is recommended for masonry installation (sku 98500674). -
Page 32: Thick Facing Installation - Side View
Installation for qualified installers only) Thick Facing Installation — Side View Floor-Mounted Fireplace (with Hearth) Masonry or other non-combustible over 1’’ (25mm) thick SIDE OF FIREPLACE Face Hearth (note how it extends under the face - max. 1’’ (25mm) thick). The fireplace may be raised to accommodate thicker hearth materials. -
Page 33: Mantel Requirements
Installation for qualified installers only) Mantel Requirements Combustible Mantels Use the table below to determine the maximum mantel depth allowed. The mantel depth (measured from the face of the fireplace) must fall in the shaded portion of the table. ... -
Page 34: Steps For Finalizing The Installation
Installation for qualified installers only) Steps for Finalizing the Installation Remove the glass (see page 36). NOTE: If using propane (LP) convert the appliance prior to installing the logs. We recommend you purge the gas line at this time (with the glass removed). This allows gas to be detected once it enters the firebox, ensuring gas does not build up. -
Page 35: Air Shutter Adjustment
Installation for qualified installers only) Check the air shutter following the directions below. Air Shutter Adjustment Let the heater burn for fifteen minutes (make sure the logs and glass are in place). The flames should be yellow with no sooting. Adjust the air shutter, if necessary, to achieve the correct looking flame. Correct Not Enough Air Too Much Air... -
Page 36: Glass Frame Removal And Installation
Installation for qualified installers only) Glass Frame Removal and Installation Warning: The appliance must be completely cool before removing the glass. Warning: Do not strike or slam the glass. Depending on the face being used, either: 1) Swing the access door down and remove the top grill, or 2) Remove the face by unscrewing it or lifting it off -- see the instructions included with the face for details. -
Page 37: Glass Frame Removal And Installation (Continued)
Installation for qualified installers only) Glass Frame Removal and Installation (continued) The latch can come loose from glass frame anchor. This occurs when it is turned 1/4 turn when it is disengaged. Follow the directions below to re-install the latch if it becomes loose. Hold the latch at an angle and insert it into the slot on the glass frame anchor. -
Page 38: Lp Conversion Instructions
Optional Equipment for qualified installers only) LP Conversion Instructions WARNING This conversion kit shall be installed by a qualified service agency in accordance with the manufacturer’s instructions and all applicable codes and requirements of the authority having jurisdiction. If the information in these instructions is not followed exactly, a fire, explosion or production of carbon monoxide may result causing property damage, personal injury or loss of life. - Page 39 Optional Equipment for qualified installers only) 2. Replace the orifices as shown below. Rear Burner Orifice Front Burner Orifice Thread Sealant 15/16" 24mm 1/2" Wrench Orifice ID Orifice Front Rear 1.1mm 3. Install the LP burner bracket and manifold seal plate as shown below. These components are shipped with the fireplace.
- Page 40 Optional Equipment for qualified installers only) 4. Remove the pilot orifice following the instructions below. Replace with the propane pilot orifice. Lift the pilot hood Remove the orifice and replace with the LP orifice. Screw the off the pilot orifice all the way in and replace the pilot hood. assembly.
- Page 41 Optional Equipment for qualified installers only) © Travis Industries 4110505 100-01263_000...
-
Page 42: Index
Index Index Additional Items Required ........7 Minimum Framing Dimensions ..........10 Air Shutter Adjustment ......... 35 Nailing Brackets ........... 11 Altitude Considerations ........17 Overview .............. 2 Approved Vent Configurations ......19 Packing List ............6 Approved Vent ............. 18 Raised Fireplaces ..........
