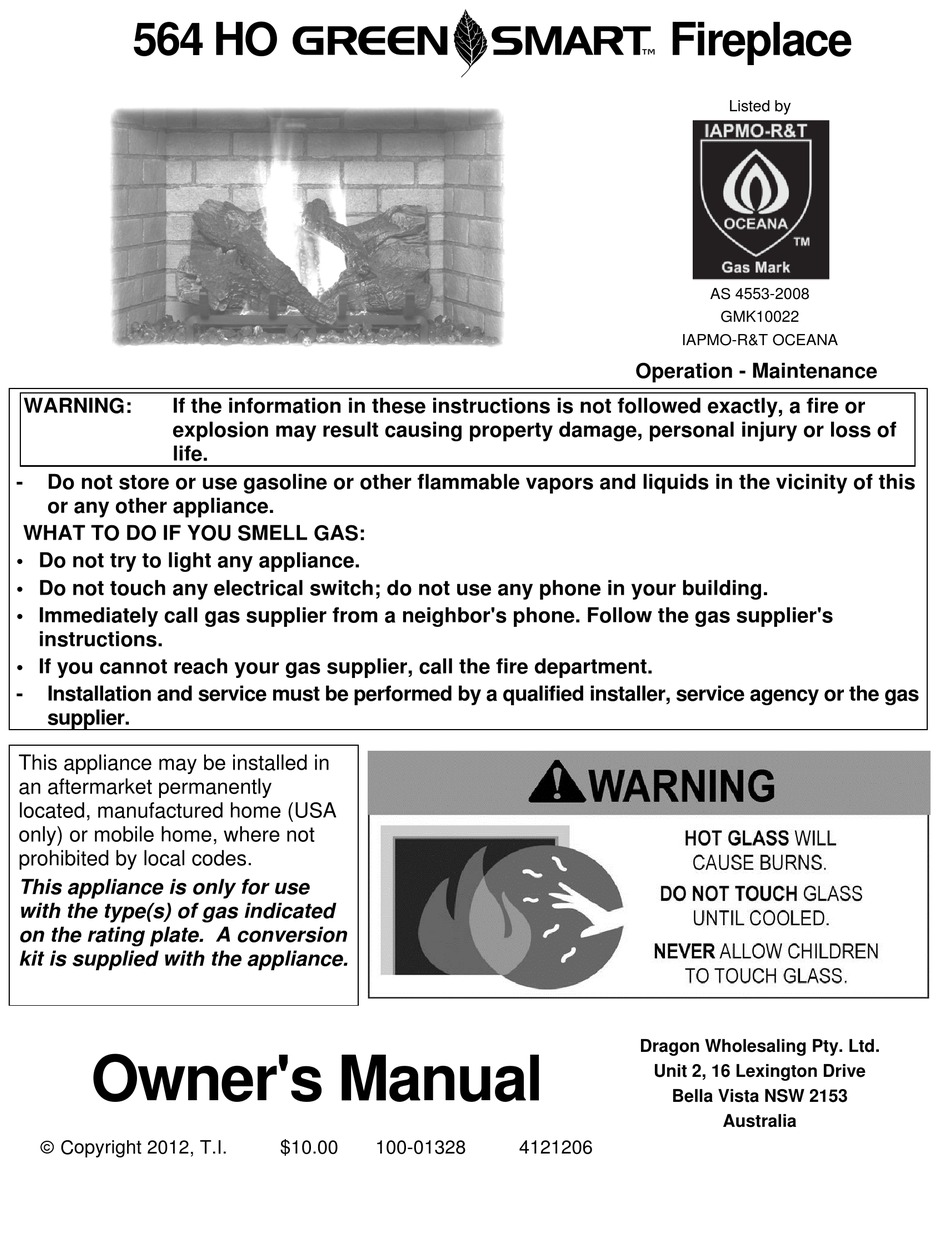

564 HO
WARNING:
If the information in these instructions is not followed exactly, a fire or
explosion may result causing property damage, personal injury or loss of
life.
-
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
-
Installation and service must be performed by a qualified installer, service agency or the gas
supplier.
This appliance may be installed in
an aftermarket permanently
located, manufactured home (USA
only) or mobile home, where not
prohibited by local codes.
This appliance is only for use
with the type(s) of gas indicated
on the rating plate. A conversion
kit is supplied with the appliance.
Owner's Manual
Copyright 2012, T.I.
$10.00
100-01328
Fireplace
IAPMO-R&T OCEANA
Operation - Maintenance
Dragon Wholesaling Pty. Ltd.
Unit 2, 16 Lexington Drive
Bella Vista NSW 2153
4121206
Listed by
AS 4553-2008
GMK10022
Australia
Advertisement
Table of Contents
Related Manuals for Travis Industries 564 HO
Summary of Contents for Travis Industries 564 HO
- Page 1 564 HO Fireplace Listed by AS 4553-2008 GMK10022 IAPMO-R&T OCEANA Operation - Maintenance WARNING: If the information in these instructions is not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
-
Page 2: Introduction
Introduction Introduction We welcome you as a new owner of a 564 HO gas fireplace. This manual details operation and maintenance of this fireplace. Please familiarize yourself with the Owner's Manual before operating your heater and save the manual for future reference. -
Page 3: Table Of Contents
Heating Specifications Natural Gas Propane Approximate Heating Capacity (in square meters)* Up to 158 Up to 158 Maximum MJ Input Per Hour 35.0 35.0 Heating capacity will vary with floor plan, insulation, and outside temperature. © Travis Industries 4121206 100-01328... - Page 4 Immediately call a qualified vicinity of this heater. service technician to inspect the appliance and to replace any part of the control system and any gas control that has been under water. © Travis Industries 4121206 100-01328...
- Page 5 Young children no responsibility of any should be supervised when they consequential damage(s). are in the same room as the heater. © Travis Industries 4121206 100-01328...
-
Page 6: Before You Begin
Verify the power backup and control light batteries are installed (see page 14). Display Fahrenheit or Celsius With the system in the “OFF” position, press both the MODE and THERMOSTAT buttons simultaneously to toggle between Fahrenheit (F) and Celsius (C). Figure 2 © Travis Industries 4121206 100-01328... -
Page 7: Direct Operation
Accent Light This fireplace has a built-in accent light that may be turned on and off and dimmed to your preference. Turn the knob to achieve the desired light output. HIGH ACCENT LIGHT HIGH © Travis Industries 4121206 100-01328... -
Page 8: Adjusting The Blower Speed
Frequent On / Off Operation – if you are frequently turning the fireplace on and off, you may wish to leave it in continuous pilot. This allows the burner to turn on more quickly, without pilot ignition delay. CONTINUOUS PILOT GREEN SMART PILOT © Travis Industries 4121206 100-01328... -
Page 9: Remote Operation
When you change thermostat target settings the fireplace will not beep. NOTE: When the receiver batteries start to get low, the receiver will beep intermittently. When the batteries are nearly depleted, the receiver will no longer beep. See “Receiver Batteries” on page 13). © Travis Industries 4121206 100-01328... -
Page 10: Manual On-Off / Smart Thermostat / Standard Thermostat
Figure 8 NOTE: if the transmitter batteries go dead while in thermostat setting (standard or smart), the appliance will shut off after approximately 24 hours. © Travis Industries 4121206 100-01328... -
Page 11: Mode Controls (Flame, Comfort Control)
Comfort Control Mode (see Figure 11). The center display will display either “ON” or “OFF”. This is the comfort control read-out. Use the up button When in comfort to turn on, down button to turn control mode, this off (2 settings). icon will appear darkened. Figure 11 © Travis Industries 4121206 100-01328... -
Page 12: Normal Operating Sounds
This appliance has several areas that reach high temperatures. Dust or other particles on these areas may burn and create an odor. This is normal during start-up. You may notice the smell is more acute if the appliance was left idle for a long period. © Travis Industries 4121206 100-01328... -
Page 13: Low Battery Indicator
Clean the plated surface with denatured alcohol and a soft cloth (with the fireplace cool). Other cleaners may leave a film that may become etched into the surface. © Travis Industries 4121206... -
Page 14: Battery Replacement
Install the four AA batteries (see illustration below). The AA batteries act as a power backup in case the household (AC) power goes out and are required for operation. Install three AAA batteries into the remote (see illustration below). Synchronize the transmitter to the IFC (see page 6). © Travis Industries 4121206 100-01328... -
Page 15: Accent Light Replacement
1. Remove the exhaust manifold from the roof of the fireback. The 2 rear screws are in slots, and do not need to be removed. Remove the 2 front screws from the exhaust manifold, then tilt the manifold down and slide it forward to remove. © Travis Industries 4121206 100-01328... - Page 16 3. Pull down the upper accent light enclosure from the roof of the firebox, as shown below. Note the 3 screws holding the bulb assembly in place. 4. Remove the 3 screws holding the bulb assembly in the accent light enclosure. Remove the bulb assembly from the enclosure. © Travis Industries 4121206 100-01328...
-
Page 17: Yearly Service Procedure
Monitor blower operation. Remove any debris or vegetation near the vent termination. Contact your dealer if any sooting or deterioration is found near the vent termination. Venting system should be examined by a qualified agency. © Travis Industries 4121206 100-01328... -
Page 18: Grill Installation And Removal
(this prevents it allows the grill to s wing bus hing. Once in place the grill is the grill from accidentally falling off). forward. held in place by gravity. © Travis Industries 4121206 100-01328... -
Page 19: Face Installation And Removal
Some fireplaces have a face that fits over the glass frame. The face can be removed following the directions below. Phillips Screwdriver Four screws hold the face in place. The screws are accessed through the grills on the face. © Travis Industries 4121206 100-01328... -
Page 20: Glass Frame Removal And Installation
3) Lift the glass frame slightly and attach the lower latches. NOTE: Make sure the glass frame is fully in place -- it should be flush with the front of the fireplace when installed correctly. © Travis Industries 4121206 100-01328... -
Page 21: Glass Frame Removal And Installation (Continued)
Top of Firebox Glass Frame Anchor Note how the washer on the latch fits behind the flange on the glass frame anchor. Once fully inserted, turn the latch until it is upright. © Travis Industries 4121206 100-01328... -
Page 22: Log Set Installation
This fireplace has several log or media options. Refer to the instructions included with the logs or media for installation and removal. Glass Cleaning The glass may be cleaned with a non- abrasive cleaner. WARNING: do not operate the fireplace without the glass frame in place. © Travis Industries 4121206 100-01328... -
Page 23: Troubleshooting Table
Replace the AA batteries (see page 14) Comfort Control Does not Work The logs or coals are placed incorrectly See "Log Set Installation" Thin Layer of Soot Improper air shutter adjustment Adjust Air Shutter - contact your dealer Covers the Glass © Travis Industries 4121206 100-01328... -
Page 24: Wiring Diagrams
Rheostat Replacement Parts List Caution: Use only Travis Industries replacement parts. Do not use substitute materials. Warning: Do not operate appliance with the glass front removed, cracked, or broken. Replacement of the glass should be done by a licensed or qualified service person. -
Page 25: Conditions & Exclusions
Dragon Wholesaling Pty. Ltd. Unit 2, 16 Lexington Drive Bella Vista NSW 2153 Australia. Dragon Wholesaling warrants this gas appliance (appliance is defined as the equipment manufactured by Travis Industries, Inc.) to be defect-free in material and workmanship to the original purchaser from the date of purchase as follows: Check with your dealer in advance for any costs to you when arranging a warranty call. -
Page 26: Index
Starting the Fireplace for the First Time .... 6 Glass Frame Removal and Installation .... 20 Troubleshooting Table ........23 Grill Installation and Removal ......18 Wiring Diagrams ..........24 Heating Specifications ........3 Yearly Service Procedure ........ 17 © Travis Industries 4121206 100-01328...
