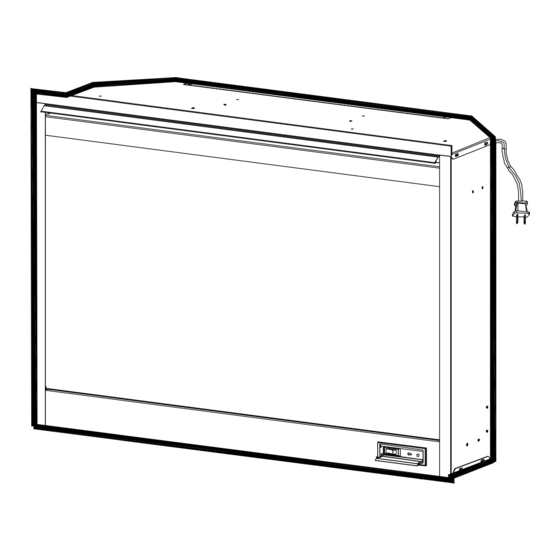

564 Electric Fireplace
Owner's Manual
Quality checked by:
Valued Customer,
We are pleased that you have chosen to purchase an
electric fireplace by Travis Industries Inc. Over the years,
valuable memories will occur around the warmth and comfort
of your hearth. Thank you for allowing our product to be the
backdrop for those special moments.
100-01192_000
1

Advertisement

loading

Related Manuals for Travis Industries 564

Summary of Contents for Travis Industries 564

  • Page 1 Valued Customer, We are pleased that you have chosen to purchase an electric fireplace by Travis Industries Inc. Over the years, valuable memories will occur around the warmth and comfort of your hearth. Thank you for allowing our product to be the backdrop for those special moments.

  • Page 2: Table Of Contents

    CONTENTS PAGE 4 – 6 Important Instructions PAGE 8 Fireplace Installation PAGE 12 Operation PAGE 18 Maintenance PAGE 22 Warranty...
  • Page 3 4. If you have any technical questions or concerns regarding the operation of your fireplace, or require service contact your Travis Industries, Inc. dealer before returning the product to the point of purchase. You can find a Travis dealer at...

  • Page 4: Important Instructions

    IMPORTANT INSTRUCTIONS PLEASE RETAIN THIS USER’S GUIDE FOR FUTURE REFERENCE When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1. Read all instructions before using the Fireplace. 2.
  • Page 5 Never locate heater where it may fall into a bathtub or other water container. 8. Do not run the cord under carpeting. Do not cover cord with throw rugs, runners, or the like. Arrange cord away from traffic area and where it will not be tripped over.
  • Page 6 If you have any questions about our products please have the catalogue/model and serial numbers available upon calling your Travis Industries, Inc. dealer. The catalogue/model and serial number are located on the back of the unit. Model Number...
  • Page 7 NOTE A 15amp, 120 volt alternating current (VAC) circuit is required. A dedicated circuit is preferred but not essential in all cases. A dedicated circuit will be required if, after installation, the circuit breaker trips or fuse blows on a regular basis when the heater is operating.

  • Page 8: Fireplace Installation

    The fireplace does not require any additional venting. ADDITIONAL ITEMS REQUIRED FOR INSTALLATION This fireplace requires a Travis Industries (Avalon, Lopi, or Fireplace Xtrordinair) face or trim kit to finalize the installation. Do not operate this fireplace without the face or trim.
  • Page 9 26 3/4” 31 7/8” 11 3/4” NEW WALL CONSTRUCTION 1. Select a suitable location that is not susceptible to moisture and is away from drapes, furniture and high traffic. 2. Place the fireplace in the desired location to see how it will look in the room.
  • Page 10 NOTE: This does not apply to fireplaces using a Travis pre-built mantel. When the 564 E is installed into a framed-in wall with square framing and drywall a gap will appear between the face and drywall. See the following page for two methods used to eliminate this gap.
  • Page 11 ARCHED FACE INSTALLATION IN FRAMED-IN WALL (CONT.) INSTALLATION OPTION “A” (SQUARE FRAMING & DRYWALL WITH TILE FACING) This option allows the installer to use the standard framing dimensions (31-7/8” w, 26-3/4” t, 11-3/4” d) by installing tile over the drywall to eliminate the gap.

  • Page 12: Operation

    OPERATION ELECTRIC FIREPLACE MANUAL CONTROL The manual controls for the fireplace are located in the lower right hand corner. NOTE: If using a fireplace face, you will need to remove the face to access the controls on the fireplace. The face is held in place with short hooks. With the fireplace cool, lift the face upwards and pull forwards to remove.
  • Page 13 5 minutes and plugging the unit back in. CAUTION If you need to continuously reset the heater, unplug the unit and call your Travis Industries, Inc. dealer. You can find a Travis dealer at www.travisproducts.com. Please have your model and serial number ready when calling.
  • Page 14 INITIALIZING THE REMOTE CONTROL 1. Plug cord into 120 volt wall outlet. 2. Ensure the Main On/Off switch located in the switch box on the fireplace in the lower right hand corner is in the position. 3.Set the 3 position manual control to the Remote position (right position).
  • Page 15 Temperature Temperature Down Dimmer Dimmer Down Flame Speed Flame Speed Down Batteries Sleep Timer SleepTimer Down Purifire Low Purifire High Speed Speed Purifire Flame & Heat Child On/Off On/Off Lock FLAME/HEAT ON/OFF BUTTON Press the “Flame/Heat On/Off “button to turn the Flame/ Heat function ON.
  • Page 16 NOTE To turn the Flame/Heat and Purifire™ “OFF” at the same time, press both control buttons simultaneously. SET TEMPERATURE 1. Press “Flame Heat On/Off” button to turn fireplace 2. Press “Temperature Up” to raise thermostat. 3. Press “Temperature Down” to lower thermostat. Press both “Temperature Up”...
  • Page 17 Unlocked Locked Figure 6 Child Locked Switch PURIFIRE™ The Purifire™ includes a high efficiency filter to help improve the quality of air. 1. Press the button for the Purifire™ function. 2. Press the “Purifire Low Speed” button or the “Purifire High Speed” button to select LOW or HIGH.

  • Page 18: Maintenance

    MAINTENANCE WARNING Disconnect power before attempting any maintenance or cleaning to reduce the risk of fire, electric shock or damage to persons. If using a fireplace face, you will need to remove the face to access the fireplace. The face is held in place with short hooks.
  • Page 19 4.Pull the front edge of the plastic ember bed or plastic grate up and forward until the rear tab releases from the ledge located at the bottom of the mirror. IMPORTANT Only handle the logset by the emberbed. Upper Upper Light Bulbs Panel Front...
  • Page 20 NOTE Ensure the logset is installed tightly under the back ledge to prevent light leakage. 11. Slide front glass back into position and attach trim. UPPER LIGHT BULB REQUIREMENTS Quantity of 2 clear chandelier or candelabra bulbs with an E-12 (small) socket base, 15 watt rating. DO NOT EXCEED 15 WATTS PER BULB To access the upper light bulb area: 1.
  • Page 21 Fireplace Air Filter FIGURE 9 GLASS CLEANING The glass is cleaned in the factory during the assembly operation. During shipment, installation, handling, etc., the glass may collect dust particles; these can be removed by dusting lightly with a clean dry cloth. To remove fingerprints or other marks, the glass can be cleaned with a damp cloth.

  • Page 22: Warranty

    Products to which this limited warranty applies This limited warranty applies to your newly purchased Travis Industries, Inc. 564 Electric fireplace and newly purchased face or trim kit. This limited warranty applies only to purchases made in any province of Canada except for Yukon Territory, Nunavut, or Northwest Territories or in any of the 50 States of the USA (and the District of Columbia).
  • Page 23 Products, other than face or trim kits, covered by this limited warranty have been tested and inspected prior to shipment. Subject to the provisions of this warranty, Travis Industries, Inc. warrants such products to be free from defects in material and workmanship for a period of 5 years from the...
  • Page 24 Limited warranty service requires a proof of purchase of the product. What Travis Industries, Inc. will do in the event of a defect In the event a product or part covered by this limited warranty is proven to be defective in material or workmanship during (i)
  • Page 25 30 miles (48 km) from the closest service depot of a Travis Industries, Inc. dealer or service agent; and (ii) the purchaser is solely responsible for providing clear access to all serviceable parts of the product.
  • Page 26 Inc. then-current rates for such services. What Travis Industries, Inc. and its dealers and service agents are also not responsible for: IN NO EVENT WILL TRAVIS INDUSTRIES, INC. , OR ITS DIRECTORS, OFFICERS, OR AGENTS, BE LIABLE THE PURCHASER OR ANY THIRD PARTY,...
  • Page 27 WILL TRAVIS INDUSTRIES, INC. , OR ITS OFFICERS, DIRECTORS, OR AGENTS BE LIABLE FOR ANY DIRECT LOSSES, COSTS, OR DAMAGES THAT EXCEED THE PURCHASE PRICE OF THE PRODUCT. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO THE PURCHASER.
