Packing List
•
Face
•
Bottom Shield
•
(5) Screws (for bottom shield)
•
(2) Face Mounting Brackets
•
(6) Screws (for face mounting brackets)
Care and Cleaning of Brushed Aluminum
The brushed aluminum stains easily. Wear clean gloves if handling the brushed aluminum inner frame.
If the brushed aluminum requires cleaning, use a soft cloth with glass cleaner. If the aluminum requires
extensive cleaning, use the included scotch-brite™ to lightly brush the aluminum in a linear fashion with the
grain. Use low- tack (blue) masking tape along the corners to prevent brushing against the grain.

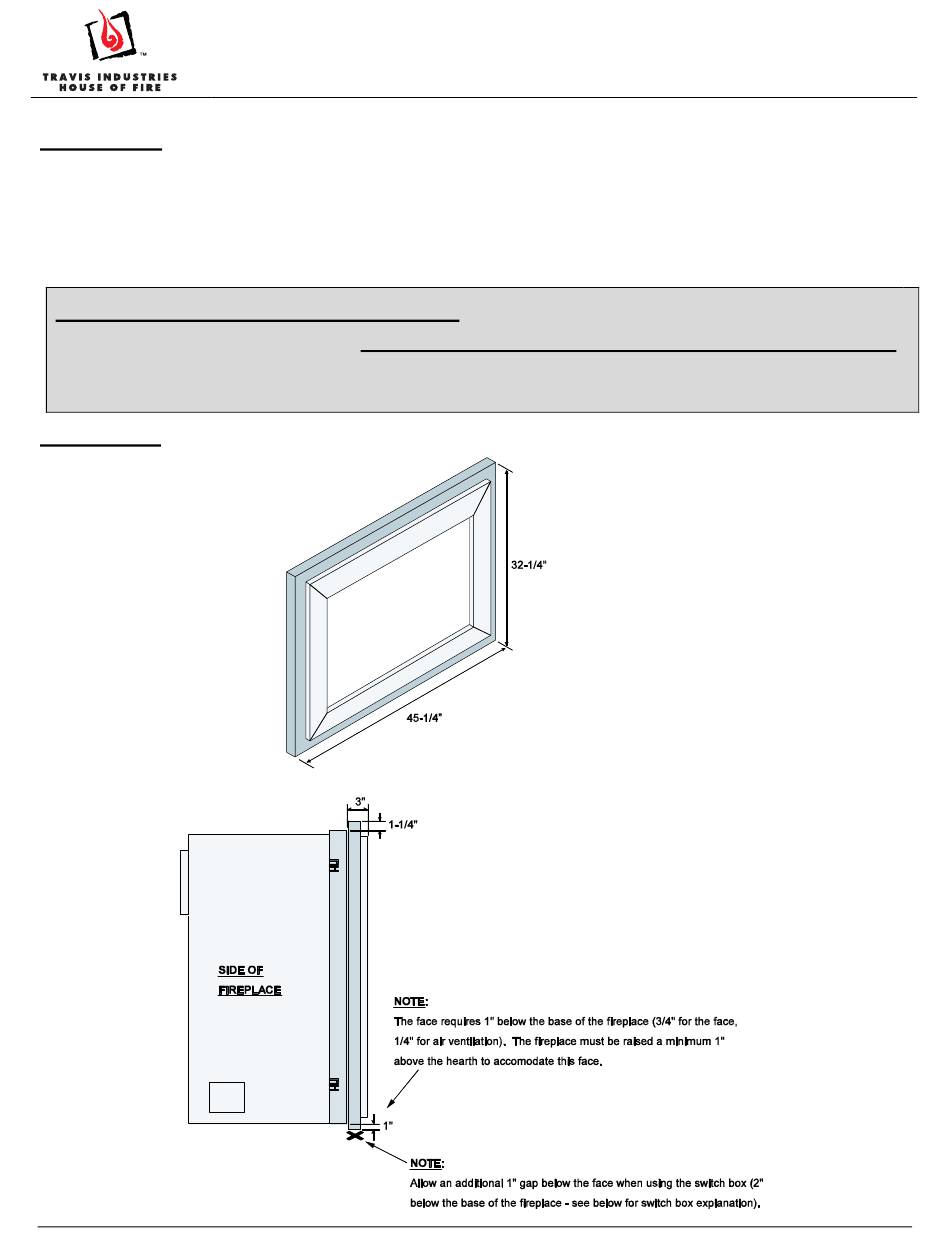

Face Details
Page 1 of 8
Shadowbox Face (564) Installation Instructions
Satin 95400424
17601627 - 8/20/10
Nickel 95400423
•
Switch Box Wire Harness
•
Switch Box Assembly
•
(2) Screws
•
(2) Wire Hanger Clips
•
Double-Back Tape
•
Scotch-Brite™ Pad (for Nickel only)
© Travis Industries, Inc.
Advertisement
Related Manuals for Travis Industries Shadowbox Face
Summary of Contents for Travis Industries Shadowbox Face
- Page 1 Shadowbox Face (564) Installation Instructions Satin 95400424 Nickel 95400423 Packing List • • Face Switch Box Wire Harness • • Bottom Shield Switch Box Assembly • • (5) Screws (for bottom shield) (2) Screws • • (2) Face Mounting Brackets (2) Wire Hanger Clips •...
-
Page 2: Switch Box Installation
Shadowbox Face (564) Installation Instructions Satin 95400424 Nickel 95400423 Switch Box Installation This face does not have a door to allow access to the controls. The installer must install one of two options: a) Install a GreenSmart™ remote control (switch box not required). - Page 3 Shadowbox Face (564) Installation Instructions Satin 95400424 Nickel 95400423 If using an optional blower, remove the blower rheostat (see step 2 above for rheostat removal). NOTE: The blower rheostat and accent light rheostat use different connectors. Label the rheostats, if necessary, to insure correct orientation.
- Page 4 Shadowbox Face (564) Installation Instructions Satin 95400424 Nickel 95400423 Route the switch box wiring harness around the right side support leg (see Figure 5). Figure 5 Press the wire hanger clips into the switch box (see the two white arrows in Figure 6). Attach the switch box to the right side support leg with the two included screws (see circle in Figure 6).
- Page 5 Shadowbox Face (564) Installation Instructions Satin 95400424 Nickel 95400423 Press the on/off switch into the switch box (wire orientation does not matter). Attach the accent light rheostat to the right side mounting position on the switch box and replace knob. Install the blower rheostat (if applicable).
-
Page 6: Face Installation
Shadowbox Face (564) Installation Instructions Satin 95400424 Nickel 95400423 Face Installation Remove the glass frame (see owner’s manual for details). Remove the two mounting bracket nuts and bushings (see “a” Figure 9). Use the included screws to attach the face mounting brackets (see “b”... - Page 7 Shadowbox Face (564) Installation Instructions Satin 95400424 Nickel 95400423 Replace the glass frame. With the face centered on the fireplace, lift the face up and hang it on the upper hooks on the face mounting brackets (see Figure 12). With the face centered, lift up on it slightly while pushing the bottom inwards (see Figure 13). The face should engage the lower hooks and slide down, secure in place.
- Page 8 Shadowbox Face (564) Installation Instructions Satin 95400424 Nickel 95400423 Check the corners of the face opening to make sure the face is properly aligned left to right (see Figure 14). The face may be adjusted slightly to insure correct alignment.
