Travis Industries 564 SS Installation

Packing List

•
Rear Fireback
•
(2) Side Firebacks
•
(2) Floor Firebacks
Installation
WARNING Turn off gas to the appliance and make sure it has fully cooled prior to conducting service.
NOTE On two-sided firebacks make sure to use the desired pattern.

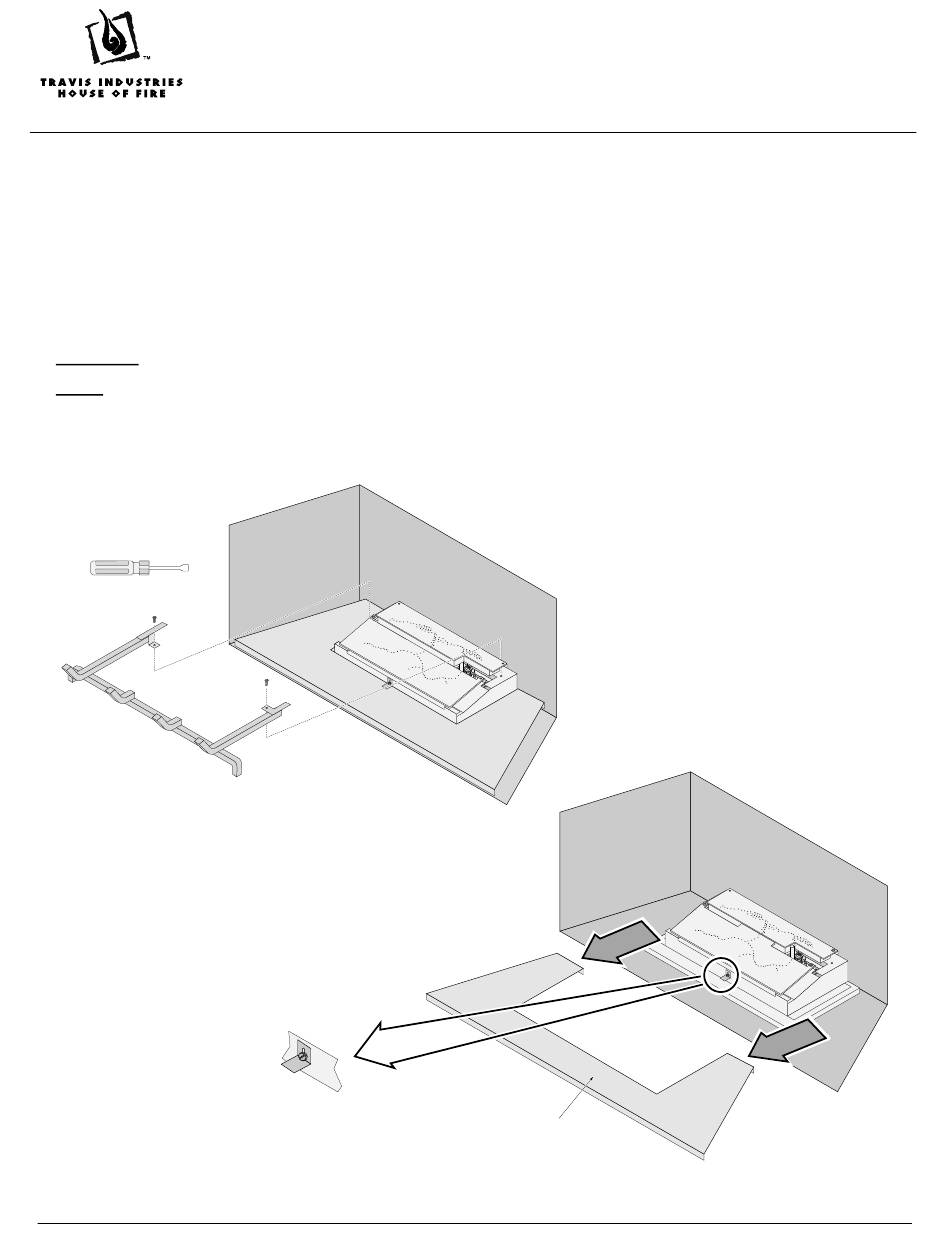

1 Remove the glass frame and logs (see the installation manual for details).
2 Remove the grate (replace after fireback installation). Remove and discard the hearth plate.
1/4" Nutdriver
Remove the grate
(replace after fireback installation).
Loosen this screw and
slide the bracket up.
Page 1 of 2
564 SS Fireback Installation
SKU # 96100179 (Brick / Herringbone)
SKU # 96100181 (Seattle Rock Creek)
SKU # 96100270 (Handmade Brick)
17601465 - 9/22/10
SKU # 96100182 (Diamond / Stucco)
SKU # 96100183 (Basket Weave / Quilt)
SKU # 96100271 (Reclaimed Brick)
Remove and discard
the hearth plate
