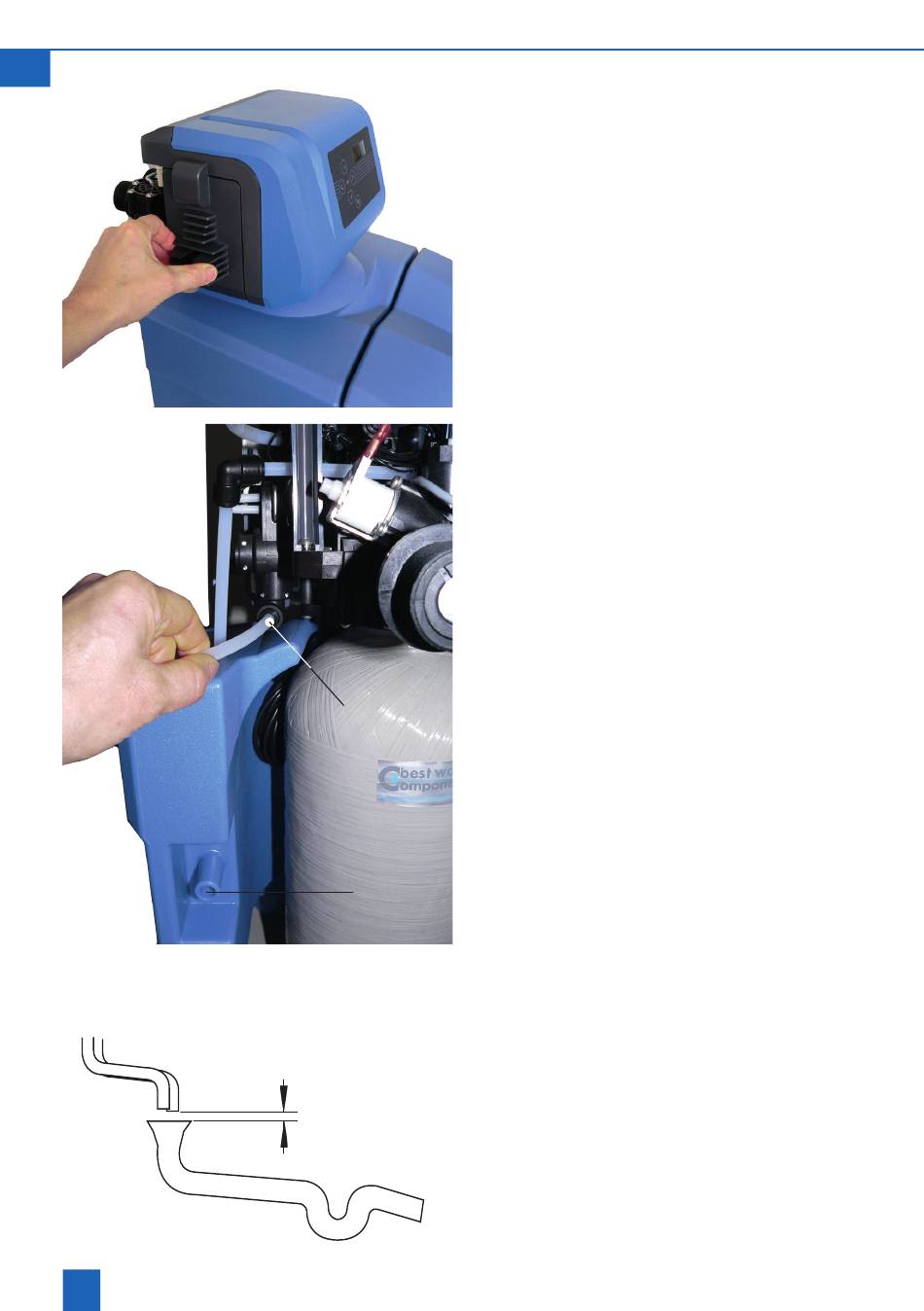

Attach the grey cover to the left side of the control
valve.
Firmly connect the flushing water hose to the flus-
hing water connection (9).
Route the flushing water hose (11) at an incline to
9
the sewage system connection (drain) and secure
the end with the fixing material supplied to prevent
it flapping about when under pressure.
Attach the overflow hose (18 x24) onto the overflow
(10), attach and secure with cable ties and lay
it with at least a 10 cm incline to the wastewater
10
connection (drain).
The flushing water and overflow hoses must not be
connected together or be constricted at any point.
> 20 mm
According to EN 1717, the flushing water and
overflow hoses must be connected to the sewage
water system at the predefined distance to the
highest waste water level (distance greater than the
diameter of the waste pipe).
