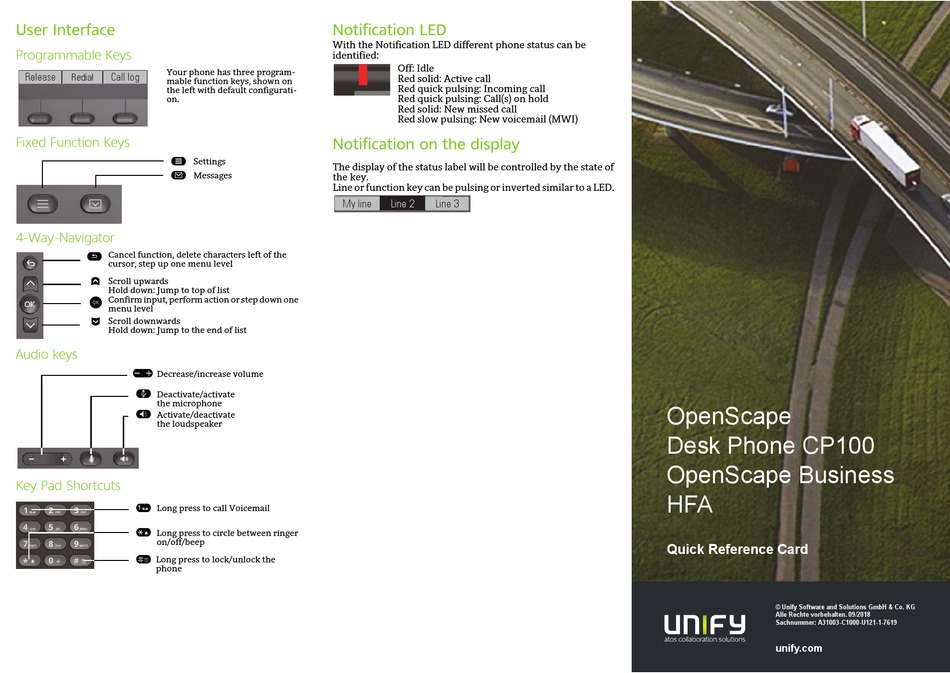

Unify OpenScape Desk Phone CP100 Quick Reference Card

User Interface

Programmable Keys
Release Call log Your phone has three program-
Redial
mable function keys, shown on
the left with default configurati-
on.
Fixed Function Keys
@
Settings
Â
Messages
4-Way-Navigator
^
Cancel function, delete characters left of the
cursor, step up one menu level
μ
Scroll upwards
Hold down: Jump to top of list
Z
Confirm input, perform action or step down one
menu level
€
Scroll downwards
Hold down: Jump to the end of list
Audio keys
"
Decrease/increase volume
;
Deactivate/activate
the microphone
:
Activate/deactivate
the loudspeaker
Key Pad Shortcuts
1
Long press to call Voicemail
*
Long press to circle between ringer
on/off/beep
#
Long press to lock/unlock the
phone
Notification LED
With the Notification LED different phone status can be
identified:
Off: Idle
Red solid: Active call
Red quick pulsing: Incoming call
Red quick pulsing: Call(s) on hold
Red solid: New missed call
Red slow pulsing: New voicemail (MWI)
Notification on the display
The display of the status label will be controlled by the state of
the key.
Line or function key can be pulsing or inverted similar to a LED.
My line Line 2 Line 3

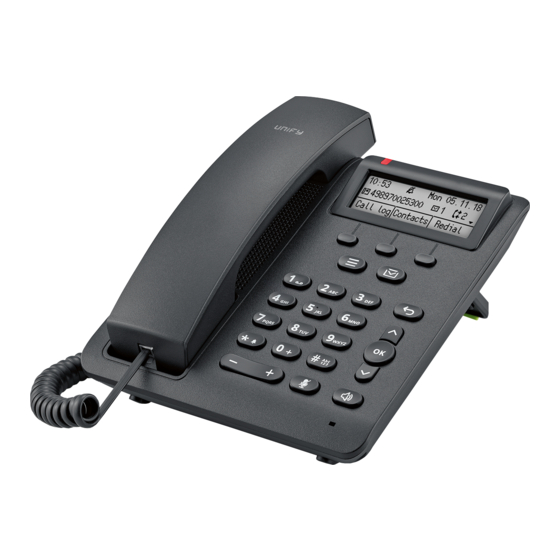

OpenScape
Desk Phone CP100
OpenScape Business
HFA
Quick Reference Card
© Unify Software and Solutions GmbH & Co. KG
Alle Rechte vorbehalten. 09/2018
Sachnummer: A31003-C1000-U121-1-7619
unify.com
