Installing the Tape Drive

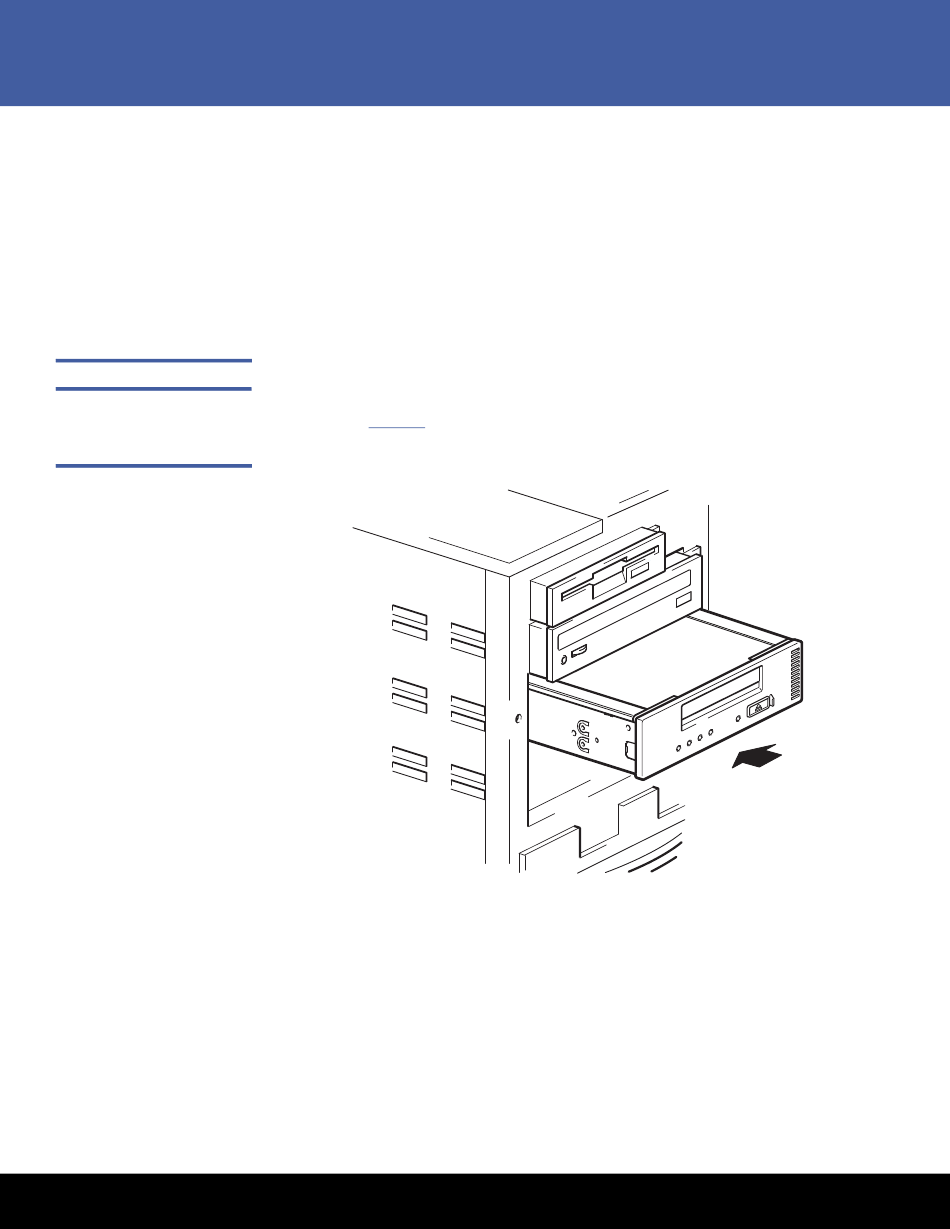

Figure 2 Installing the Tape
Drive
Installing the Internal DAT 320 Tape Drive in Your Server
2 Attach the appropriate mounting hardware. Refer to the manufacturer's
documentation for instructions.
• If you are installing on a server that requires a tray, place the tape drive in the
tray.
• If you are installing in a server that requires mounting rails, fasten the rails to
the tape drive.
• Some servers have snap-on mounting rails attached to the filler panel. These can
be removed and attached to the tape drive with screws.
To install the tape drive:
1 Slide the tape drive into the open bay aligning the tray or rails with the slots in the
bay (see Figure 2).
If your server does not use mounting hardware, check that the holes in the chassis are
aligned with the holes in the side of the tape drive.
Do not secure the drive at this point because you may have to move the drive to get the
cables into place.
