SuperLoader™ 3

Quick Start Guide

®
The Quantum

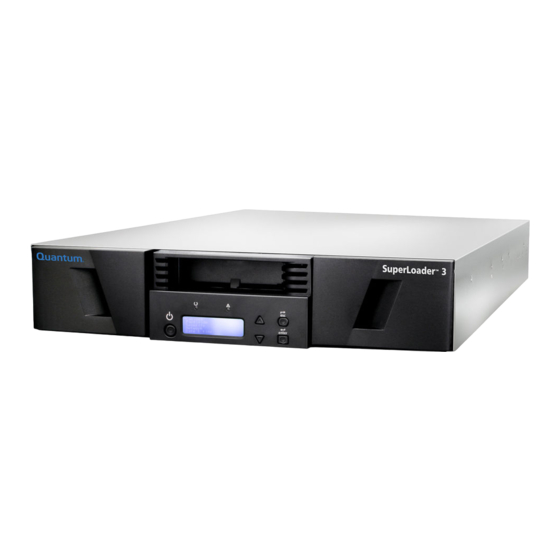

SuperLoader™ 3 is an automated storage and retrieval
device consisting of a tape drive and up to two tape magazines holding up
to eight cartridges each.
For more information, see the Quantum SuperLoader 3 User's Guide
(PN 81-81317) on the documentation CD provided with your autoloader.
This quick start guide uses the following conventions:
Note:
Notes emphasize important information related to the main
topic.
Caution:
Cautions indicate potential hazards to equipment and are
included to prevent damage to equipment.
Warnings indicate potential hazards to personal safety and
Warning:
are included to prevent injury.
This document explains how to unpack the SuperLoader 3 and install it in a
standard 19-inch rack.

Choosing a Location

The autoloader is designed to fit in a standard 19-inch rack using either the
long or short brackets (depending on the depth of the rack). The autoloader
uses standard rack mounting hardware.
It is recommended that you review this entire document prior to
Note:
beginning the installation.
SuperLoader 3
Contents
Choosing a Location.......................... 1
Taking ESD Precautions ................. 3
Unpacking the Autoloader................ 4
Checking Accessories ..................... 5
SCSI Bus Requirements ................... 13
General Information..................... 13
Setting the SCSI ID .......................... 16
the Connection ............................. 16
Operating System Support ............. 17
Autoloader Device Driver............. 17
Tape Drive Device Driver .............. 17
After the Installation....................... 18
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SuperLoader 3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Quantum SuperLoader 3

Summary of Contents for Quantum SuperLoader 3

  • Page 1: Table Of Contents

    Warnings indicate potential hazards to personal safety and Warning: are included to prevent injury. This document explains how to unpack the SuperLoader 3 and install it in a standard 19-inch rack. Choosing a Location The autoloader is designed to fit in a standard 19-inch rack using either the long or short brackets (depending on the depth of the rack).

  • Page 2: Preparing For The Installation

    SuperLoader™ 3 Quick Start Guide Choose a location that meets the following criteria: Criteria Rack requirements Room temperature Power source Weight Air Quality Humidity Clearance Preparing for the Installation Before you begin the installation procedure in this section, make the following preparations as described in this section: •...

  • Page 3: Taking Esd Precautions

    Warning: Failure to take these safety steps may result in personal injury or equipment damage. Preparing for the Installation SuperLoader 3...

  • Page 4: Unpacking The Autoloader

    Unpacking the Autoloader Before you begin, clear a desk or table so that you can unpack the autoloader. The Quantum SuperLoader 3 Quick Start Guide has all the necessary information to unpack and inspect your autoloader correctly. You also need to select an open 2U computer rack location near the server that will host the autoloader.

  • Page 5: Checking Accessories

    The following accessories are shipped with the Quantum SuperLoader 3: Checking Accessories • • • • • • • • • • You will also need the following parts that were shipped with your rack: • • Figure 1 Rack Mount...

  • Page 6: Rack Mounting The Autoloader

    SuperLoader™ 3 Quick Start Guide Rack Mounting the Autoloader This section provides the steps for attaching the autoloader directly to the stationary rails of a rack. Refer to Table 1 Rack Hole Types Figure Note: The rails within the rack have a hole pattern that repeats throughout the rail. 1 Install two clip nuts, 1.75 in.
  • Page 7 (72-A226-A) when the distance from the front mounting rail to the rear mounting rail is less than 30.25 in. (76.84 cm). Otherwise, use the short autoloader brackets (72-A225-A). Rack Mounting the Autoloader SuperLoader 3 Clip nut 1.75 in (44.45 mm)
  • Page 8 SuperLoader™ 3 Quick Start Guide Figure 3 Attaching Autoloader Brackets 3 Using rack screws, attach a support bracket to the clip nuts on each rear rail (see Autoloader Screws (10-32 x 1/4 only) Autoloader bracket figure Note: Be sure to attach the support brackets correctly; the side of the bracket with only two holes should be secured to the rail.
  • Page 9 (see figure Caution: Do not release the front end of the autoloader until it can be secured to the rack. Rack Mounting the Autoloader SuperLoader 3 Rack screws...
  • Page 10 SuperLoader™ 3 Quick Start Guide Figure 5 Sliding Autoloader into Rack 5 While the other installer holds the front end of the autoloader, secure the front end of Figure 6 Front Alignment Tab (one per side) 6 Install four screws (two per side) to secure the support brackets to the autoloader Autoloader bracket Support bracket the autoloader to the rack using four rack screws (two per tab) as shown in...
  • Page 11 This includes the following: • Four screws securing the autoloader tabs to the front rails. • Four screws securing the support brackets to the rear rails. • Four screws securing the autoloader brackets to the support brackets. Rack Mounting the Autoloader SuperLoader 3...

  • Page 12: Autoloader Panel Overviews

    SuperLoader™ 3 Quick Start Guide Autoloader Panel Overviews The front panel allows you to configure the autoloader, enter commands, and obtain status information. Figure 8 Front Panel Overview The Ethernet connector on the back panel allows you to connect to the autoloader remote management interface.

  • Page 13: Scsi Bus Requirements

    SCSI bus. If your autoloader is equipped with a Fibre Channel or SAS tape drive, a Fibre Channel (see figure 10) or SAS (see terminator. SCSI Bus Requirements SuperLoader 3 figure 12). figure 11) cable replaces the SCSI cable and...
  • Page 14 SuperLoader™ 3 Quick Start Guide Figure 10 Cable Connectors (Fibre Channel Tape Drive) Figure 11 Cable Connectors (SAS Tape Drive) Figure 12 Cable Connectors (SCSI Tape Drive) Fibre Channel cable Ethernet cable Ethernet cable SCSI terminator Ethernet cable Connecting SCSI, SAS, or Fibre Channel and Power Cables SAS cable SCSI cable...
  • Page 15 The autoloader will not complete the initialization sequence unless both tape magazine openings are properly closed. You can use two magazines or one magazine and one magazine blank. 10 Turn on the server. Connecting SCSI, SAS, or Fibre Channel and Power Cables SuperLoader 3 screen.

  • Page 16: Setting The Scsi Id

    Setting the SCSI ID Each SCSI device attached to a server or workstation must have a unique SCSI ID from 0 through 7. The default SCSI ID is 5 for the SuperLoader 3. To change the SCSI ID for the SuperLoader 3:...

  • Page 17: Operating System Support

    • Windows Operating System Support There are two device drivers associated with the SuperLoader 3 autoloader. One for the autoloader itself, and a second for the tape drive within the autoloader. Note: For the SuperLoader 3 device driver, go to: Autoloader Device Driver •...

  • Page 18: After The Installation

    For worldwide support: www.quantum.com/contactsupport Backup. Recovery. Archive. It’s What We Do. ©2008 Quantum Corporation. All rights reserved. Quantum, the Quantum logo, and all other logos are registered trademarks of Quantum Corporation or their respective owners. For the LTO-4 drive, go to: http://www.quantum.com/ServiceandSupport/...
