DAT 320 Tape Drive Quick
Quantum DAT 320, models CD320UH (Internal) and CD320UE (Tabletop),
are the most reliable DAT drives on the market, delivering reliability features
to extend media life.

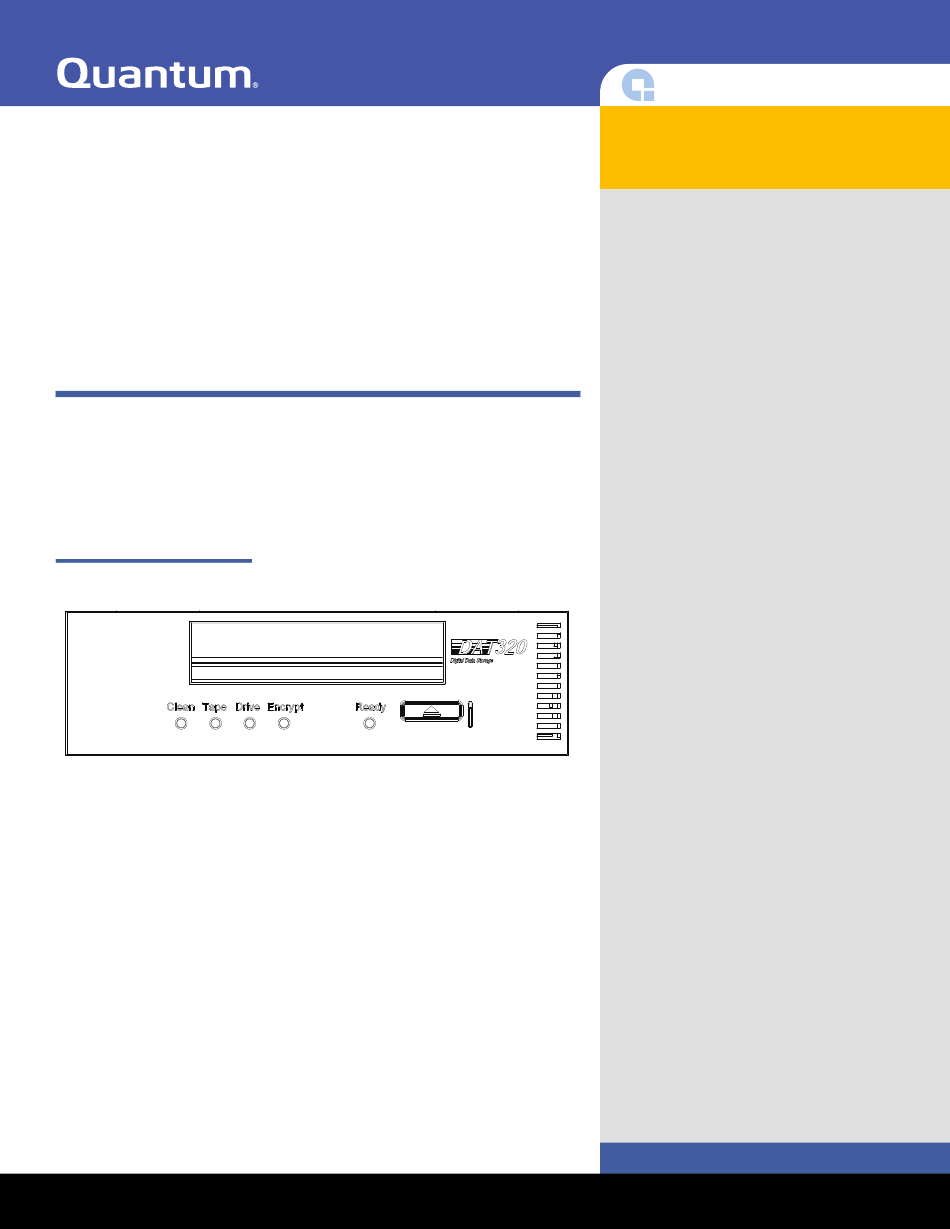

Figure 1 Internal Drive
Start Guide
DAT 320
Contents
in Your System........................................2
Avoiding Electrostatic Damage..........2
Preinstallation Requirements .............2
Required Tools ....................................3
in Your Server .........................................3
Preparing Mounting Bay ....................3
Attaching Mounting Hardware ..........3
Installing the Tape Drive.....................5
Attaching the USB Cable ....................6
Tape Drive to the Server .....................6
the Tape Drive.....................................7
Securing the Drive..............................8
Completing Your Installation .............9
to Your System .....................................10
to Your Tabletop Drive......................10
Completing Your Installation ...........10
Safety Compliances ..............................11
Compliances .........................................12
www.quantum.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Quantum DAT 320 CD320UE
Summary of Contents for Quantum DAT 320 CD320UE
-
Page 1: Table Of Contents
Installing the Tape Drive.....5 Attaching the USB Cable ....6 Connecting the USB Cable from the Quantum DAT 320, models CD320UH (Internal) and CD320UE (Tabletop), Tape Drive to the Server .....6 are the most reliable DAT drives on the market, delivering reliability features Attaching the Power and USB Cables to to extend media life. -
Page 2: Before Installing The Dat 320 Tape Drive In Your System
• Backup application software that supports the internal tape drive. For a list of the latest backup software applications tested with the internal DAT 320 tape drives, please visit our Web site at http://www.quantum.com/ServiceandSupport/ Index.aspx# Unpacking and Before you unpack the contents of your drive package, inspect the shipping containers Inspecting the Drive for damage. -
Page 3: Required Tools
DAT 320 Required Tools The following is a list of the tools you will need. You may need additional items, depending on your installation requirements. • Flat blade, Phillips or TORX screwdriver, depending on the type of screws used by your computer Installing the Internal DAT 320 Tape Drive in Your Server Installing the internal DAT 320 tape drive consists of the following major steps:... - Page 4 DAT 320 Quick Start Guide Caution: Static electricity can damage electronic components. Always wear an antistatic wrist strap if one is available. If not, after you have disconnected power from the server and removed the cover, touch a bare metal part of the chassis.
-
Page 5: Installing The Tape Drive
DAT 320 2 Attach the appropriate mounting hardware. Refer to the manufacturer’s documentation for instructions. • If you are installing on a server that requires a tray, place the tape drive in the tray. • If you are installing in a server that requires mounting rails, fasten the rails to the tape drive. -
Page 6: Attaching The Usb Cable
DAT 320 Quick Start Guide Attaching the USB Decide Which Cable to Use Cable There are several options for connecting the tape drive to your server: To an . . . Use . . . Notes Internal standard standard May be connected to the server’s system board or USB port USB cable an internal USB card. -
Page 7: Attaching The Power And Usb Cables To The Tape Drive
DAT 320 To an External USB 2.0 Port Purchase a special USB cable and Cable Routing Kit. The Cable Routing Kit consists of a bracket with attached cable on one side that connects to the server’s external port and a Type A USB socket on the other side. -
Page 8: Securing The Drive
DAT 320 Quick Start Guide 2 Attach a spare cable from the server’s internal power supply to the power connector (see Figure Figure 5 Attaching the Power Cable USB cable to server’s external USB Port Power cable Server’s power supply Tape drive Power cable Securing the Drive... - Page 9 DAT 320 Mounting Hardware Used 1 Use M3 screws. Check that the holes in the chassis are aligned with the holes in the sides of the drive and use a regular Phillips screwdriver to secure the M3 screws (see Figure Figure 6 Securing Drive, No Mounting Hardware Used M3 screws, supplied...
-
Page 10: Installing The Tabletop Dat 320 Tape Drive To Your System
USB Cables to Your power supply. Tabletop Drive A power cable is provided with your Quantum DAT 320 tape drive. 1 Make sure that the drive is switched OFF (O side down). The power switch is on the rear panel. -
Page 11: Safety Compliances
For your convenience, you can register your drive through our Web site. • Please visit to register your product. www.quantum.com/registration Safety Compliances The DAT 320 Tape Drives are safety compliant with the following regulatory organizations and codes in the countries indicated:... -
Page 12: Electromagnetic Compatibility (Emc) Compliances
DAT 320 Quick Start Guide Country Regulatory Organization Compliant to: IECEE member IECEE International CB Scheme per IEC nations* Electrotechnical Commission 60950-01, 2nd Ed. on Electrical Equipment with details and (IECEE) for Mutual exceptions for each Recognition of Test member country Certificates for Electrical Equipment “CB Scheme”... - Page 13 DAT 320 Country Regulatory Organization Compliant to: Taiwan Bureau of Commodity Inspection BSMI EMC certification, and Quarantine (BSMI) CNS 13438 United States Federal Communications Title 47: Code of Federal Commission (FCC) Regulations, Part 15, Subpart B (47CFR15B) Jotta asiakasta Suomessa Laite on liitettava suojakosketinpistorasiaan For kunder i Norge Apparatet ma tilkoples jordet stikkontakt...
