Streaming Setup

The DT-HDIPCOM can be setup to stream via HTTP (DLNA) directly from the network to the DLNA application on a
DLNA compliant Smartv, using Multicast (UDP/RTP) direct to a PC or by using a compatible set top box, or by
Unicasting (UDP/RTP). The DT-HDIPCOM can stream via HTTP and Multicast simultaneously.

Stream Server

HTTP (DLNA) Setup
Select 'Enable HTTP' for DLNA Streaming
The DT-HDIPCOM is DLNA Compliant and can create a stream that will be detected and displayed to any Smartv that
is DLNA Compliant.

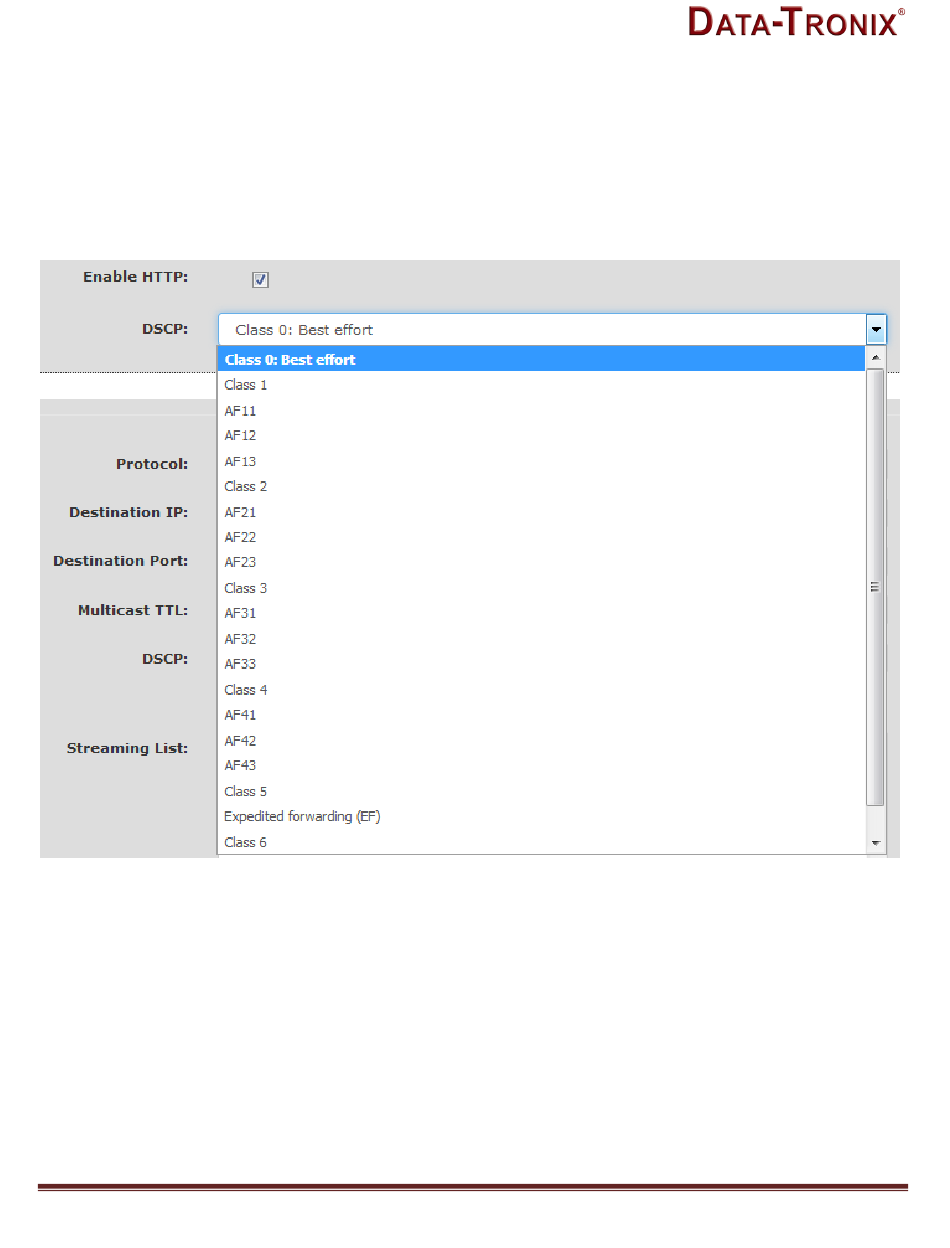

Enable HTTP as shown above and select the desired DSCP.
***SAVE AND CONFIRM all changes made on the Streaming Setup page
