Broadcasting

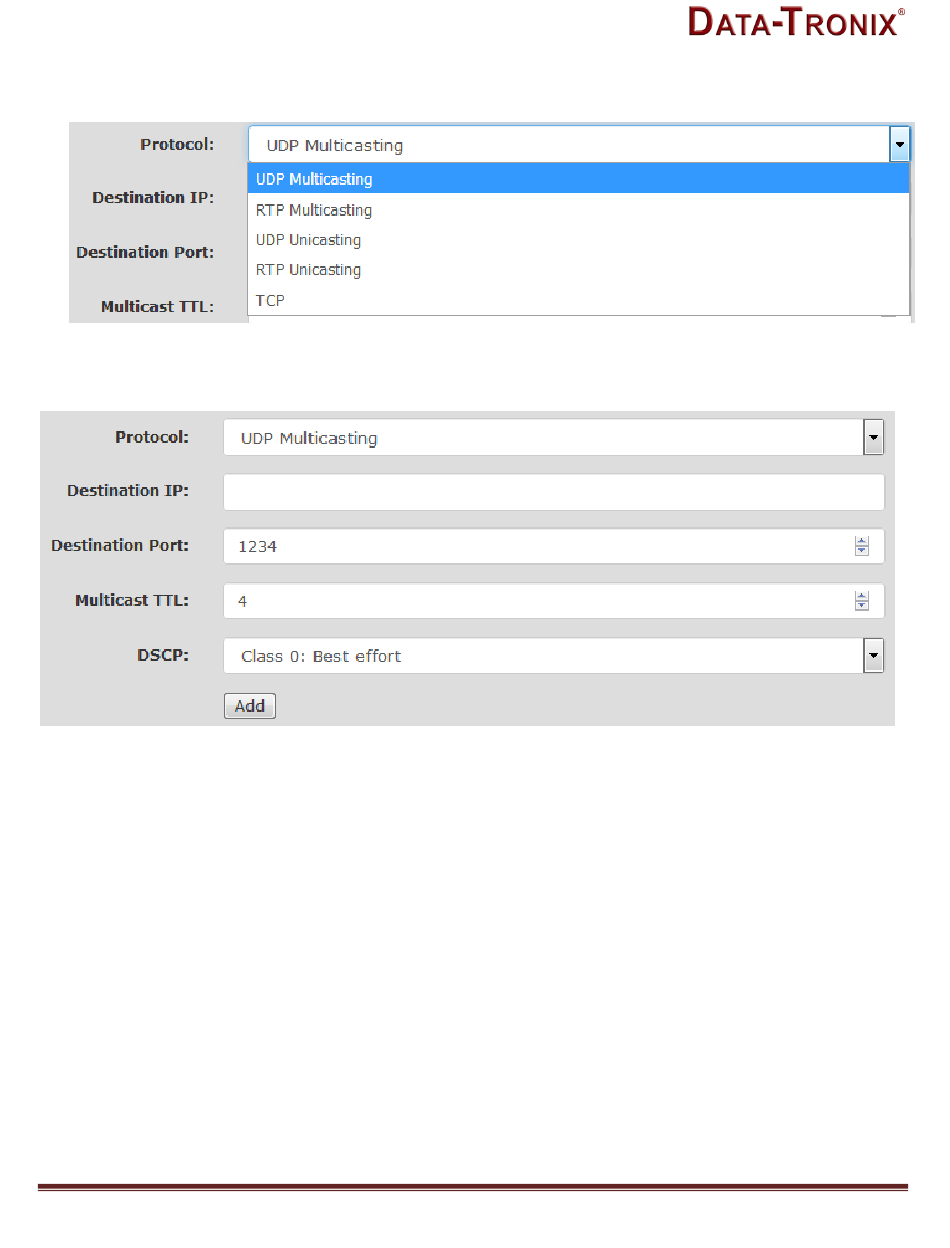

Select the Broadcasting Protocol as above drop-down list. The Broadcasting is Default: UDP Multicasting
Enter Multicast Destination IP Address and Destination Port.
Multicast TTL (Time to Live) default is 4.
Select the desired DSCP from the drop-down list. Default is Class 0: Best effort.
Press Add after setting, the IP will be shown in the Streaming List.
***SAVE AND CONFIRM all changes made on the Streaming Setup page
NACE:
610-429-1511
| sales@datatronix.biz | www.datatronix.biz | DT-HDIPCOM Manual v1.0
Page 20
