Streaming Methods Case

COM2000 LCI (Local Channel Insertion)

Inserting HD/SD Local Content with the COM2000 System
The Technicolor COM2000 system has the ability to accept and insert Local Content into the COM2000 system using
the DT-HDIPCOM Streamer and the Technicolor QAM. The Local Content is inserted into the HD IP Streamer which
can output either a Unicast or Multicast formatted stream that is then inserted into the COM2000 System. The
Technicolor QAM is used to assign a QAM channel to the IP stream and incorporates the local channel into the
system.
The content source (a media player or other source) is connected to the DT-HDIPCOM streamer via a Composite,
Component, or HDMI connection. Using the HD IP Streamer, a MPEG-2 SPTS (Single Program Transport Stream) is
created and is output via a 1Gbe port. The HD IP Streamer encodes the Audio and Video content. The Integrator sets
up a Unicast or Multicast Stream via the Web management pages of the encoder.
The DataTronix DT-HDIPCOM Streamer offers a Composite, Component, and HDMI Input. By connecting the HD IP
Streamer either with a Component, HDMI, or Composite cable to the source (i.e. Digital Signage Media Player). The
Streamer can be setup to output a MPEG-2 CBR SPTS stream in either a Multicast or Unicast format. An ethernet
cable from the Streamer is connected to the GbE1 or GbE2 port on the COM360. (Note: If both GbE ports are in use
the Integrator will need to introduce a 1Gbe Ethernet Switch into the design/setup).

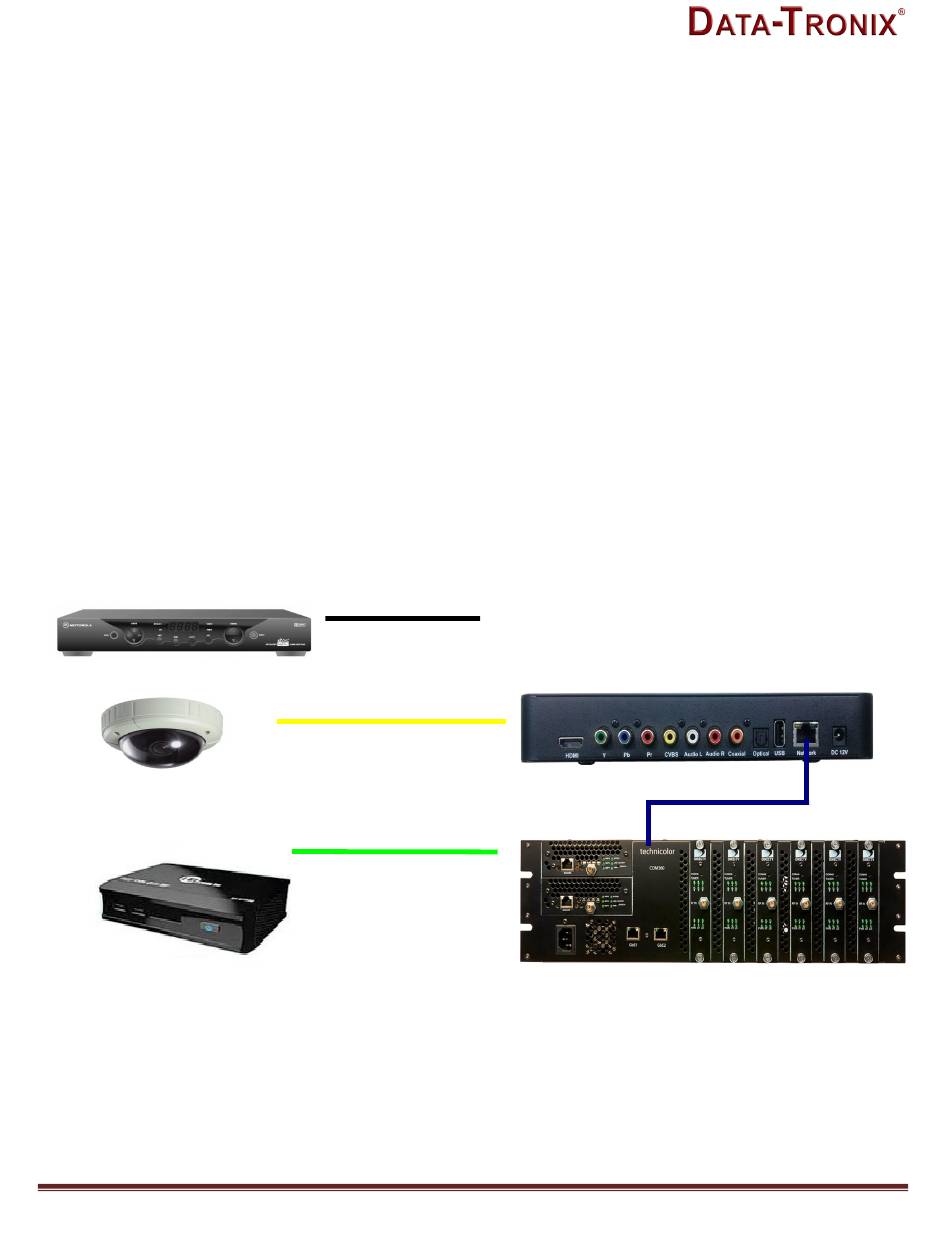

Network Setup Example:
STB
Component
DT-HDIPCOM
Composite
Security Cameras
HDMI
Media Player
