Streaming Setup; Stream Server - Data-Tronix DT-HDIPUS User Manual & Installation Manual

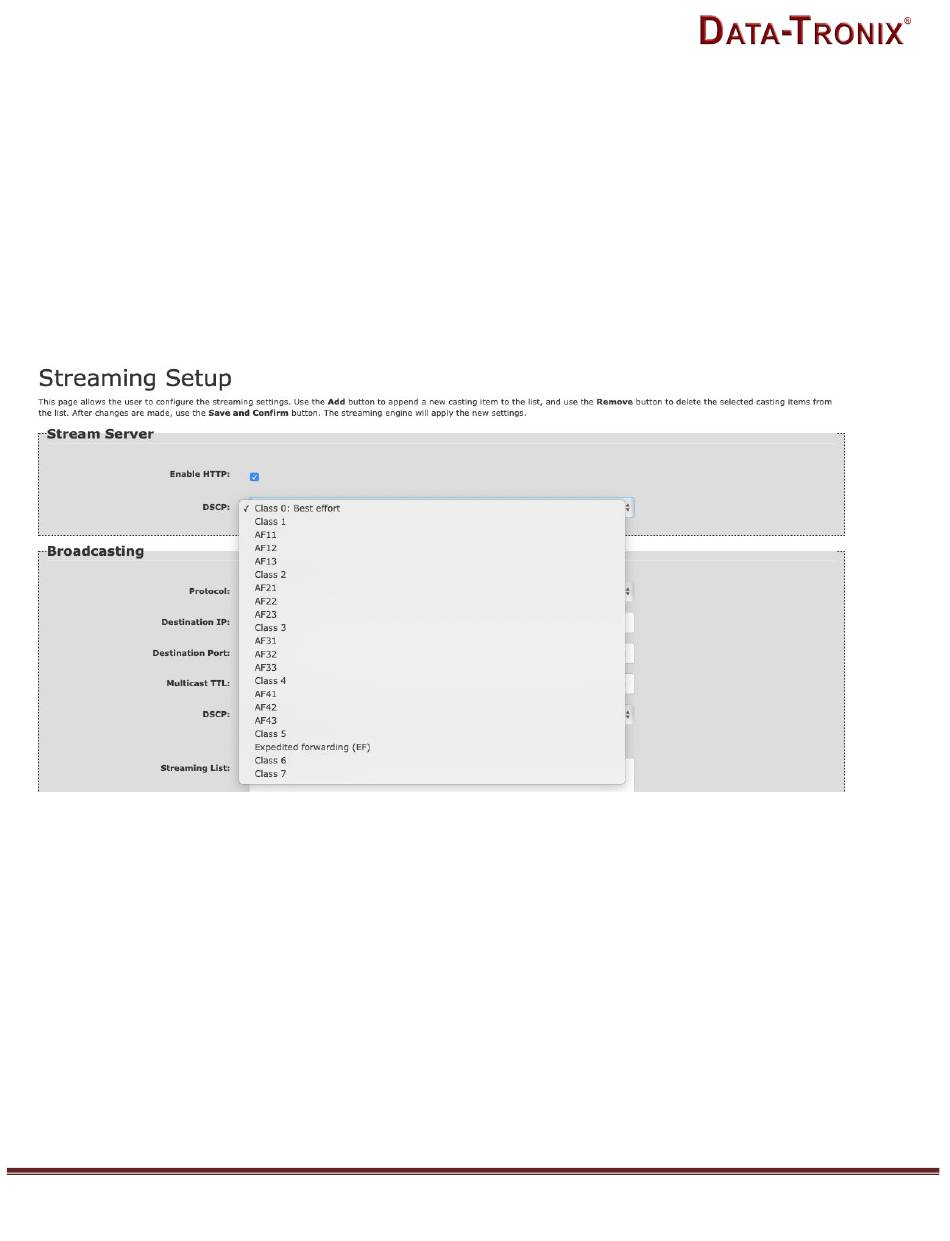

Streaming Setup

The DT-HDIPUS can be setup to stream via HTTP (DLNA) directly from the network to the DLNA application
on a DLNA Compliant Smart TV, directly to a PC using Multicast (UDP/RTP), to an HDTV by using a
compatible set top box, or by Unicasting (UDP/RTP) to a PC. The DT-HDIPUS can stream via HTTP and
Multicast simultaneously.

Stream Server

HTTP (DLNA) Setup
Select 'Enable HTTP' for DLNA Streaming
The DT-HDIPUS is DLNA Compliant and can create a stream that will be detected and displayed to any
Smartv that is DLNA Compliant.
Enable HTTP as shown above and select the desired DSCP.
***SAVE AND CONFIRM all changes made on the Streaming Setup page
NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-HDIPUS Manual v1.0 Page 15
