Summary of Contents for Data-Tronix DT-HDIPUS

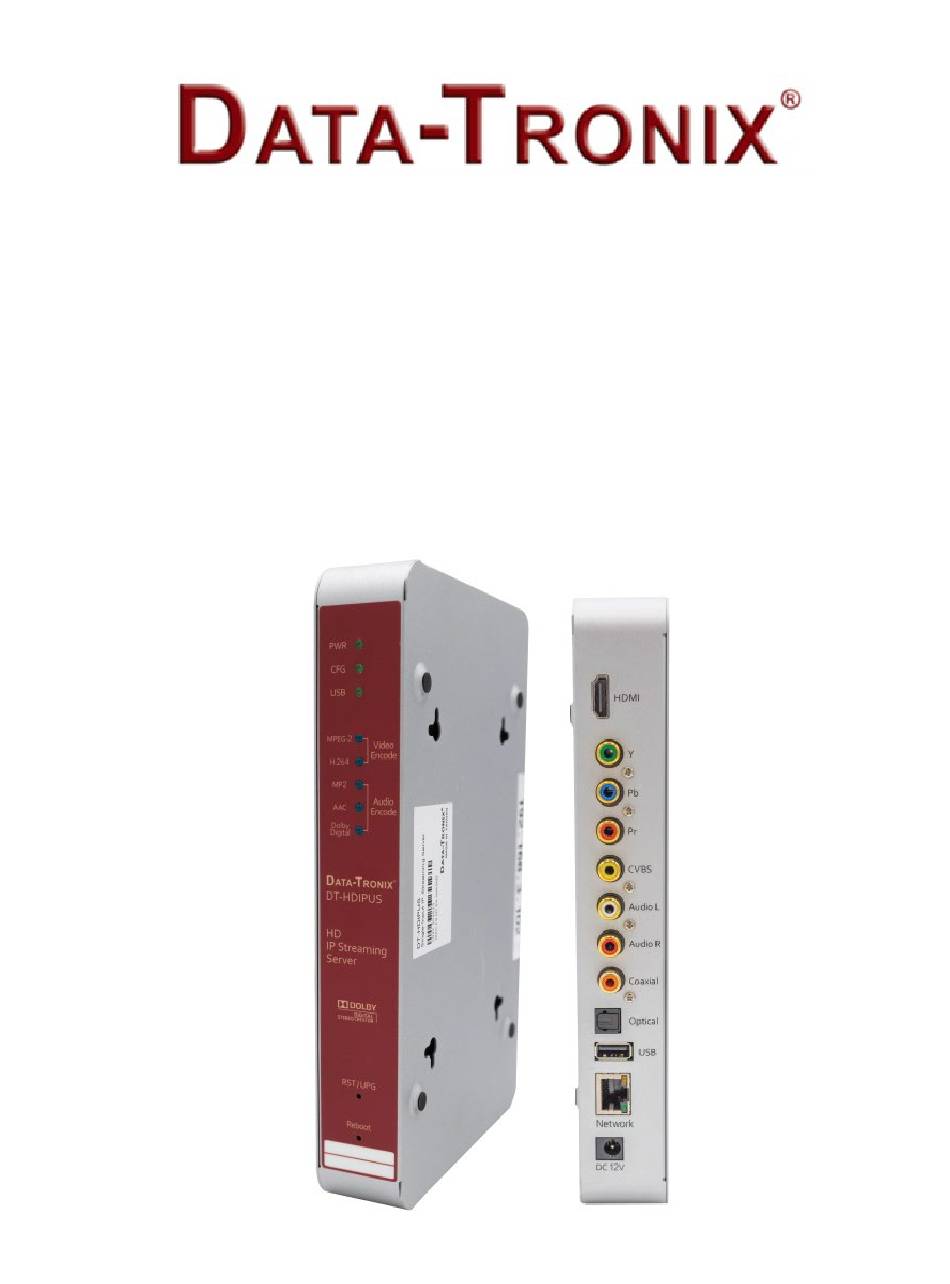

- Page 1 USER GUIDE & INSTALLATION MANUAL DT-HDIPUS HD IP Streaming Server...
-
Page 2: Table Of Contents
STREAMING METHODS CASES ....................22 1: DLNA S ......................23 TREAMING 2: UDP/RTP M ....................25 ULTICASTING 3: TCP/UDP/RTP U .................... 28 NICASTING HDIP STREAMING SERVER NOTES ................... 30 NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-HDIPUS Manual v1.0 Page 2... -
Page 3: Safety Precautions
Inspect the package before starting installation to ensure there is no damage and all supplied contents are present. Contact your distributor or dealer if the device is damaged or package contents are incomplete. NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-HDIPUS Manual v1.0 Page 3... -
Page 4: Product Description
PRODUCT DESCRIPTION DATATRONIX's DT-HDIPUS HD IP Streamer allows the user to stream any one audio/video source over an IP Network to multiple Smart HDTVs or connected computers within the IP Network. The IP Streamer accepts an HDMI, Component, or Composite video input and the unit is designed to deliver a rich HD/SD Streaming experience for its users deploying MPEG-2 or MPEG-4 standards. -
Page 5: Specifications
(236mm x 155mm x 35mm) HTTP Embedded 2 lbs. and 1.1575 oz. (940g) Weight UPnP Embedded Language English *Manufactured under license from Dolby Laboratories. ** Specifications subject to change without notification. NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-HDIPUS Manual v1.0 Page 5... -
Page 6: Installation
3. Plug the power adapter to the device and power up 4. Network Setup 5. There are three (3) use cases supported by HDIP streamer: DLNA media server, UDP/RTP/ multicasting, and TCP/UDP/RTP/ unicasting. NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-HDIPUS Manual v1.0 Page 6... -
Page 7: Front-Panel
Indicates device is encoding audio using MPEG-1 Layer 2 Indicates device is encoding audio using AAC Dolby Digital Indicates device is encoding audio using Dolby Digital Recording IP NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-HDIPUS Manual v1.0 Page 7... -
Page 8: Connecting To The Gui Interface
6. Verify parameters then end web session. Overview / Welcome page displays current status of the encoder including Input type, Output format type, Output Bitrate, Actual Output, Encoder Status, and # of connected Clients. NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-HDIPUS Manual v1.0 Page 8... -
Page 9: Login User And Password
Required” screen will be presented. Enter the User Name and Password then click Login. User Name: admin Default Password: Admin123 Note: User Password can be changed – See Administration Page. NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-HDIPUS Manual v1.0 Page 9... -
Page 10: Encoder Setup
Encoder Setup NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-HDIPUS Manual v1.0 Page 10... -
Page 11: Video Control
Encoder Setup The DT-HDIPUS provides the user with a variety of parameter settings. Many of the default settings will allow the user to quickly start streaming video. Only some of the settings shown will require any change. Video Control Select Video Input Setting the device to Auto Detect allows the Encoder to automatically recognize which video source the user is using. -
Page 12: Audio Control
HD: 2~10 Mbps (default- 10 Mbps) SD: 1~4 Mbps (default- 4 Mbps) The DT-HDIPUS allows the user to Set the Video Bitrate desired within the defined parameters offered. Set or use the default settings as required. Select Aspect ratio Select :16:9 (default) or 4:3... -
Page 13: Color Control
Application Note: If your Video Source is HDMI and you require an alternate Audio Source – Select Analog. This will force the DT-HDIPUS to use the L/R RCA Audio Inputs as the Audio Source. Select Audio Output Type Use the drop-down tool to Select the Audio Format required. - Page 14 After pressing the 'Save and Confirm' button- the user will be brought back to the Overview page. Leaving the encoder page without saving changes will cause the previous settings to be used. NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-HDIPUS Manual v1.0 Page 14...
-
Page 15: Streaming Setup
Streaming Setup The DT-HDIPUS can be setup to stream via HTTP (DLNA) directly from the network to the DLNA application on a DLNA Compliant Smart TV, directly to a PC using Multicast (UDP/RTP), to an HDTV by using a compatible set top box, or by Unicasting (UDP/RTP) to a PC. The DT-HDIPUS can stream via HTTP and Multicast simultaneously. -
Page 16: Broadcasting
Select the desired DSCP from the drop-down list. Default is Class 0: Best effort. Click “Add” after setting and the IP will be shown in the Streaming List. ***SAVE AND CONFIRM all changes made on the Streaming Setup page NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-HDIPUS Manual v1.0 Page 16... - Page 17 To remove a Destination IP – simply select the IP address and Click 'Remove'. Note: Add up to 16 Destinations to the Streaming List. ***SAVE AND CONFIRM all changes made on the Streaming Setup page NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-HDIPUS Manual v1.0 Page 17...
-
Page 18: Network Configuration
To set a Static IP- Uncheck 'Enable DHCP'. Enter IP Address, Subnet Mask, Default Gateway, and DNS Server. Default: DHCP Enabled. NTP Server To set NTP Server (if required) NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-HDIPUS Manual v1.0 Page 18... -
Page 19: Dlna Settings
User MUST enter PORT ID as part of the IP address to Open GUI of device. Default SOAP Port: 8888 *** SAVE AND CONFIRM ALL CHANGES MADE ON THE NETWORK SETUP PAGE NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-HDIPUS Manual v1.0 Page 19... -
Page 20: Administration
Click the 'Reboot Device' button to reboot the device from within the GUI. Note: The Streamer can be rebooted using pressing the 'Reboot' button on the front of the device. All unsaved changes will be lost. NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-HDIPUS Manual v1.0 Page 20... - Page 21 This function is helpful to the installer when installing a large number of encoders in a single system. A “config.cfg” file will be created. Locate the file My Computer> C Directory > Documents and Settings> User>My Documents>Downloads>configs.cfg. NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-HDIPUS Manual v1.0 Page 21...
-
Page 22: Streaming Methods Cases
Remember to Click 'Save and Confirm' button to save new password. Streaming Methods Cases Application Note: If using VLC player, DataTronix recommends installing version 2.0.8 or newer version. Earlier versions of VLC may not be compatible. NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-HDIPUS Manual v1.0 Page 22... -
Page 23: Case 1: Dlna Streaming
Streaming Setup Example: Step 1: Enable HTTP (DLNA) Streaming Step 2: ***Save and Confirm *** Step 3: Launch VLC Media Player Step 4: File → Open Network NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-HDIPUS Manual v1.0 Page 23... - Page 24 Step 5: Enter IP Address as shown Format: http://ip_address_of_unit:SoapPort/VideoInput/play.ts Step 6: Click Open / Play NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-HDIPUS Manual v1.0 Page 24...
-
Page 25: Case 2: Udp/Rtp Multicasting
Case 2: UDP/RTP Multicasting Streaming Setup Example: Step 1: Select UDP Multicasting Protocol NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-HDIPUS Manual v1.0 Page 25... - Page 26 Step 3: Enter Multicast Port Step 4: ***Save and Confirm *** Step 5: Launch VLC Media Step 6: File → Open Network Step 7: Click on 'Open RTP/UDP Stream NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-HDIPUS Manual v1.0 Page 26...
- Page 27 Step 8: Enter Multicast IP and Port or enter Group Multicast as shown below Example for RTP Stream: rtp://@224.1.1.1:1234 Step 9: Click Open to view stream. NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-HDIPUS Manual v1.0 Page 27...
-
Page 28: Case 3: Tcp/Udp/Rtp Unicasting
Step 4: Click 'Add' Image above shows Destination IP/Port listed in the Casting List window. Note: Click on an IP Address then 'Remove' to remove a Destination IP addresses. NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-HDIPUS Manual v1.0 Page 28... - Page 29 Step 6: Launch VLC Media Player Step 7: File → Open Network Step 8: Enter Destination Port as shown. example: Destination IP address as shown in step 4 :169.254.244.133. Destination Port: 1234 NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-HDIPUS Manual v1.0 Page 29...
-
Page 30: Hdip Streaming Server Notes
HDIP Streaming Server Notes PRODUCT NOTES: ITEM VALUE USER NAME / PASSWORD SERIAL NUMBER INSTALLATION DATE PURCHASE DATE DEVICE NAME FIRMWARE VERSION STREAMING METHOD NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-HDIPUS Manual v1.0 Page 30...
