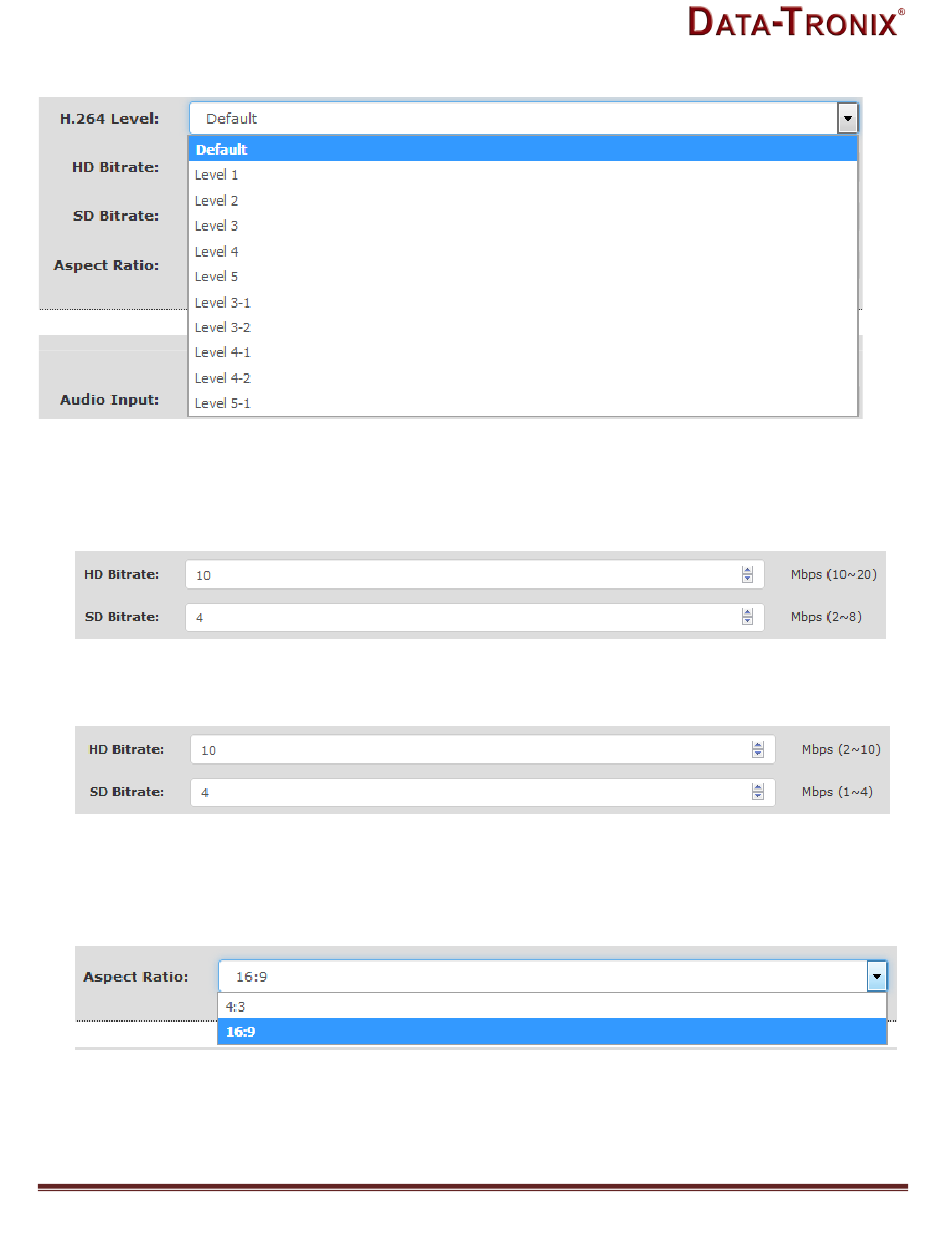

Select H.264 Levels (Only for H.264/H.264 CBR)
Selecting H.264 or H.264 CBR allows the user to define / set the H.264 Levels required
Setting the Video Bitrate: HD / SD
MPEG-2 Video Bitrates
HD: 10~20 Mbps (default- 10 Mbps)
SD: 2~8 Mbps (default- 4 Mbps)
H.264 Video Bitrates
HD: 2~10 Mbps (default- 10 Mbps)
SD: 1~4 Mbps (default- 4 Mbps)
The DT-HDIPCOM allows the user to Set the Video Bitrate desired within the defined parameters offered. Set or use
the default settings as required.
Select Aspect ratio
Select :16:9 (default) or 4:3
NACE:
610-429-1511
| sales@datatronix.biz | www.datatronix.biz | DT-HDIPCOM Manual v1.0
Page 16
