Audio Control

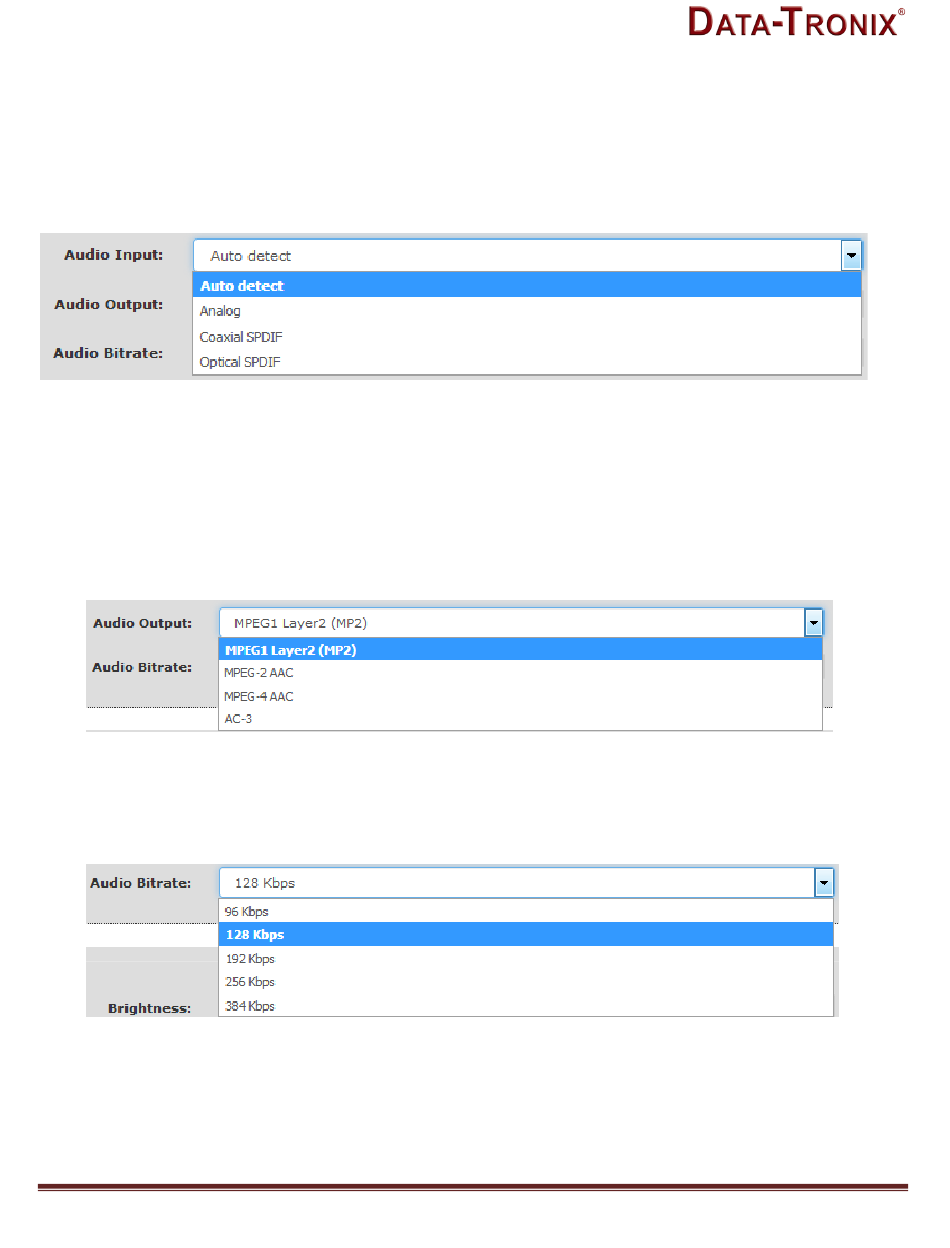

Select Audio Input
Setting the device to Auto detect allows the Encoder to automatically recognize which Audio Input source the user is
using.
Selecting Analog, Coaxial SPDIF (Digital Coax), or Optical SPDIF (Toslink) "locks" the encoder to detect only this type
of Audio Input.
Note: We recommend using the Factory default 'Auto Detect'
Application Note:
If your Video Source is HDMI and you require an alternate Audio Source – Select Analog.
This will force the DT-HDIPCOM to use the L/R RCA Audio Inputs as the Audio Source.
Select Audio Output Type
Use the drop-down tool to Select the Audio Format required.
Note: AC-3 Dolby Audio is not available on all HDIP Series Encoders
Select Audio BitRate
Use the drop-down tool to Select the Audio Bitrate required
