Color Control; Enable Closed Captioning - Data-Tronix DT-HDIPCOM Installation & Configuration Manual

Color Control

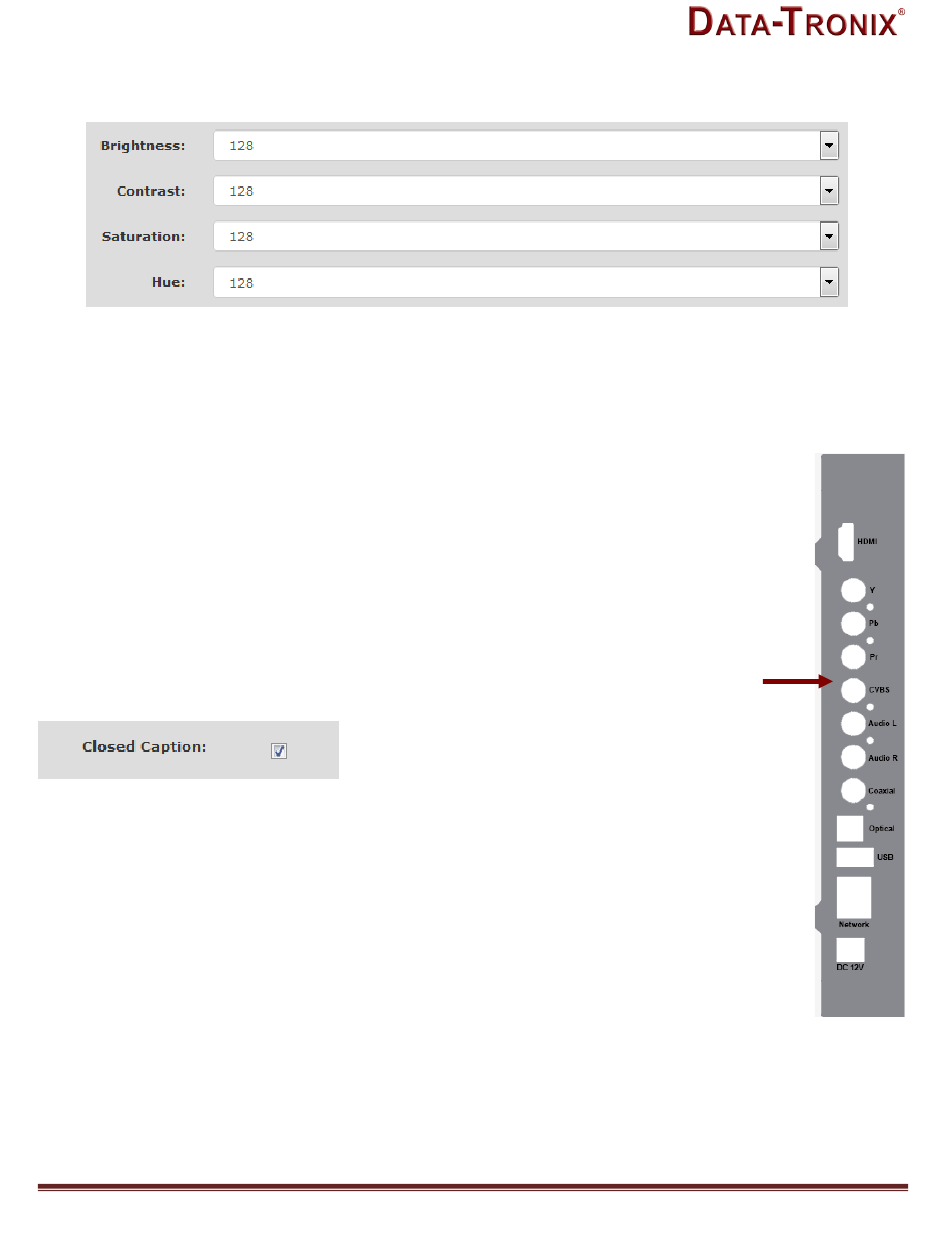

Modify Brightness/Contrast/Saturation/Hue
Change the above settings as required on the Encoder.
Note: We recommend using the Factory default. Factory Default: 128
Saving Changes
Save all/any changes made on the Encoder Page. Leaving the Encoder page without using the 'Save and Confirm'
button will cause the encoder to keep the previous saved settings.

Enable Closed Captioning

Steps to Enable Closed Caption:
1. Connect Video source to HDMI or YPbPr port.
2. Connect Video with supporting Closed Caption source to CVBS port.
3. A supporting Closed Caption Player/TV must be used for this function.
Insert Closed Caption Support device into the CVBS (Composite) Port
Enable/Disable Closed Caption Functionality by checking the Checkbox as
shown above.
Note: Even with Closed Captioning enabled in the encoder- no closed captioning
support will be available unless the Closed Captioning Source is connected.
'Save and Confirm' the changes made on the Encoder Page.
Note: To reset all changes made or saved go to the Administration Page and select 'Reset to Default'
After pressing the 'Save and Confirm' button- the user will be brought back to the Overview page.
If you leave the encoder page without saving your changes the encoder will use the previous settings saved.
