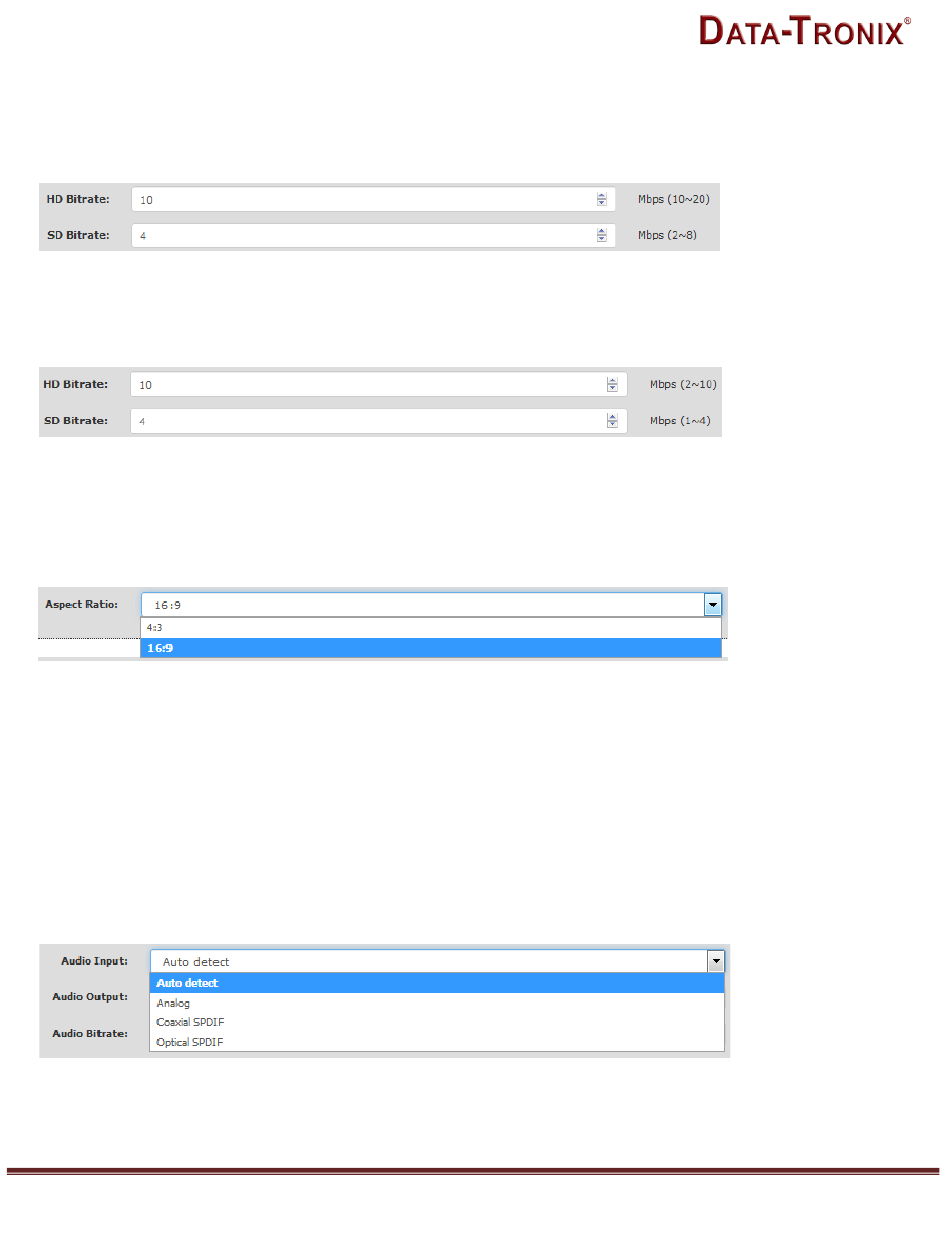

Setting the Video Bitrate: HD / SD
MPEG-2 Video Bitrates
HD: 10~20 Mbps (default- 10 Mbps)
SD: 2~8 Mbps (default- 4 Mbps)
H.264 Video Bitrates
HD: 2~10 Mbps (default- 10 Mbps)
SD: 1~4 Mbps
(default- 4 Mbps)
The DT-HDIPUS allows the user to Set the Video Bitrate desired within the defined parameters offered.
Set or use the default settings as required.
Select Aspect ratio
Select :16:9 (default) or 4:3
Audio Control
Select Audio Input
Setting the device to Auto Detect allows the Encoder to automatically recognize which Audio Input source the
user is using.
Selecting Analog, Coaxial SPDIF (Digital Coax), or Optical SPDIF (Toslink) "locks" the encoder to detect only
this type of Audio Input.
Note: We recommend using the Factory default 'Auto Detect'
NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-HDIPUS Manual v1.0
Page 12
