The Kramer SID-VGA UXGA Step-In Commander
Congratulations on purchasing your Kramer DigiTOOLS
Commander which is ideal for boardrooms and presentation rooms.
The Kramer SID-VGA is a VGA (up to UXGA) and unbalanced stereo audio remote
control panel that is used to remotely take control of a compatible switcher, for example,
the VP-81SID.
Figure 1
and
Table 1
define the SID-VGA UXGA Step-In Commander.

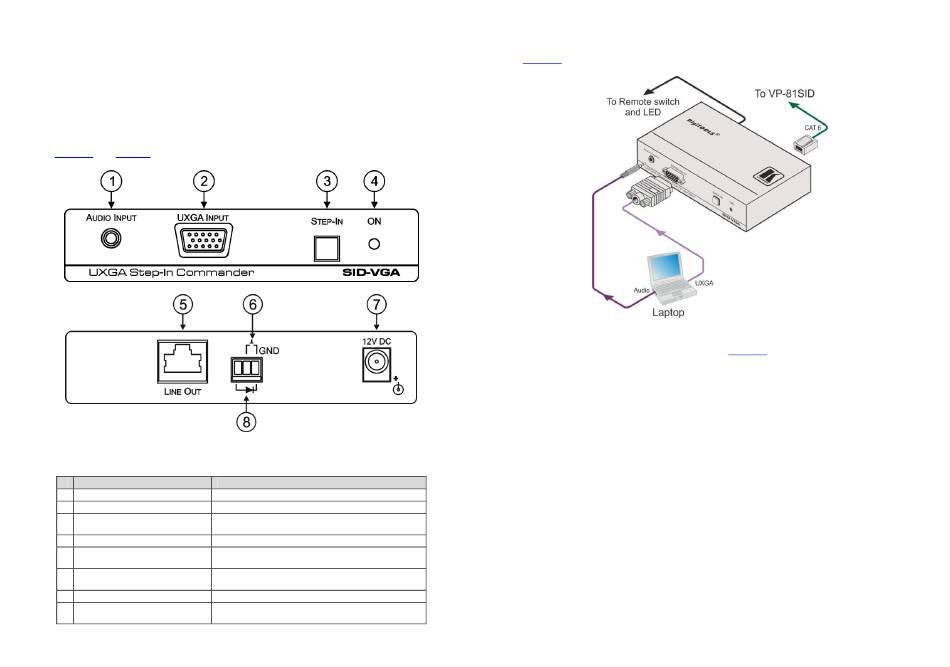

Figure 1: SID-VGA UXGA Step-In Commander Front and Rear Panel
Table 1: SID-VGA UXGA Step-In Commander Front and Rear Features
#
Feature
1
AUDIO INPUT 3.5mm Mini Jack
2
UXGA INPUT 15-pin HD Connector
3
STEP IN Button
4
ON LED
5
LINE OUT Twisted Pair RJ-45
Connector
6
Remote Switch Terminal Block
Connections
7
12V DC Power Connector
8
Remote LED Terminal Block
Connections
www.camboard.de
®
SID-VGA UXGA Step-In
Function
Connect to the unbalanced stereo audio source
Connect to the VGA video source
Press to switch the input to this remote control commander. The
button lights when active
Lights green when the unit receives power
Connect to the TP input of a compatible switcher (for example,
the VP-81SID) using CAT 6 or higher specification cable
Connect to the remote step-in switch
Connect to the power adapter
Connect to the remote LED (observe correct polarity as shown
in the graphic)
CAMBOARD Electronics
Figure 2
illustrates how to connect the SID-VGA to a source and switcher.
To connect the SID-VGA as illustrated in
1. Connect the VGA video source (for example, a computer graphics source) to the
VGA connector on the front panel of the SID-VGA.
2. Connect the unbalanced stereo audio source (for example, a computer graphics
source) to the 3.5mm mini jack AUDIO INPUT connector on the front of the
SID-VGA.
3. Using STP cable, connect the LINE OUT RJ-45 connector on the rear panel of the
SID-VGA to one of the inputs on the rear panel of the VP-81SID (up to 50m
away).
4. Optional—Connect the terminal block on the rear of the SID-VGA to the remote
switch and LED.
Note: The LED supply includes a current limiting resistor and is designed to work
with any standard LED.
5. Connect the power adapter to the 12V DC connector on the rear of the SID-VGA
and to the mains electricity.
Tel. 07131 911201
Fax 07131 911203
Figure 2: SID-VGA Wiring Connections
Figure
2:
