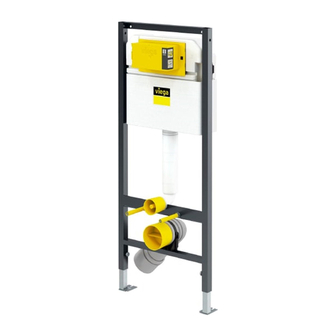

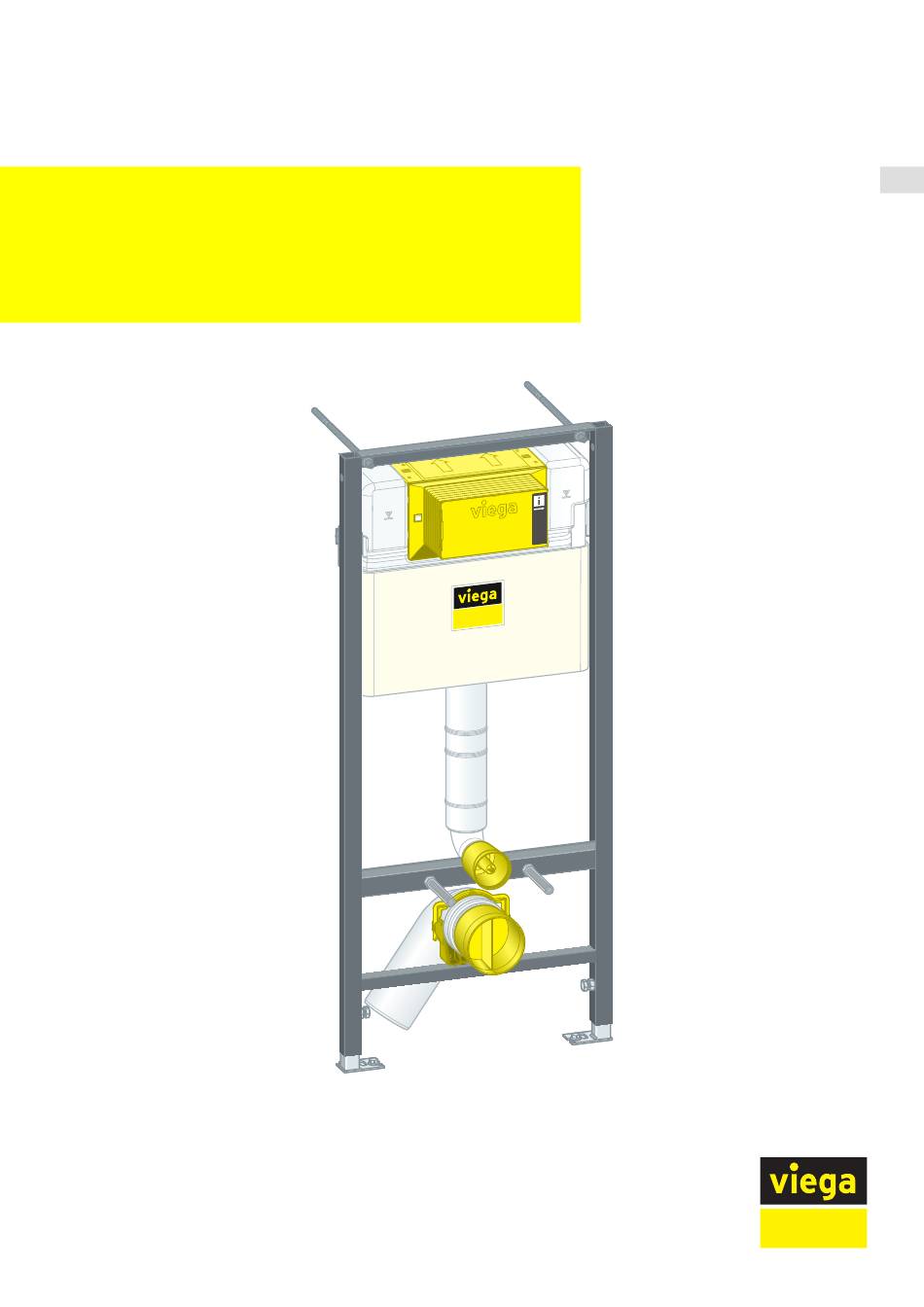

- Page 1 Instructions for Use Prevista Dry WC element building project version for WC flush plates for Prevista Model Year built (from) 8524.19 07/2019...
-
Page 2: Table Of Contents
Table of contents Table of contents About these instructions for use 1.1 Target groups 1.2 Labelling of notes 1.3 About this translated version Product information 2.1 Standards and regulations 2.2 Intended use 2.2.1 Areas of use 2.3 Product description 2.3.1 Overview 2.3.2 Compatible components... -
Page 3: About These Instructions For Use
This restriction does not extend to possible operating instructions. The installation of Viega products must take place in accordance with the general rules of engineering and the Viega instructions for use. -
Page 4: About This Translated Version
About these instructions for use About this translated version This instruction for use contains important information about the choice of product or system, assembly and commissioning as well as intended use and, if required, maintenance measures. The information about the products, their properties and application technology are based on the current standards in Europe (e.g. -
Page 5: Product Information
Product information Product information Standards and regulations The following standards and regulations apply to Germany / Europe and are provided as a support feature. Regulations from section: Fields of application / Mounting conditions Scope / Notice Regulations applicable in Ger‐ many Suitable masonry walls EN 1996-1-1... -
Page 6: Product Description
Product information Product description 2.3.1 Overview Fig. 1: Components concealed cistern 3L Drain elbow Holder for drain elbow Reducer threaded rods for wall-mounted WC (gauges for bore hole 180 or 230 mm) Screws and dowels for fixing in the floor Screws for fixing in support profile Mounting set for WC ceramic flushing pipe... -
Page 7: Technical Data
Product information The WC element can be extended by the following compatible compo‐ nents: Accessory set connection electronic model 8655.11 ▶ Mount the components in accordance with the respective instruc‐ tions for use. 2.3.3 Technical data Flush volume Small flush volume Factory setting approx. -
Page 8: Handling
Handling Handling Assembly information 3.1.1 Mounting conditions Suitable walls The wall constructions must comply with the regulations in section Ä „Regulations from section: Fields of application / Mounting condi‐ tions“ on page 5. The WC element may only be mounted on even wall surfaces. Construction height With the construction height, the marked height of the upper edge of the finished floor must be observed. -
Page 9: Installation Dimensions
Mounting WC element Masonry and concreted walls When mounting multiple WC elements with an interval of > 500 mm, Viega recommends the use of a Prevista Dry support bracket (model 8570.48). Observe the instructions for use of the support bracket when mounting. - Page 10 Handling Mounting to a masonry wall ▶ Determine and mark the fixing points. X1: 1100 mm X2: 390 mm ▶ Drill the holes. ▶ Insert the dowels. ▶ Mount the fixing set. ▶ Determine and mark the fixing points on the floor. X3: 375 mm ▶...
- Page 11 Handling ▶ Loosen the feet of the element using a fork spanner. ▶ Adjust the construction height of the element in accordance with the on-site marking of the upper edge of the finished floor. X: 1000 mm ▶ Tighten the feet of the element using a fork spanner. ▶...
-
Page 12: Connecting Concealed Cistern
Handling 3.2.2 Connecting concealed cistern ▶ Turn the cover plate lock 90° in anti-clockwise direction. ▶ Remove the cover plate. ▶ Remove the plug. ▶ Insert an empty pipe. Prevista Dry WC element building project version... - Page 13 Handling ▶ Fasten the empty pipe in the cistern. ▶ Mount the screw fittings. ▶ Mount the corner valve. ▶ Fasten the corner valve. Prevista Dry WC element building project version...
- Page 14 Handling ▶ Connect the corner valve. ▶ Insert the cover plate into the cistern. ▶ Turn the cover plate lock by 90° in a clockwise direction. ▶ Place the revision shaft on the cover plate. Prevista Dry WC element building project version...
- Page 15 Handling To remove the revision shaft, press in the fixing clips at the side. Prevista Dry WC element building project version...
-
Page 16: Mounting The Drain Elbow
Handling 3.2.3 Mounting the drain elbow ▶ Insert the mounting bracket for the drain elbow. ▶ Insert the drain elbow to the desired depth. ▶ Fasten the drain elbow using the bow. ▶ Fit the site protection. Prevista Dry WC element building project version... -
Page 17: Set And Clad The Wc Element
Handling 3.2.4 Set and clad the WC element ▶ Turn in the threaded rods by hand. For 180 mm gauge for bore hole: Counter the threaded rods in front of the element with a nut. ▶ Place the protective caps on the threaded rods. ▶... -
Page 18: Setting The Flush Volume
Handling ▶ Clad the element with suitable gypsum cardboard cladding panels. 3.2.5 Setting the flush volume For an electronic flush actuation, the small flush volume must be set to 2 litres. Prevista Dry WC element building project version... - Page 19 Handling Requirements: The cistern is freely accessible. The water supply has been shut off. The ceramic has been mounted. ▶ Fold the tabs forward. ▶ Lift the drain valve. ▶ Remove the drain valve through the revision opening. Prevista Dry WC element building project version...
- Page 20 Handling ▶ Set the large flush volume at the drain valve. ▶ Set the small flush volume at the drain valve. Setting the flush flow Requirements: The drain valve has been dismounted. The flushing throttle has been removed. ▶ Unlock the flushing throttle. ▶...
-
Page 21: Cleaning And Maintenance
Handling ▶ Lock the flushing throttle. Cleaning and maintenance Cleaning and maintenance of the concealed cistern The concealed cistern is constantly under mechanical, chemical, and physical stress. For this reason, the components must be cleaned as required, and the drain and filling valve seals renewed. In areas or regions with hard water due to high concentration of calcium or magnesium salts, there is the risk of limescale deposits developing on the inlet and drain valves. - Page 22 Viega Technology GmbH & Co. KG service-technik@viega.de viega.com INT • 2020-02 • VPN190317...
