Prevista Dry frame element 1120–1300 mm
Instructions for Use
For support hinged handles
Model
8570.34
en_INT
Year built:
from 10/2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8570.34 and is the answer not in the manual?

Questions and answers

Summary of Contents for Viega 8570.34

  • Page 1 Prevista Dry frame element 1120–1300 mm Instructions for Use For support hinged handles Model Year built: 8570.34 from 10/2018 en_INT...
  • Page 2 Prevista Dry frame element 1120–1300 mm 2 from 9...
  • Page 3: Table Of Contents

    Table of contents Table of contents About these instructions for use Target groups Labelling of notes About this translated version Product information Intended use 2.1.1 Areas of use Product description 2.2.1 Overview Handling Assembly information 3.1.1 Installation dimensions Assembly 3.2.1 Mounting in Prevista Dry Plus Disposal Prevista Dry frame element 1120–1300 mm...
  • Page 4: About These Instructions For Use

    This restriction does not extend to possible operating instructions. The installation of Viega products must take place in accordance with the general rules of engineering and the Viega instructions for use.
  • Page 5: About This Translated Version

    About these instructions for use About this translated version This instruction for use contains important information about the choice of product or system, assembly and commissioning as well as intended use and, if required, maintenance measures. The information about the products, their properties and application technology are based on the current standards in Europe (e.g.
  • Page 6: Product Information

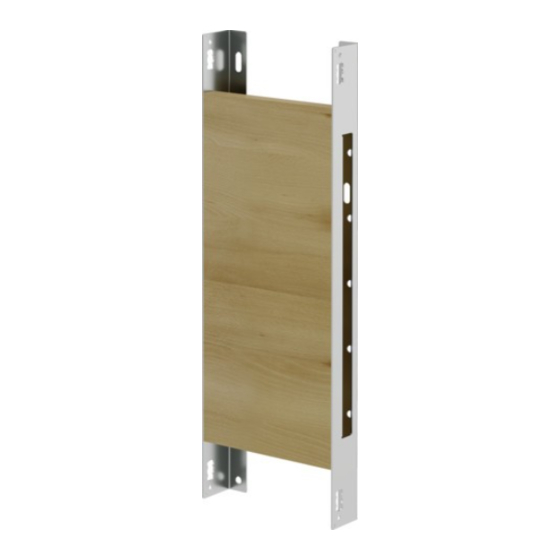

    Product information 2 Product information Intended use 2.1.1 Areas of use The Prevista Dry Plus fixing element is used for fixing support hinged handles onto Prevista Dry WC elements in a Prevista Dry Plus pre-wall construction. Product description 2.2.1 Overview Fig.
  • Page 7: Handling

    Handling 3 Handling Assembly information 3.1.1 Installation dimensions Fig. 2: Dimensions Assembly 3.2.1 Mounting in Prevista Dry Plus Fixing without WC element The two vertical mounting rails, which surround the element, must be open towards the module and have an inner dis‐ tance of 420 mm.
  • Page 8 Handling Secure the element onto the open mounting rail with the slot nuts supplied: Insert the slot nut into the opening of the module. Push the slot nut in until it engages. Set the height of the mounting rail. Fasten the slot nut. 25 Nm Prevista Dry frame element 1120–1300 mm 8 from 9...
  • Page 9: Disposal

    Handling Set the heights of the element. Fixing at the Prevista Dry WC element Fasten the mounting rail (model 8401) at the wall pursuant to the instructions for use for the Prevista Dry Plus system. Use the bolts to fasten the element to the mounting rails. Disposal Separate the product and packaging materials (e.
