INTERFACING SOLUTIONS
PRODUCT FEATURES:
- Smart-Play Integration system allows connection of Android and other devices to the iDrive infotainment system.
- Control Apps using smartphone's voice control feature or the factory iDrive Knob.
- Adds aftermarket rear view camera input.
- Picture-in-picture mode combining after-market rear-view picture with factory parking sensor graphics.
- Built-in on-screen display and setup.
- 1 trigger output (+12V max. 1A) for the camera power.
NOTE
- Android Phones must have a firmware version of 8 and above.
- For 2007 & up vehicles without a factory AUX input, add on the CRUX AUX-BM4 for audio.
- For 2007 & below vehicles without a factory AUX input, add on the CRUX AUX-BM5 for audio.

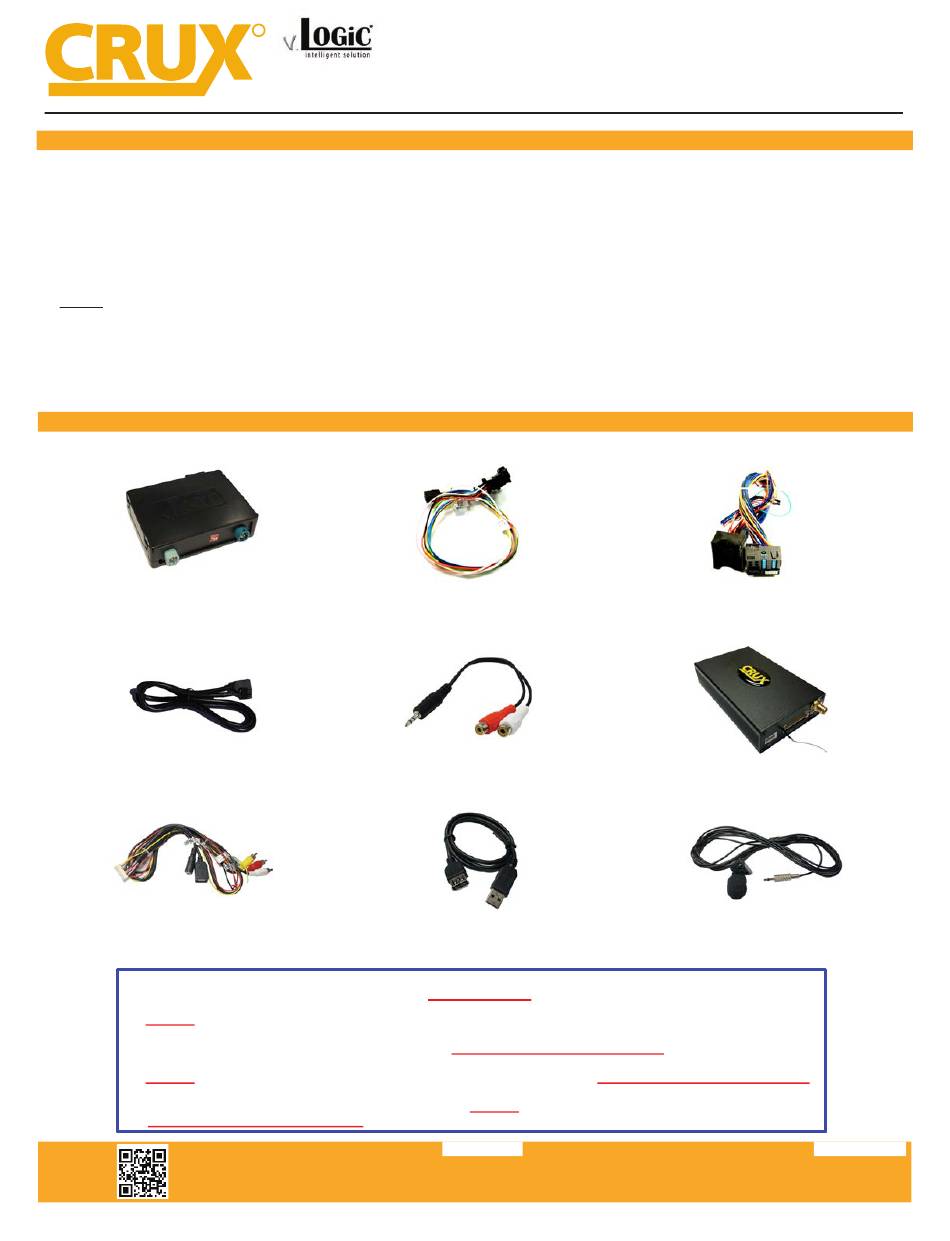

PARTS INCLUDED:

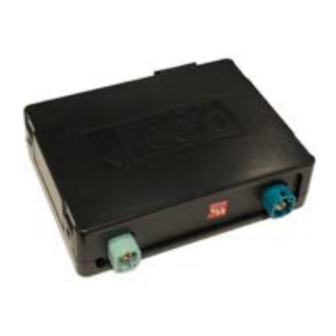

ACPBM-77X Module
LVDS10 Cable
Smart-Play
Power/Video Harness
1. DO NOT connect the Quadlock Connector to Factory Radio CD Headunit UNLESS the 10 Pin LVDS Cable has
been properly and completely connected to factory display and all the other 10 Pin LVDS cable connections have
been made according to the wiring diagram above or the factory display will be damaged;
2. DO NOT connect the 10 Pin LVDS Cable when the Radio is Powering ON or the factory display will be damaged;
3. When the Radio CD Headunit is active (powered ON ), DO NOT disconnect any of the 10 pin LVDS Connections
or the factory display will be damaged.
Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311
R
E Series BMW with CCC Systems (6.5" or 8.8" Monitor) and 10-Pin LVDS Connector
Power/CAN Harness
3.5mm to RCA Adapter
USB Extension Cable
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
Smart-Play Integration with Rear-View Camera Input for
WARNING
1 of 12
ACPBM-77X
ACPBM-77X Vehicle Harness
Smart-Play Interface Module
Microphone
rev.072419
Advertisement
Table of Contents
Related Manuals for Crux ACPBM-77X
Summary of Contents for Crux ACPBM-77X
- Page 1 - Android Phones must have a firmware version of 8 and above. - For 2007 & up vehicles without a factory AUX input, add on the CRUX AUX-BM4 for audio. - For 2007 & below vehicles without a factory AUX input, add on the CRUX AUX-BM5 for audio.
-
Page 2: Installation Diagram
2 of 12 Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311 1. DO NOT connect the Quadlock Connector to Factory Radio CD Headunit UNLESS the 10 Pin LVDS Cable has phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com been properly and completely connected to factory display and all the other 10 Pin LVDS cable connections have been made according to the wiring diagram above or the factory display will be damaged;... -
Page 3: Installation Instructions
9. Plug in the LVDS10 cable in place of from the back side of the LCD monitor. the factory gray LVDS connector. 3 of 12 rev.072419 Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311 phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com... - Page 4 Quadlock connector to the 77X harness. you can remove the coder. ACPBM-77X harness (Female side). 4 of 12 rev.072419 Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311 phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com...
- Page 5 27. Connect the camera power wires to the ACPBM-77X module. the PINK power output 1 wire. 5 of 12 rev.072419 Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311 phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com...
- Page 6 LEDs are on. Video harness for easier access when connecting your smart-phone or USB. 6 of 12 rev.072419 Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311 phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com...
-
Page 7: Osd Settings
The ACPBM-77X u�lizes wireless technology for Apple devices. Android devices are required to be plugged in to the USB port using the smartphone’s OEM charger/data cable. The USB port on the ACPBM-77X can be used to charge the Apple device or play videos or music from a USB thumb drive. ACPBM-77X Switch the vehicle’s audio source to the AUX source. - Page 8 Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311 phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com 8 of 12 rev.072419...
-
Page 9: Menu Item Setting
NOTE: The Video-In-Mo�on func�on is permanently ac�ve without disturbing the naviga�on performance. Selecting the Interface as Current AV Source 9 of 12 rev.072419 Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311 phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com... - Page 10 Tip: We recommend for all camera to use power out setting “Cam” and for Smart-Play the power out setting of “CAN”. 10 of 12 rev.072419 Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311 phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com...
-
Page 11: Image Settings
Version X.XX.XX Displays the current SW-version Option 1 Factory Reset Reset to factory default settings 11 of 12 rev.072419 Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311 phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com... -
Page 12: Vehicle Applications
E-series with Naviga�on System or radio with 6.5“ or 8.8“ monitor and 10-PIN LVDS Connector 12 of 12 rev.072419 Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311 phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com...
