Crux Logic ACPBM-77Y Manual

Smart-play integration with rear-view camera input for e & f series bmw vehicles with cic infotainment systems
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ACPBM-77Y
R
Smart-Play Integration with Rear-View Camera Input for
E & F Series BMW Vehicles with CIC Infotainment Systems
INTERFACING SOLUTIONS
PRODUCT FEATURES:
- Smart-Play Integration system allows connection of Android and other devices to the iDrive infotainment system.
- Control Apps using smartphone's voice control feature or the factory iDrive Knob.
- Adds aftermarket rear view camera input.
- Picture-in-picture mode combining after-market rear-view picture with factory parking sensor graphics.
- Built-in on-screen display and setup.
- 1 trigger output (+12V max. 1A) for the camera power.
*NOTE: Android Phones must have a firmware version of 8 and above.

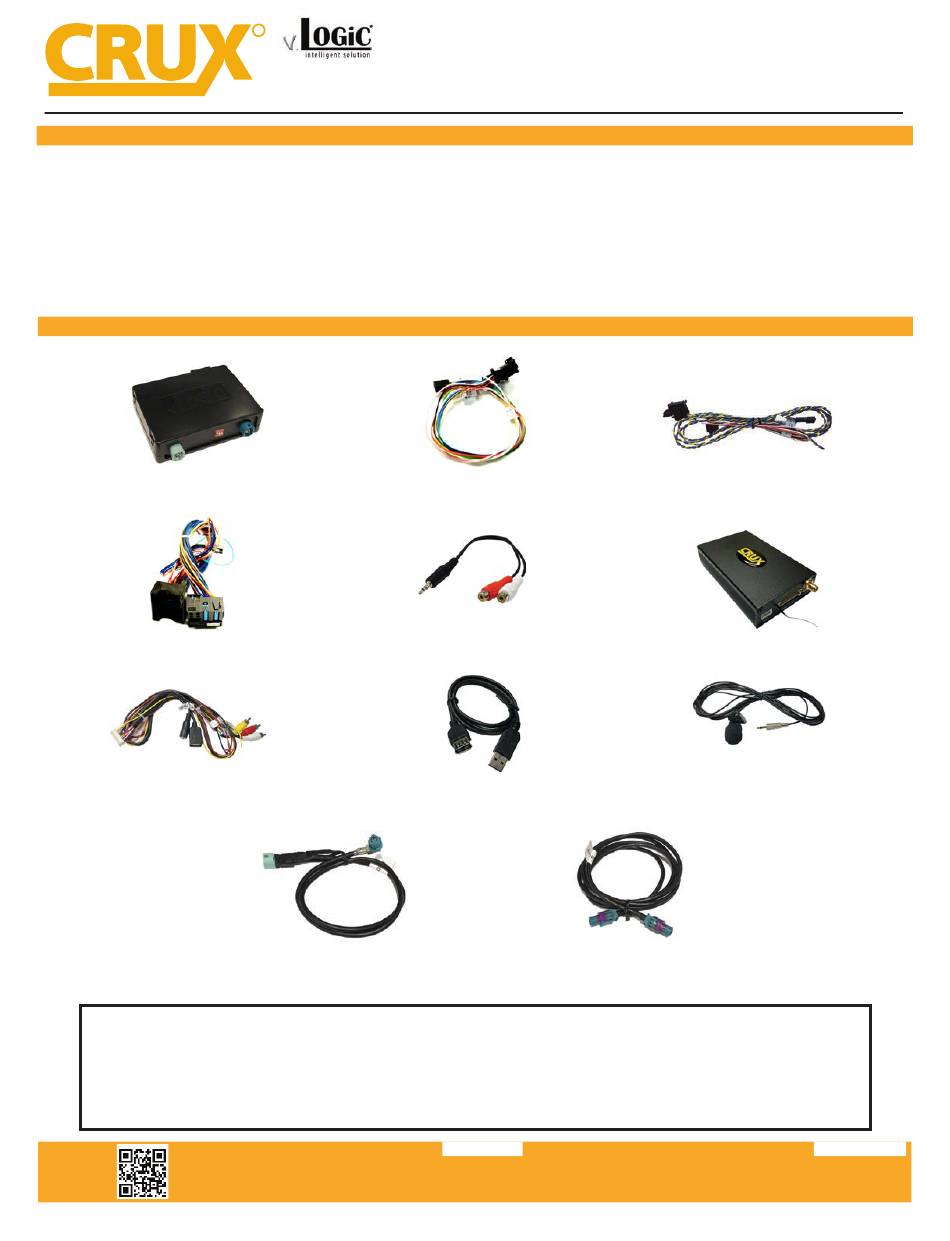

PARTS INCLUDED:

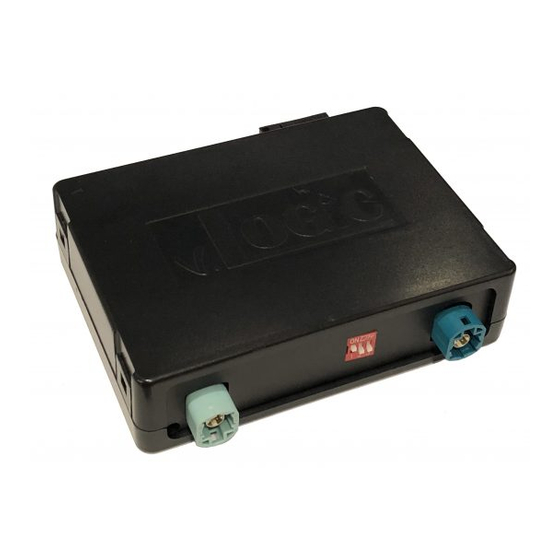

ACPBM-77Y Module
Power/CAN Harness 1 (E-Series)
Power/CAN Harness 2 (F-series)
ACPBM-77Y Vehicle Harness
3.5mm to RCA Adapter
Smart-Play Interface Module
Smart-Play
USB Extension Cable
Microphone
Power/Video Harness
LVDS 1 Cable (to vehicle)
LVDS 2 Cable (to radio)
NOTE:
This kit has two seperate POWER/CAN harnesses. Only use the harness that's designed for your
vehicle.
POWER/CAN 1 - E-Series Trims
POWER/CAN 2 - F-Series Trims
1 of 13
rev.072419
Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Logic ACPBM-77Y and is the answer not in the manual?

Questions and answers

Related Manuals for Crux Logic ACPBM-77Y

Summary of Contents for Crux Logic ACPBM-77Y

  • Page 1 This kit has two seperate POWER/CAN harnesses. Only use the harness that’s designed for your vehicle. POWER/CAN 1 - E-Series Trims POWER/CAN 2 - F-Series Trims 1 of 13 rev.072419 Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311 phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com...

  • Page 2: Installation Diagram

    2 of 13 1. The Interface is installed behind the headunit and needs a constant +12V power source. Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311 phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com 2 of 12 rev.040119...

  • Page 3: Installation Instructions

    8. Remove the Headunit to gain access 9. Unplug the Quadlock connector Headunit. to its backside. from behind the radio. 3 of 13 rev.072419 Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311 phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com...
  • Page 4 ACPBM- ACPBM-77Y harness to the Headunit. from the Headunit. 77Y harness. 4 of 13 rev.072419 Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311 phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com...
  • Page 5 Both 4 & 10 pin connectors have the same pin positions. the Power/CAN 2 harness. removed earlier). 5 of 13 rev.072419 Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311 phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com...
  • Page 6 AUX input. tion of your choice. jack to the MIC input on the Power/ Video harness. 6 of 13 rev.072419 Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311 phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com...
  • Page 7 Harness CAN-High (Yellow) Female 10-Pin iDrive Connector CAN-Low Pin 4 (Green) CAN-High Pin 3 (Green/Orange) 7 of 13 rev.072419 Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311 phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com...
  • Page 8 Rear CAM > Video Input (Smart-Play) > Repeat ... To exit the Smart-Play menu, hold the “Menu” button for 3-5 sec 8 of 13 rev.072419 Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311 phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com...
  • Page 9 Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311 phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com 9 of 13 rev.072419...

  • Page 10: Menu Item Setting

    NOTE: The Video-In-Mo�on func�on is permanently ac�ve without disturbing the naviga�on performance. Selecting the Interface as Current AV Source 10 of 13 rev.072419 Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311 phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com...
  • Page 11 Tip: We recommend for all camera to use power out setting “Cam” and for Smart-Play the power out setting of “CAN”. 11 of 13 rev.072419 Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311 phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com...

  • Page 12: Image Settings

    Version X.XX.XX Displays the current SW-version Option 1 Factory Reset Reset to factory default settings 12 of 13 rev.072419 Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311 phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com...

  • Page 13: Vehicle Applications

    Your vehicle must have this CIC infotainment system to use this product. rev.040119 12 of 12 Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311 phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com 13 of 13 rev.072419...
