Summary of Contents for RuggON RUGGPAD PX-501

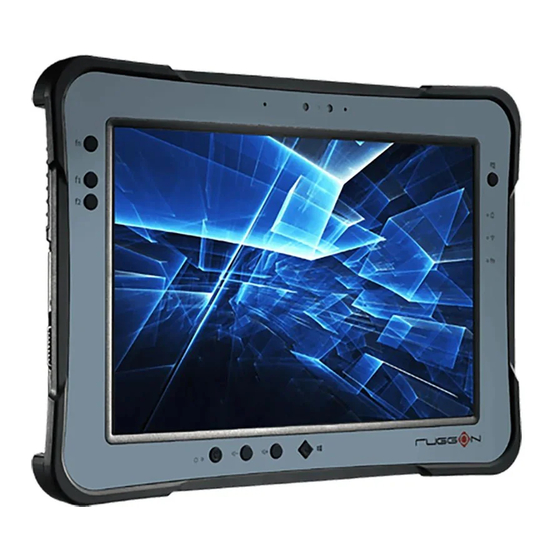

- Page 1 PX-501 FAQ/Troubleshooting Guide...
- Page 2 Table of Contents: Display & Touch …………………………………………………………………………………………..3 Peripherals ……………………………………….……………………………………………………4 BIOS , OS, General Software …...……………………………………………………………………10 Power & Battery ………………………………………………………………………………………..17...
- Page 3 Q: How to calibrate touch screen for Windows platform No Need. The touch screen has been fine-tuned for Windows environment. Q: How can I change my Windows 7 desktop icon size? A: Go to Start > Control Panel > Display > Make text and other items larger or smaller. Choose "Medium - 125%"...
- Page 4 Q: How to troubleshoot if 2D barcode scanner failed to scan properly A:Supported Decode Mode : 1D symbologies: EAN/UPC, RSS, Code 39, Code 128, UCC/EAN 128, ISBN, ISBT, Interleaved, Matrix, Industrial and Standard 2 of 5, Codabar, Code 93/93i, Code 11, MSI, Plessey, Telepen, postal codes. 2D symbologies: Data Matrix, PDF417, Micro PDF 417, Maxicode, QR, Aztec, EAN.UCC composite You can set up your 2D barcode scanner in a basic configuration by scanning configuration barcodes using the right/left trigger button.
- Page 5 Basic Function Test When the Barcode scanner has been configure as USB cable mode- Keyboard HID, you can execute the Notepad utility to perform simple function test: Windows: Q: How to install WWAN module: 1) Please open the service door on the bottom case and find the WWAN slot.
- Page 6 2) Install the WWAN module and secure by screw, connect both AUX and MAIN antenna cables. Place Acetate tape attach on both connections.
- Page 7 Q: SnapOn Smartcard / NFC Test Guide 1. If your OS is provided by Ruggon, you can find the test utility in C:\Drivers/SCR, extract the RCC utility. 2. Smartcard insert direction 3. A yellow circle will appear on the icon if a card read correctly.
- Page 8 SnapOn NFC:...
- Page 10 Q: GPS Function Demo: Please download u-center GPS evaluation software to test GPS module : http://www.u-blox.com/en/evaluation-tools-a-software/u-center/u-center.html 1). Set baud rate to 9600bps 2). Connect to GPS module via appropriate serial port# 3.If your demonstration is indoor and not able to receive the GPS signal well, you can open the Text Consol to see whether the NMEA code is constantly displaying or not.
- Page 11 3-1:REAL Outdoor GPS Working Situation:...
- Page 12 Q:Why light sensor doesn’t work? 1. Please make sure the DashOn utility can be found in Desktop. If not, please contact technical service representative to download and install it. 2. Please check the Brightness setting is in Auto or Manual mode 3.
- Page 13 Q:How to enter BIOS CMOS Setup A:1.After system power on, press and hold tablet’s Home button immediately till Boot Menu show up. 2.Touch “Main” to enter Setup.
- Page 14 AC power adapter must attach to tablet in order to avoid battery power lost during below BIOS/EC re-flash and OS recovery. Q:How to do BIOS/EC Re-flash Because BIOS re-flash must be done under system Internal Shell environment. So, please well prepare a FAT32 formatted USB pen drive.
- Page 15 To update EC: after entering EC data folder, simply execute F; command example: fs1:->change drive path to USB pen drive dir:Display data folder cd EC file folder Q: OS image Recovery Guide: 1. Preparing a 16GB(min.) FAT32 formatted USB pen drive. Copying all the image files(folder no need) to USB pen drive then inserting to tablet.
- Page 16 5. Touch to select USB pen drive. 6. Once WinPE boots up, Recovery will auto start. **When the recovery complete, system will return to DOS prompt like above of DOS prompt. You cannot reboot the system by Ctrl+Alt+Del key but just simply press Power button to turn off system.
- Page 17 A: Windows Embedded 8.1 Industry Pro / Windows 10 IoT provides activation check/activate via Internet. If your tablet’s OS originally come from RuggON, you can just skip the activation product key fill in at 1’st startup setting. Once the OS boots up, make sure the Internet connection well. OS activation will auto executive after 10~15 min.
- Page 18 Q:Why system can’t boot from USB pen drive? A: Mostly caused by incompatible with USB 2.X or below pen drive due to the system is designed main for USB 3.0 support. Please refer above topic of How to Enter BIOS CMOS Setup to change below items: Main=>Boot Features=>CSM Support:YES, Legacy Boot:On Advanced=>System Component=>xHCI...
- Page 19 2). Right click on speaker icon in task bar, and select "Recording devices". Click "Microphone", and select "Properties" and go to "Levels" tab to adjust MIC recording level and MIC boost gain accordingly.
- Page 20 Q: External battery not detected A: Please check if the lock/unlock latch on the external battery is switched to “Lock” position for battery detect Battery unlock Battery locked Battery release clip...
- Page 21 Appendix - Barcode Scanner Setup...
