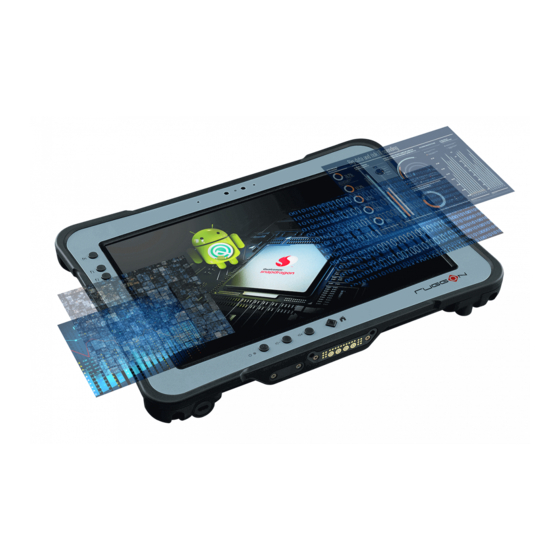

Rugged tablet pc
Hide thumbs Also See for PA-501:
Table of Contents

Advertisement

Quick Links

PA-501
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PA-501 and is the answer not in the manual?

Questions and answers

Related Manuals for RuggON PA-501

Summary of Contents for RuggON PA-501

  • Page 1 PA-501 User's Manual...
  • Page 2 ©2015 RuggON Corporation. All rights reserved. TRADEMARKS RuggON logo is a trademark of RuggON Corporation, registered in the United States Patent and Trademark Office and in other countries. Microsoft and the Windows logo are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

  • Page 3: Table Of Contents

    Lithium Battery Safety Statement ..............5 Chapter 1. Introduction About This Guide ..................7 Unpacking the Device ...................7 Technical Specifications ................7 PA-501 Configuration Options ..............9 Parts List .....................10 Identifying the Device ................. 11 Dimensions ....................16 Touch Screen Features ................17 Chapter 2. Getting Started First Time Use ....................18...
  • Page 4 Handstrap, Carrying Handle and Shoulder Strap ........30 Installing the Standard Battery ..............34 Removing the Standard Battery ..............35 Connecting to a Wireless Network .............36 Chapter 4. Troubleshooting Chapter 5. Maintenance Cleaning the Device ...................42 Returning the Device ..................42 Contacting RuggON ...................42...

  • Page 5: About This Manual

    About This Manual The PA-501 User’s Manual provides instruction for qualified personnel to follow when setting up a new PA-501 device. This document is intended for use by qualified personnel to compliment the training and expertise, not to replace it.

  • Page 6: Basic Safety Guidelines

    The PA-501 is designed and manufactured according to strict controls and following the stated safety regulations. The following list identifies incorrect operating uses of the PA-501. Incorrect use of the PA-501 can lead to hardware damage, safety issues and possible risk to personnel health: „...

  • Page 7: Safety

    Environmental Ambient Temperature The PA-501 operates on the basis of a passive cooling concept which internal waste heat is released via the housing surface and requires fresh airflow in the environment. „ Operating the PA-501 with no fresh cooling air may cause overheating and damage to the device.

  • Page 8: Radio Transmissions

    The operator is solely responsible for this type of operation. Radio Frequency Limited Locations Considering the radio frequency limitation in hospitals and aircraft, the PA-501 can only be installed with permission. Industrial computers may affect the function of implanted medical devices such as pacemakers and may cause malfunction.

  • Page 9: Lithium Battery Safety Statement

    Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment. This device is operation in 5.15 – 5.25GHz frequency range, then restricted in indoor use only, Outdoor operations in the 5.15 – 5.25GHz is prohibit. This device is slave equipment;...

  • Page 11: Chapter 1. Introduction

    5 MP AF rear camera with LED flash About This Guide The PA-501 User Manual provides instruction for qualified personnel to use as a guide for setup of the device. This document is not intended to replace the training and expertise of the end-user.
  • Page 12 Introduction Item Description „ Standard hot swappable battery: 10.8V, 4500mAh, Li-polymer „ Battery Extended hot swappable battery: 10.8V, 9000mAh, Li-polymer (optional) Power Supply AC 100V ~ 240V, 50~60Hz input; 19VDC@3.42A, 65W Dimensions (W x H x L) 280 mm (11”) x 23 mm (0.9”) x 195 mm (7.7”) Weight 1.32 kg (2.9 lbs) Wireless...

  • Page 13: Pa-501 Configuration Options

    -20°C (-4°F) to 60°C (140°F) Range Storage Temperature -30°C (-22°F) to 70°C (158°F) Range Humidity 5-95% without condensation PA-501 Configuration Options The following options are available for the PA-501: „ NFC module „ Barcode reader „ Smart card reader „...

  • Page 14: Parts List

    Introduction Parts List The PA-501 is shipped with the following items. All other accessories are sold and ordered separately. For help, contact your local RuggON sales representative. See “Contacting RuggON” on page 42. PA-501 Power Adapter Stylus Micro USB cable...

  • Page 15: Identifying The Device

    Introduction Identifying the Device Overview Figure 1. Overview Table 2. Overview Item Description See “Side View” on page 14 for further information. Left view See “Front View” on page 12 for further information. Front view See “Rear View” on page 15 for further information. Rear view See “Side View”...

  • Page 16: Front View

    Android home key. Volume + Volume increase. Volume - Volume decrease. Power key Turns the PA-501 on or off. Power LED The power LED lights when the device is on. F2 key Programmable function key. F1 key Programmable function key.

  • Page 17: Bottom View

    Bottom View Figure 3. Bottom View Table 5. Bottom View Item Description Docking connector 12 pin connector for docking onto a station. Kensington lock Lock the PA-501 to a stationary object for security. Pass-through Dual pass-through for WLAN, GNSS and WWAN.

  • Page 18: Side View

    Connect computer for data synchronization. Audio jack Connect a 3.5 mm jack for a headphone or external speakers. Ethernet Connect the PA-501 to an Ethernet (RJ-45) cable. DC-IN jack Insert power connector to charge battery. RS-232 Connect the PA-501 to a serial device.

  • Page 19: Rear View

    Introduction Rear View Figure 5. Rear View Table 7. Rear View Item Description Battery To install a battery, an extender battery is optional. Rear camera 5.0 Mega-Pixels camera with LED auxiliary light. Barcode reader For installing a barcode reader. (Optional) NFC sensing area For detecting NFC devices.

  • Page 20: Dimensions

    Introduction Dimensions The following image lists the device dimensions without add-ons (mm/inches). 280 / 11 28 / 11 Figure 6. Front View Dimensions 23 / 0.9 2.3 / 0.9 Figure 7. Side View Dimensions...

  • Page 21: Touch Screen Features

    Introduction Touch Screen Features Always use the point of the stylus for clicking or making strokes on the touch screen. Never use an actual pen, pencil, or sharp/abrasive object on the touch screen. The stylus is used as if it were a pen or pencil. Touch the screen with the tip of the stylus then remove the stylus from the screen.

  • Page 22: Chapter 2. Getting Started

    Close the left I/O compartment cover. See “Closing the I/O Compartment Cover” on page Charging the Battery When you use the AC adapter to connect your PA-501 to a power outlet, the main battery (hot- swappable) automatically begins to recharge.

  • Page 23: Powering The Device On And Off

    Powering the Device On and Off Powering On the Device Only power on the PA-501 after connecting all of the peripherals and cabling. Press and hold the power button until the screen lights. The device runs through the start up sequence and powers up.

  • Page 24: Installing The Micro Sim Card

    Check with your network or cellular service provider for availability and cost rates. Power off the PA-501. See “Powering Off the Device” on page 20. Open the left I/O compartment cover. See “Opening the I/O Compartment Cover” on page Locate the micro SIM slot in the left I/O parts.

  • Page 25: Removing The Micro Sim Card

    Close the left I/O compartment cover. See “Closing the I/O Compartment Cover” on page Removing the Micro SIM Card Power off the PA-501. See “Powering Off the Device” on page 20. Open the left I/O compartment cover. See “Opening the I/O Compartment Cover” on page Locate the micro SIM slot in the left I/O parts.

  • Page 26: Installing The Microsd Card

    Getting Started Press the micro SIM card in and release it. The card springs out. Grasp the micro SIM card and remove it from the slot. Figure 17. Removing the Micro SIM Card Close the left I/O compartment cover. See “Closing the I/O Compartment Cover” on page Installing the MicroSD Card The device supports microSD card for easier data storage.

  • Page 27: Removing The Microsd Card

    Getting Started The microSD card has a corner missing. Align the microSD card with the slot making sure that the corners match. Insert the microSD card and press it in until an audible click sounds. Figure 19. Installing the MicroSD Card Close the left I/O compartment cover.

  • Page 28: Using The Stylus

    To do a long click, tap the screen and hold it for a few seconds. Removing the Protective Film from the Display The front display of the PA-501 is protected during transport by a transparent film. This film should remain on the front display during assembly to avoid damage to the front display surface.

  • Page 29: Chapter 3. Operation

    Operation Chapter 3. Operation Opening the I/O Compartment Cover Place the device display side down on a clean work surface. Locate the I/O compartment cover. Left view Right view Left I/O Right I/O Compartment Compartment Cover Cover Left I/O Compartment Cover Figure 23.

  • Page 30: Closing The I/O Compartment Cover

    Operation Closing the I/O Compartment Cover Place the device display side down on a clean work surface. Locate the I/O compartment cover. Left view Right view Left I/O Right I/O Compartment Compartment Cover Cover Left I/O Compartment Cover Figure 26. Side View: Locating the I/O Compartment Cover Flip the I/O compartment cover and install.

  • Page 31: Connecting To External Cabling

    Connect USB Cabling The PA-501 have one micro USB and one USB 2.0 ports for connecting USB devices, such as a digital camera, scanner, printer, modem, and mouse. The USB ports support USB 2.0 devices. Open the left I/O compartment cover. See “Opening the I/O Compartment Cover” on page Connect to USB device via USB cable.
  • Page 32 Operation Connect Ethernet Cabling The PA-501 provide have a Ethernet port for connecting Ethernet. Use a shielded cable is required to maintain emissions and susceptibility compliance. Open the left I/O compartment cover. See “Opening the I/O Compartment Cover” on page Connect LAN cable to Ethernet port on the PA-501.
  • Page 33 Connect to HDMI devices via micro HDMI cable. Open the left I/O compartment cover. See “Opening the I/O Compartment Cover” on page Connect micro HDMI cable to micro HDMI port on the PA-501. Figure 33. Connect Micro HDMI Cabling Connect RS-232 Cabling Connect to RS-232 devices via RS-232 cable.

  • Page 34: Handstrap, Carrying Handle And Shoulder Strap

    Operation Handstrap, Carrying Handle and Shoulder Strap The PA-501 is equipped with a handstrap, a carrying handle and a shoulder strap for convenience and choice. Select the accessory that is right for your needs. The handstrap can be installed with either the shoulder strap or the carrying handle. However, the handle and shoulder strap can not be installed together due to space constraints.
  • Page 35 Operation Connect the handstrap on the D-rings. When the handstrap is installed, the stylus can be placed under the strap. Figure 37. Connecting the Handstrap Removing the Handstrap Unlock the handstrap from the D-rings. Figure 38. Removing the Handstrap Remove the D-rings. Figure 39.
  • Page 36 Operation Secure the bumper and the PA-501 with screws. Figure 40. Securing the Screws Connecting the Carrying Handle Attach the clips to the metal loop on the bumper. Metal Loop Figure 41. Connecting the Carrying Handle Removing the Carrying Handle Press in the clips to release them from the metal loop.
  • Page 37 Operation Connecting the Shoulder Strap Attach the clips to the metal loop on the bumper. Metal Loop Figure 43. Connecting the Shoulder Strap Removing the Shoulder Strap Press in the clips to release them from the metal loop. Remove the clips. Metal Loop Figure 44.

  • Page 38: Installing The Standard Battery

    Operation Installing the Standard Battery The following instructions are for both standard and external batteries. The external battery is an optional component. Only use components specifically designed for this device. Contact your local representative for ordering information. Make sure the power switch is switched to ON before installing the standard/external battery.

  • Page 39: Removing The Standard Battery

    Operation Slide the locking switch on the top-left side to lock the battery. Figure 47. Locking the Battery Make sure the latch is securely locked to prevent the battery from falling. Removing the Standard Battery Place the device display side down on a clean work surface. Locate the battery.

  • Page 40: Connecting To A Wireless Network

    Figure 50. Removing the Battery Connecting to a Wireless Network PA-501 Supports two ways to connect to the internet by using LAN and Wireless. Before you setup the Ethernet, please connect to the RJ45 port. To turn on the Ethernet, please follow the steps: DHCP mode Tap APPS >...
  • Page 41 Operation Connecting to Wireless Network Before you can make use of the PA-501 wireless functions, you will need to connect to a network. Wi-Fi communication requires access to an existing Wireless Access Point (WAP). WAPs can be Open (unsecured, as with most hotspots) or Secured (requiring you to provide login credentials).

  • Page 42: Chapter 4. Troubleshooting

    Troubleshooting Chapter 4. Troubleshooting Refer to this resource page for useful information about the Android 4.2 Jelly Bean (JB) operating system loaded in your tablet. You may also go to the Android JB page (http://www.android.com/about/jelly-bean/) for more details. How do I change the home screen wallpaper? To change the wallpaper, tap and hold your finger on the Home Screen to open your wallpaper options.
  • Page 43 Extra charges from your carrier may apply if you use this feature. How do I shut down applications running in the background on Android PA-501? You can dismiss individual apps running in the background from the Recent Apps list with a swipe of your finger.
  • Page 44 Make sure to perform a backup before proceeding. My PA-501 does not display correct time and date even after adjusting the settings. How can I fix this? Replace the 3V lithium battery with a new one. The device uses a battery to retain system...
  • Page 45 What can I do if my tablet does not power on? If your PA-501 does not power on, try the following to resolve the issue: „ Ensure that the power cord and/or AC adapter are plugged into the PA-501 and that the connection is solid and not loose fitting. „...

  • Page 46: Chapter 5. Maintenance

    Maintenance Chapter 5. Maintenance Cleaning the Device Danger to electric shock when cleaning or maintaining the PA-501. To avoid electric shock, turn the PA-501 off and disconnect it from the power supply before cleaning or maintaining it. Housing „ The housing of the PA-501 is best cleaned with a damp cloth.
