  • Page 1 PM-511 User’s Manual...

  • Page 2: Introduction

    PM-511 User Manual Introduction Please read these safety instructions carefully. Please keep this User’s Manual for later reference. Please disconnect this equipment from connecter before cleaning. Don’t use liquid or prayed detergent for cleaning. User moisture sheet or cloth for cleaning.
  • Page 3 PM-511 User Manual Caution on use of battery: User the battery recommended by the manufacturer or the same type of battery installed by the manufacturer. If incorrect battery is used, it may cause explosion or fire hazard. Recycle or discard used batteries according the manufacturer’s instruction or your local authority.
  • Page 4 PM-511 User Manual -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
  • Page 5 PM-511 User Manual all EU member states and EFTA countries under the following conditions and/or with the following restrictions:  In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device for setting up outdoor radio links and/or for supplying public access to telecommunications and/or network services.

  • Page 6: Table Of Contents

    1.2.10. Optional: External Accessories ............. 11 1.3. Packing List ..................12 Chapter 2 ............... 13 System Setup ............13 2.1. Exploring Your PM-511..............13 2.1.1. The PM-511 IO ................13 2.2.Preparing for Installation ..............16 2.2.1.Switch ON the main battery ..............16 2.2.2.Plugging to the DC supply ..............
  • Page 7 4.3.Security Chip Configuration.............. 36 4.4.Boot Management Setup ..............37 4.5.Exit Control ..................38 Chapter 5 ............... 39 User Interface for PM-511 ........39 5.1.Introduction..................39 5.2.About the User Interface ..............39 5.2.1.Enable or disable the User Interface ............39 5.2.3.System Status Information ..............39 5.3.Using the Application .................
  • Page 8 5.3.2.Volume Control ..................42 5.3.3.Webcam Launch ..................42 5.3.4.Monitor Switch ..................43 5.3.5.RF Device ON/OFF Control ..............43 Chapter 6 ............... 45 Maintenance ............45 6.1.Maintaining the Battery ..............45 6.2.Maintaining the LCD Display ............. 45 6.3.Cleaning the PM-511 ................45...

  • Page 9: Chapter 1

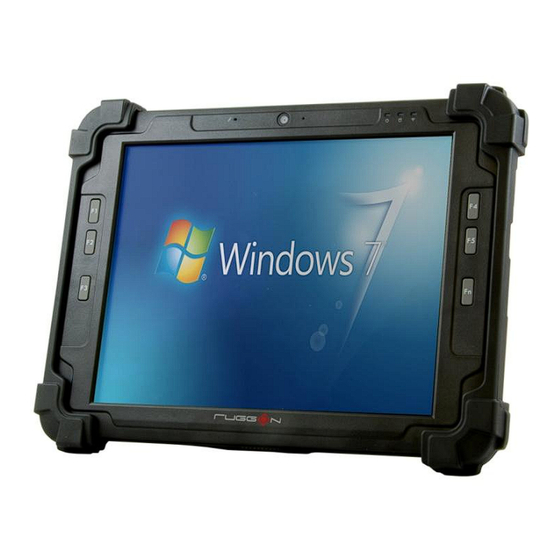

    Furthermore, PM-511 rugged tablet PC is equipped with fanless design. The PM-511 rugged tablet PC is a flexible, multi-functional flat tablet PC. With following specifications that can be applied in diverse operational environments and implemented in multi-faceted applications.

  • Page 10: I/O Interface

    PM-511 User Manual  Audio: -1 x High Quality Speaker (2W) -Internal Microphone : 1 x in front Bezel  Communication : - 10/100Mbps Ethernet - Wi-Fi IEEE 802.11 a/b/g/n ; Bluetooth 4.0  Webcam: Front - 2 Mega-pixel Camera Rear - 5 Mega-pixel Camera with LED Flash light 1.2.2.

  • Page 11: Material

    PM-511 User Manual Storage Temperature :  -20°C to +70°C (MIL-STD-810G Method 501.5 and 502.5)  Humidity :  5-95% without condensation (MIL-STD-810G Method 507.5)  Drop :  6-ft drop to Plywood (MIL-STD-810G Method 516.6 Procedure IV)  Vibration : ...

  • Page 12: Optional: External Accessories

    PM-511 User Manual Protocol :  HSUPA/HSDPA/UMTS/EVDO/EDGE  Frequency :  UMTS/HSUPA/HSDPA 850/900/1800/2100MHz  CDMA/EVDO 800/1900MHz  GSM/GPRS/EDGS 850/900/1800/1900MHz  1.2.10. Optional: External Accessories MSR :   Reference Standards : ANSI/ISO Standards 7810,7811-1/6, 7813  JIS II  ...

  • Page 13: Packing List

    PM-511 User Manual  Cigarette lighter plug power cord  ACC power cord (option)  GPS (option) 12 |...

  • Page 14: Chapter 2

    System Setup Before starting to set up the PM-511, get familiar with the locations and purpose of controls, connectors and I/O ports, which are illustrated in the figures below. When placed upright, the front panel of the PM-511 appears as shown in below.
  • Page 15 PM-511 User Manual Implement Secure Attention Sequence (SAS) Fn+F3 Button (SAS) Similar function as pressing Ctrl-Alt-Delete on a standard keyboard F1 KEY -LEFT ARROW F2 KEY -UP ARROW Function Key mapping during boot (for Windows system recovery) is as F3 KEY -ENTER...
  • Page 16 PM-511 User Manual  WiFi ON/OFF When LED turns on, blue light indicates that the WiFi is activated. When LED lights off, it indicates that the WiFi function is disabled. User Interface Button  This button is used to define the User Interface function. When you press this button, the system will appear the UI screen as illustrated below for executing the applications easily and quickly.

  • Page 17: Preparing For Installation

    Lets you connect the system to docking station to dock the tablet PC when you are at home or office desk. Your PM-511 is designed and pre-configured for easy setup and use. This section describes the installation steps you should follow to get the system running as quickly as possible.

  • Page 18: Plugging To The Dc Supply

    PM-511 User Manual b. Adjust DIP switch to “ON” c. Place back the battery door 2.2.2.Plugging to the DC supply The AC adapter provides external power source to your system and charges the internal battery pack at the same time. The AC adapter also has an auto-switching design that can connect to any 100VAC ~ 240VAC power outlets.

  • Page 19: Connecting The Keyboard And Mouse

    PM-511 User Manual to start your system and check that if the Power LED turns on. After a few seconds, the system’s display will turn on and your system will begin to execute the Power On Self Test or POST to check if all system components are running properly. Any error found during the test will be displayed on the screen.

  • Page 20: Chapter 3

    1. Locate the audio ports (Microphone and Headphone) that you want to use to the target device. 2. Plug the jack into the port on the right side of the system. PM-511 provides optional external battery to extend the power of your system. For installing the battery pack, please follow the steps below: 1.

  • Page 21: Using A Sim Card

    To insert a SIM card into the SIM Card slot: 1. Turn off your System. The PM-511 must be powered off while the SIM Card is being connected. Otherwise, it is harmful to both devices and it shortens the life of these devices.
  • Page 22 PM-511 User Manual 3. Make sure the clipped corner facing inward with the metallic label of the card facing down. Push the SIM Card firmly but slowly into the SIM Card slot. To insert a SIM card into the slot, please pay attention only one correct side can be accepted for the card slot. If you cannot insert the card into the slot or you had inserted the card but it is not recognized by the Tablet PC, please remove the card and insert it again.
  • Page 23 PM-511 User Manual 22 |...

  • Page 24: Removing A Sim Card

    PM-511 User Manual 5. Place the optional accessory cover back to the place and screw it firmly on top of the system. 3.5.2.Removing a SIM Card To remove a SIM Card from the SIM Card slot: 1. Turn off your system.

  • Page 25: Using A Barcode Scanner Module, Msr, Desktop Docking Or Vehicle Docking (Optional)

    PM-511 User Manual The PM-511 System provides barcode scanner and MSR functions for your optional selection, before installing either of these two modules on the top side of the system, please remove the screws previously (illustrated in the following graphics as indicated step 1).

  • Page 26: Using The Docking Station

    PM-511 User Manual PM-511 provides optional of docking station for you to dock this system when you are at your home or on your office desk. Docking Station Docking Connector Attach the PM-511 to the docking station by connecting the docking connectors both on the system and the docking station.

  • Page 27: The Rear Side Of The Docking Station

    Lets you attach an external monitor or projector for wider display. You can run the screen display and the external monitor supporting Native 1024x768 monitor simultaneously. LAN port  An 10Base-T/100Base-TX Ethernet LAN module lets your PM-511 connects to other computers/networks through a local area network (LAN). DC-Jack ...
  • Page 28 PM-511 User Manual Installing Vehicle Dock Overlook of Vehicle Dock Front side: Hooker Lever Backside: Key Lock Option Modules 27 |...
  • Page 29 PM-511 User Manual I/O Ports Define: USB A type RJ45 RS232 Power Reserved ANT GPS ANT VGA Out Getting Start: Flip lever on both sides Insert tablet into docking there is not FN button) Push tablet forwards using both hands to lock by latch.
  • Page 30 PM-511 User Manual Tablet should lock into place as shown. Note: mounting design Vehicle docking is designed to accommodate mounting with standard 75x75mm or 100x100mm. Install GPS (GP03) on vehicle docking 1. Screw loose of side door and flip it open 2.
  • Page 31 PM-511 User Manual 3. Fixed with screws and link connectors. 4. Flip back of side door and screw tight. 5. Connect with external GPS antenna as below showing. Connecting cigar lighter cord on vehicle docking 1. Place cigar lighter cord on power port of vehicle docking as below showing.
  • Page 32 PM-511 User Manual Power Port Cigar Lighter Power Port Pin Out Connecting ACC cord on vehicle docking 1. Place ACC cord on vehicle docking as below showing. 2. Another side of ACC lines mating in your car accumulator. 31 |...
  • Page 33 PM-511 User Manual Power Port ACC lines Attention: Please short the ACC & DCC cables together if you want connect with power adaptor output. Cables & Pin Out for Car Fuse Box 32 |...
  • Page 34 PM-511 User Manual VCC fuse Only For Car Fuse Box 33 |...

  • Page 35: Chapter 4

    PM-511 User Manual The BIOS Setup Program This system comes with a chip from Phoenix BIOS that contains the ROM Setup information for your system. (This chip serves as an interface between the processor and the rest of the system components.) This section explains the information contained in the Setup program and tells you how to modify the settings according to your system configuration.
  • Page 36 PM-511 User Manual The Standard CMOS Setup screen is displayed above. Each feature may have one or more option settings. Use the arrow keys to highlight the feature you want to change and then use “”or “” to select the value you want for that feature.

  • Page 37: Advanced Bios Features

    PM-511 User Manual For Advanced Settings, the BIOS will automatically display the Platform information and let you define the configuration when system booting. In this section, you may set the configurations for the following items: Quick boot, UEFI boot, Legacy boot, and Boot Priority.

  • Page 38: Boot Management Setup

    PM-511 User Manual Supervisor Password is:  This option displays the status of Supervisor Password. If the password is entered, it will display “Set” information, or it will display “Cleared” information when there is no password setting. User Password is ...

  • Page 39: Exit Control

    PM-511 User Manual Exit Saving Changes  When you select this option, it will pop-out the following message, “Save configuration changes and exit setup?” Select [OK] to save the changes and exit the BIOS SETUP UTILITY. Exit Discarding Changes ...

  • Page 40: Chapter 5

    PM-511 User Manual User Interface for PM-511 This user interface provides specific mobile utility to let you easily setup some helpful functions and aware the system status directly. This utility also let you adjust some function to fit the requirements, such as brightness and volume adjustment, webcam launch, screen orientation and monitor switching.
  • Page 41 PM-511 User Manual For battery capacity status: The PM-511 is equipped with one internal battery and one optional external battery. The battery capacity status shown below advises you, that only one internal battery is embedded with the system which is fully charged, and there is no 2 optional battery installed in the system.

  • Page 42: Using The Application

    The system information shown on the left shows you the hotkey utility version, BIOS and EC version and you can use them for customer service when asked. Your PM-511 has numbers of applications on the control panel for executing specific command. It provides you to adjust brightness, volume, launch webcam, make screen orientation and switch monitor.

  • Page 43: Volume Control

    PM-511 User Manual You can click to reduce or increase the brightness.  Also, you can slide the scale bar to set the brightness.  Since the system supports the light sensor, if you tick the brightness Auto adjustment ...

  • Page 44: Monitor Switch

    You can click Duplicate to display the same contents both on the PM-511 screen and  external display device. The resolution on these two display modes are same, it is not available to adjust the resolution on the external display mode.
  • Page 45 PM-511 User Manual You can see all functions in this option list have been ticked. To close any device function, please touch the option to close the execution as shown in the following graphics. Disable Wi-Fi function Disable Bluetooth function...

  • Page 46: Chapter 6

    Your PM-511 needs occasional cleaning to prolong their life. Please read this section carefully to ensure proper care of PM-511. When it is necessary to clean it, use a soft, lint-free cloth, slightly dampened with a mild detergent solution or use the contents of any commercially available computer cleaning kit.
