- Page 1 PM-311 User’s Manual...
-
Page 2: Introduction
PM-311 User Manual Introduction Please read these safety instructions carefully. Please keep this User’s Manual for later reference. Please disconnect this equipment from connecter before cleaning. Don’t use liquid or prayed detergent for cleaning. User moisture sheet or cloth for cleaning. - Page 3 PM-311 User Manual it may cause explosion or fire hazard. Recycle or discard used batteries according the manufacturer’s instruction or your local authority. The computers use nonvolatile memory that requires a battery to retain system information when power is removed. The 3V lithium battery is on the system board.
- Page 4 PM-311 User Manual FCC RF Radiation Exposure Statement: This Transmitter has been demonstrated co-location compliance requirements with Wi-Fi, Bluetooth and RFID Modules. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.
- Page 5 PM-311 User Manual in order to obtain authorization to use the device for setting up outdoor radio links and/or for supplying public access to telecommunications and/or network services. This device may not be used for setting up outdoor radio links in France and in some areas the RF output power may be limited to 10 mW EIRP in the frequency range of 2454 –...
-
Page 6: Table Of Contents
1.3. Packing List ..................12 Chapter 2 ............... 13 System Setup ............13 2.1. Exploring Your PM-311..............13 2.1.1. The PM-311 IO ..................13 2.2.Preparing for Installation ..............17 2.2.1.Switch ON the main battery ..............17 2.2.2.Plugging to the DC supply ..............17... - Page 7 4.3.Security Chip Configuration.............. 25 4.4.Boot Management Setup ..............26 4.5.Exit Control ..................27 Chapter 5 ............... 28 User Interface for PM-311 ........28 5.1.Introduction..................28 5.2.About the User Interface ..............28 5.2.1.Enable or disable the User Interface ............28 5.2.3.System Status Information ..............28 5.3.Using the Application .................
- Page 8 PM-311 User Manual 5.3.5.RF Device ON/OFF Control ..............33 Chapter 6 ............... 35 Maintenance ............35 6.1.Maintaining the Battery ..............35 6.2.Maintaining the LCD Display ............. 35 6.3.Cleaning the PM-311 ................35...
-
Page 9: Chapter 1

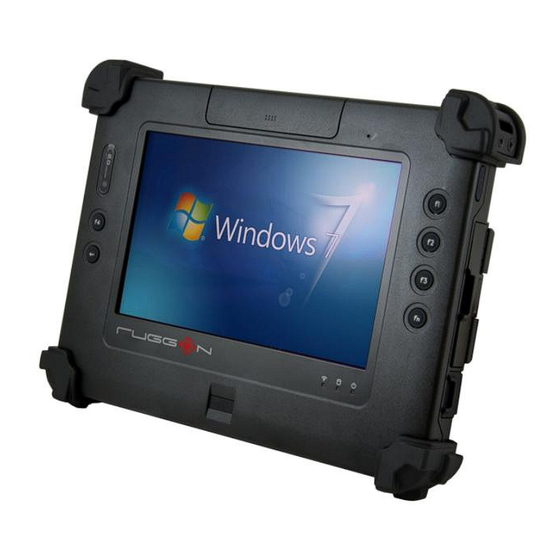

Furthermore, PM-311 rugged tablet PC is equipped with fanless design. The PM-311 rugged tablet PC is a flexible, multi-functional flat tablet PC. With following specifications that can be applied in diverse operational environments and implemented in multi-faceted applications. -
Page 10: I/O Interface
PM-311 User Manual 5-wire Resistive Touch Screen Audio: -1 x High Quality Speaker (2W) -Internal Microphone : 1 x in front Bezel Communication : - 10/100Mbps Ethernet - Wi-Fi IEEE 802.11 a/b/g/n ; Bluetooth 4.0 Webcam: Front - 2 Mega-pixel Camera Rear - 5 Mega-pixel Camera with LED Flash light 1.2.2. -
Page 11: Material
PM-311 User Manual 5-95% without condensation (MIL-STD-810G Method 507.5) Drop : 5-ft drop to Plywood (MIL-STD-810G Method 516.6 Procedure IV) Vibration : Operating : SSD (MIL-STD-810G Method 514.6 Category 4 Fig 514.6C-3) Mechanical Shock : ... -
Page 12: Optional: Internal Module
PM-311 User Manual 1.2.9. Optional: Internal Module 3.5G Sierra MC8355 Gobi3000 : Protocol : HSUPA/HSDPA/UMTS/EVDO/EDGE Frequency : UMTS/HSUPA/HSDPA 850/900/1800/2100MHz CDMA/EVDO 800/1900MHz GSM/GPRS/EDGS 850/900/1800/1900MHz 1.2.10. Optional: External Accessories MSR and Barcode Snap on module ... -
Page 13: Packing List
PM-311 User Manual Cigarette lighter plug power cord ACC power cord (option) GPS (option) 12 |... -
Page 14: Chapter 2
System Setup Before starting to set up the PM-311, get familiar with the locations and purpose of controls, connectors and I/O ports, which are illustrated in the figures below. When placed upright, the front panel of the PM-311 appears as shown in below. - Page 15 PM-311 User Manual Fn = Hotkey Utility Fn Button Enter or Return key Enter Button Implement Secure Attention Sequence (SAS), similar function as pressing Ctrl-Alt-Delete Fn Button F3 Button combination keys. F1 or F4 acts as trigger button when optional Trigger Button barcode scanner is installed.
- Page 16 PM-311 User Manual WiFi ON/OFF When LED turns on, blue light indicates that the WiFi is activated. When LED lights off, it indicates that the WiFi function is disabled. User Interface Button This button is used to define the User Interface function. When you press this button, the system will appear the UI screen as illustrated below for executing the applications easily and quickly.
- Page 17 PM-311 User Manual The 10/100Mbps Ethernet port allows you to connect to other computers/networks through a local area network (LAN). RS-232 Serial Port RS-232 serial port allows connections to modems, printers, mice, barcode readers, data acquisition equipment, and other peripheral devices.
-
Page 18: Preparing For Installation
PM-311 User Manual Your PM-311 is designed and pre-configured for easy setup and use. This section describes the installation steps you should follow to get the system running as quickly as possible. 2.2.1. Switch ON the main battery a. Main battery switch is located on rear side of yellow label battery door b. -
Page 19: Starting Your System
PM-311 User Manual to be used. -- Make sure the socket and any extension cord(s) you use can support the total current load of all the connected devices. -- Remove all power from the device prior to installing or removing any... -
Page 20: Chapter 3
1. Locate the audio ports (Microphone and Headphone) that you want to use to the target device. 2. Plug the jack into the port on the right side of the system. PM-311 provides optional external battery to extend the power of your system. For installing the battery pack, please follow the steps below: 1. -
Page 21: Using A Sim Card
To insert a SIM card into the SIM Card slot: 1. Turn off your System. The PM-311 must be powered off while the SIM Card is being connected. Otherwise, it is harmful to both devices and it shortens the life of these devices. -
Page 22: Removing A Sim Card
Your PM-311 is designed with equipped the optional 2-in-1 Snap On MODULE (Barcode Scanner + MSR). To install the 2-in-1 Snap on MODULE (Barcode Scanner + MSR). - Page 23 PM-311 User Manual 4. Screw to secure the Barcode Scanner module onto the system 22 |...
-
Page 24: Chapter 4
PM-311 User Manual The BIOS Setup Program This system comes with a chip from Phoenix BIOS that contains the ROM Setup information for your system. (This chip serves as an interface between the processor and the rest of the system components.) This section explains the information contained in the Setup program and tells you how to modify the settings according to your system configuration. - Page 25 PM-311 User Manual The Standard CMOS Setup screen is displayed above. Each feature may have one or more option settings. Use the arrow keys to highlight the feature you want to change and then use “”or “” to select the value you want for that feature.
-
Page 26: Advanced Bios Features
PM-311 User Manual For Advanced Settings, the BIOS will automatically display the Platform information and let you define the configuration when system booting. In this section, you may set the configurations for the following items: Quick boot, UEFI boot, Legacy boot, and Boot Priority. -
Page 27: Boot Management Setup
PM-311 User Manual Supervisor Password is: This option displays the status of Supervisor Password. If the password is entered, it will display “Set” information, or it will display “Cleared” information when there is no password setting. User Password is ... -
Page 28: Exit Control
PM-311 User Manual Exit Saving Changes when you select this option, it will pop-out the following message, “Save configuration changes and exit setup?” Select [OK] to save the changes and exit the BIOS SETUP UTILITY. Exit Discarding Changes ... -
Page 29: Chapter 5
PM-311 User Manual User Interface for PM-311 This user interface provides specific mobile utility to let you easily setup some helpful functions and aware the system status directly. This utility also let you adjust some function to fit the requirements, such as brightness and volume adjustment, webcam launch, screen orientation and monitor switching. - Page 30 PM-311 User Manual For battery capacity status: The PM-311 is equipped with one internal battery and one optional external battery. The battery capacity status shown below advises you, that only one internal battery is embedded with the system which is fully charged, and there is no 2 optional battery installed in the system.
- Page 31 PM-311 User Manual The following signal strength shows you that the Wi-Fi function is connecting currently, the stronger the signal strength, the more scale will show on the bar. If there is no module in the system, there will be no status scale in the following status bar.
-
Page 32: Using The Application
PM-311 User Manual Your PM-311 has numbers of applications on the control panel for executing specific command. It provides you to adjust brightness, volume, launch webcam, make screen orientation and switch monitor. 5.3.1. Brightness Control For brightness adjustment, press the Brightness command. -
Page 33: Webcam Launch
You can click Duplicate to display the same contents both on the PM-311 screen and external display device. The resolution on these two display modes are same, it is not available to adjust the resolution on the external display mode. -
Page 34: Rf Device On/Off Control
PM-311 User Manual You can click Extend to display the different contents on the PM-311 screen and external display device. You only can adjust the resolution on the external display device. You can click Projector only to display on external projector only. - Page 35 PM-311 User Manual Activate Wi-Fi function Activate Bluetooth function Activate WWAN function Activate GPS function 34 |...
-
Page 36: Chapter 6
Your PM-311 needs occasional cleaning to prolong their life. Please read this section carefully to ensure proper care of PM-311. When it is necessary to clean it, use a soft, lint-free cloth, slightly dampened with a mild detergent solution or use the contents of any commercially available computer cleaning kit.
