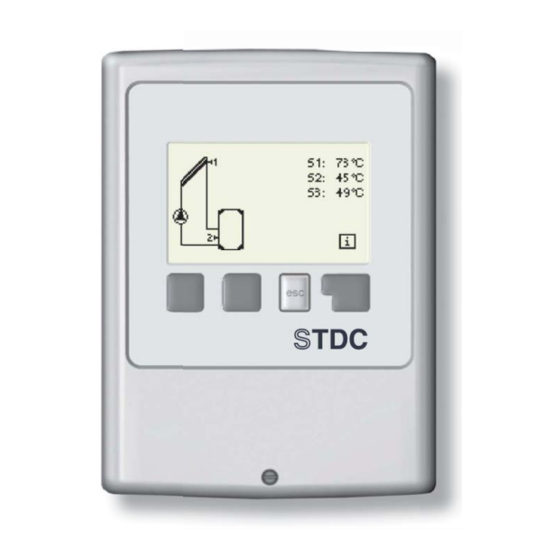

- Page 1 Instruction Manual STDC E Controller v 1.5...
-
Page 2: Table Of Contents
F 10 - Language ..........................Part G - Defects and Maintenance G 1 - Defects with error messages ...................... G 2 - Replacing the fuse ........................G 3 - Maintenance ..........................G 4 - Disposal ............................REGULUS - STDC E Controller - www.regulus.eu │... -
Page 3: General Information
Declaration The Manufacturer declares that STDC E Solar Controller is marked with CE mark and meets the requirements of the following Directives: - Directive 2006/95/EC – Low Voltage Directive (LVD) - Directive 2004/108/EC - Electromagnetic Compatibility (EMC) General information Please read carefully! This Instruction Manual contains basic instructions and important information on the safety, commissioning and the best use of the Controller. -
Page 4: A 1 - About The Controller
A 2 - About the controller The STDC E controller is designed to control automatic operation of solar systems with solar collectors for heating fluids. This type is intended for use in solar systems with one collector field and one solar heat sink. - Page 5 B - Hydraulic variants The following pictures represent possible hydraulic variants of solar systems controlled by STDC E controller. The following illustrations should be viewed only as schematic diagrams showing the respec- tive hydraulic systems, and do not claim to be complete. The controller does not replace safe- ty devices under any circumstances.
-
Page 6: C 1 - Wall Installation
6. Insert the upper screw and screw it in slightly. 7. Fit the upper part of the housing and insert the other fixing screw. points 8. Align the housing and tighten the all screws. Fig. C 1.2 REGULUS - STDC E Controller - www.regulus.eu │... -
Page 7: C 2 - Electric Wiring
Warning! Mind the cables in order to prevent ▼ unintentional pressing the clamps (Fig. C 2.1 c). Danger 9. Secure using a screw. 10. Switch on mains voltage and put controller in operation.. REGULUS - STDC E Controller - www.regulus.eu REGU GULU STDC l e ler │... -
Page 8: C 3 - Installing The Temperature Sensors
Max. S1 sensor lead length is 30 m with its cross section at least 0,75 mm Max. S2 and S3 sensor lead length is 10 m with its cross section at least0,75 mm Caution No contact resistance is permitted in the conductive connection to sensors! REGULUS - STDC E Controller - www.regulus.eu │... -
Page 9: D 1 - Solar Thermal System With Storage Tank
V1/ - 0-10V or PWM +/- Mains voltage - 230V 50Hz Terminal: connection for: mains phase conductor L mains neutral conductor N pump L pump N NC contact Mains protective conductor (green-yellow) REGULUS - STDC E Controller - www.regulus.eu │... -
Page 10: D 3 - Solid Fuel Boiler With Storage Tank
Terminal: connection for: mains phase conductor L mains neutral conductor N pump L Mains pump N NC contact protective conductor (green-yellow) Heat is flowing from storage tank 1 to storage tank 2. Caution REGULUS - STDC E Controller - www.regulus.eu │... -
Page 11: D 5 - Return Line Preheating
N pump L pump N NC contact Mains protective conductor (green-yellow) If S2 sensor is installed, then S1 acts as a switch-on sensor and S2 as a switch-off Caution sensor. REGULUS - STDC E Controller - www.regulus.eu │... -
Page 12: D 7 - Universal Δt
N regulating valve L regulating valve N Mains NC contact protective conductor (green-yellow) If the temperature at sensor 1 is higher than the temperature at sensor 2, relay R closes. Caution REGULUS - STDC E Controller - www.regulus.eu │... -
Page 13: D 9 - Solar Thermal System With Heat Exchanger And Swimming Pool
V1/ - 0-10V or PWM +/- Mains voltage - 230V 50Hz Terminal: connection for: mains phase conductor L mains neutral conductor N valve L valve N Mains NC contact protective conductor (green-yellow) REGULUS - STDC E Controller - www.regulus.eu │... -
Page 14: E 1 - Display And Input
Confirm setting confirmation Display symbols: pump (rotates in operation) valve (direction of flow black) collector storage tank Solid-fuel boiler pool temperature sensor thermostat on/off warning/error message new information available REGULUS - STDC E Controller - www.regulus.eu │... -
Page 15: E 2 - Commissioning Help
Then switch on automatic mode. Read the explanations for the individual parameters on the following pages, and check whether further settings are necessary for your application. Caution REGULUS - STDC E Controller - www.regulus.eu │... -
Page 16: E 4 - Menu Structure
7. Special functions calibration, clock etc. 8. Menu lock 8. Lock against unintentional setting changes 9. Service values 9. For diagnosis in the event of an error 10. Language 10. Language selection REGULUS - STDC E Controller - www.regulus.eu │... -
Page 17: F 1 - Measurements
In this case the display values can be compensated for using the function of sensor compensation - see Chapter D 7.5. What measurement values are displayed depends on the selected program, sensors connected and the specific device connected. REGULUS - STDC E Controller - www.regulus.eu │... -
Page 18: F 2 - Statistics
Display of the last 20 errors occurring in the system with indication of date and time. F 2.6 - Reset / Clear Resetting and deleting the individual analyses. The function „All statistics” clears all analyses but not the error messages. REGULUS - STDC E Controller - www.regulus.eu │... -
Page 19: F 3 - Display Mode
Setting range: On, Off / Default setting: Off If a message or alarm is displayed, the backlight is not switched off until the message is read. Caution REGULUS - STDC E Controller - www.regulus.eu │... -
Page 20: F 4 - Operating Modes
When the operating mode „Off” is activated, all controller functions are switched off. This can lead, for example, to overheating on the solar collector or other system components. The measured temperatures continue to be shown to provide an overview. Danger F 4.4 - Not in use REGULUS - STDC E Controller - www.regulus.eu │... -
Page 21: F 5 - Settings
Temperature values which are set too high will allow higher solar heat accumulation but it shall be checked that all system components are resistant to high temperature and scalding protection is Danger provided. Regulus solar systems are safe for heating water up to 95 °C. F 5.8 - ΔT R1 Switch-on/switch-off temperature difference for relay R1 If the temperature difference ∆T between the reference sensors is exceeded, then the controller switches... - Page 22 Danger provided. Regulus solar systems are safe for heating water up to 95 °C. F 5.21 - Thermostat periods Set the desired periods of time when the thermostat should be active. 2 periods can be set per day, settings can also be copied to other days.
-
Page 23: F 6 - Protections
Frost protection stage 2 setting range: from -25 °C to 8 °C or off/default setting: 5 °C This function causes energy loss via the collector! As Regulus solar systems are filled with antifreeze fluid, the antifreeze protection off. F 6.3 - System protection prevents overheating of solar system components (solar only). - Page 24 To provide complete protection Danger against Legionella bacteria, it must be ensured that the temperature is raised to the necessary value, and at the same time there must be water circulation in the storage tanks. REGULUS - STDC E Controller - www.regulus.eu │...
-
Page 25: F 7 - Special Functions
When selecting this menu, you will be prompted to save the settings. F 7.2.1 - Pump control Settings for pump speed control. The below listed options are valid for STDC E controller: Standard: Speed control for standard 230V pumps on output R1. Use this setting for standard pump only. - Page 26 Min rpm 0-5% Cable break detection Stop 5-20% Stop 25% Start Start 25-90% Area of control PWM-Signal (%) 20% 25% 100% PWM on >=25% PWM max <= 90% PWM off 5% - 20% REGULUS - STDC E Controller - www.regulus.eu │...
- Page 27 0V = Off F 7.3 - Speed control R1 If the speed control is activated, the STDC E makes it possible to vary the speed of standard pumps at relay by means of special internal electronics. This function should only be activated by a specialist. Depending on the pump and pump stage used, the minimum speed should not be set too low, because otherwise the pump or the system may be damaged.
- Page 28 This value is the control setpoint for mode V3 (see Chapter 7.3.1). If the value at the sensor drops below this, the speed is reduced. If it rises above this, the speed is increased. Setting range: 0° to 90°C/Default setting: 60°C REGULUS - STDC E Controller - www.regulus.eu │...
- Page 29 Settings range: On/off /default setting: Off F 7.8.2 - AF type Adjust the type of antifreeze used in the system. The solar fluid used in Regulus systems is of propylene type. Setting range: Ethylene/Propylene / default setting: Ethylene F 7.8.3 - Glycol portion Adjust the percentage of glycol that has been used in the system.
- Page 30 This function should only be activated by a specialist if problems arise with acquisition of measurement values. Caution F 7.10 - Daylight saving time When this function is active, the controller’s clock changes automatically to and from DST (DST, Daylight Savings Time). REGULUS - STDC E Controller - www.regulus.eu │...
-
Page 31: F 8 - Menu Lock
F 8 - Menu lock F 9 - Service values To lock the other menus, select „Menu lock on”. To enable the menus again, select „Menu lock off”. Setting range: on, off/default setting: off REGULUS - STDC E Controller - www.regulus.eu │... -
Page 32: F 9 - Service Values
Language selection is not available in every device design! The latest version contains the following languages: German, English, Spanish, French, Italian, Swedish, Polish, Portuguese, Greek, Finnish, Hungarian Turkish, Czech, Russian, Danish, Dutch, Croatian and Bulgarian. REGULUS - STDC E Controller - www.regulus.eu │... -
Page 33: G 2 - Replacing The Fuse
(e.g. pump) and replace it. Then first recommission the controller and check the function of the switch outputs in manual mode as described under F 4.2. Fig. G 2.1 REGULUS - STDC E Controller - www.regulus.eu │... -
Page 34: G 1 - Defects With Error Messages
For more detailed information about the disposal of your old equipment, please contact your local authorities, waste WEEE registration number: 02771/07-ECZ disposal service, or the shop where you purchased the product. REGULUS - STDC E Controller - www.regulus.eu │... - Page 36 01/2017 REGULUS spol. s r.o. Do Koutů 1897/3 http://www.regulus.eu 143 00 Praha 4 E-mail: sales@regulus.cz...
