Anest Iwata Air Gunsa AZ3 HTE Instruction Manual

The spray gun should be operated by a trained worker. Any use and/or servicing not in compliance with this manual will
INVALIDATE THE WARRANTY. Read these instructions before using the spray gun.
SPECIFICATIONS
Max. working pressure: 6.8 bar (98 PSI)
Temperature range:
Model Supply
type
AZ3 HTE
gravity
AZ3 HTE AV
ATTENTION
Spare parts list is provided on page 3.
Manufactured by:
AIR GUNSA s.r.l. - Via degli Aceri, 1 - 21010 Cardano al Campo (VA) Italy
INSTRUCTION MANUAL

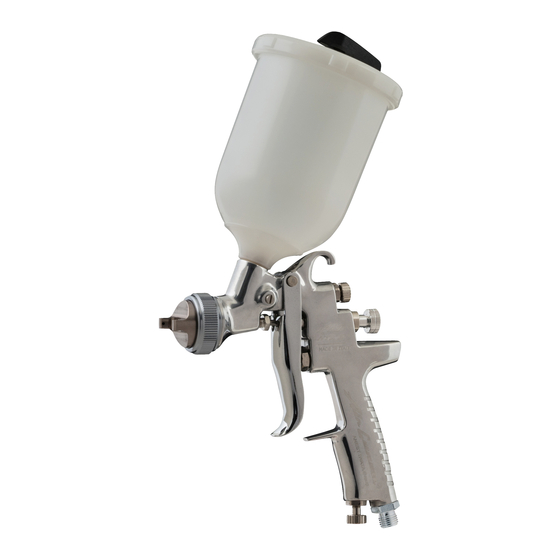

AZ3 HTE / AZ3 HTE AV SPRAY GUN
PL Before commencement of work thoroughly read this
manual and its instructions, including those regarding
safety of work, and strictly observe them.
Emitted noise level (LAeqT) 7.6 dB (A)
5~40 °C
Nozzle Head
diameter symbol
Ø mm
1.0 W2010135110
1.3 W2010135113
1.5 W2010135115
1.8 W2010135118
2.0 W2010135120
2.5 W2010131400
2.8 W2010133300
3.0 W2010131500
3.5 W2010131600
IMPORTANT
Lacquer Width
output mm
ml/min
80 170
150 240
190 260
260 300
265 310
424 340
427 350
489 360
490 340
1
Paint tank terminal: G 1/4" F
Air inlet terminal: G 1/4 " M
Air
consumption
with tank
l/min
200
2.0
200
bar 680
200
205
205
279
3.0
291
710
bar
288
307
Weight
without tank
540
570
