MicroStep SH-HC30 User Manual page 23

Electrical connection of arc voltage detection-type heig ht controller
The elect rical connection of arc voltage det ection-type height controller is shown in Fig.
3-8.
The cable connections among height controller (15-pin connector), CNC system (25-pin
connector) and voltage divider board (9-pin connector) should be made by the user.
For the pin definitions of 15 -pin, 25-pin connector and 9-pin connecto r, see Table 3-1,
Table 3-2 and Table 3-3
Height

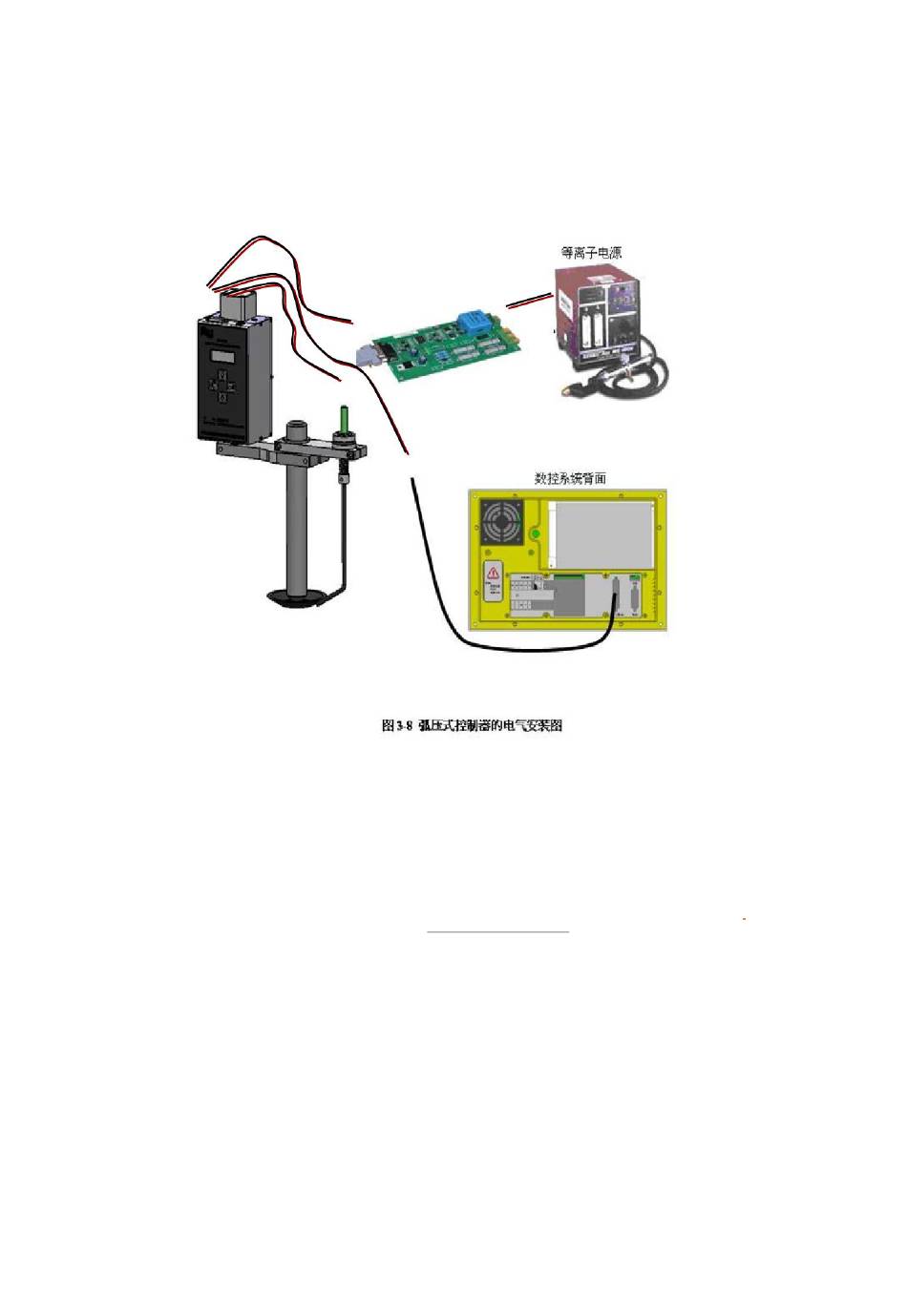

Fig. 3-8 Elect rical wiring diagram of arc voltage height controller
Table 3-3 Pin definitions of 9- pin connect or for volta e divider board
PDF 文件使用 "pdfFactory Pro" 试用版本创建
调高器说明书
Voltage divider
board
print.com.cn
ww w.fine
Plasma Power Supply
The back panel of CNC system
18
