Fig. 3-2 Mounting position of
The right view of the height controller and related installation dimensions are
shown in Fig. 3-3.

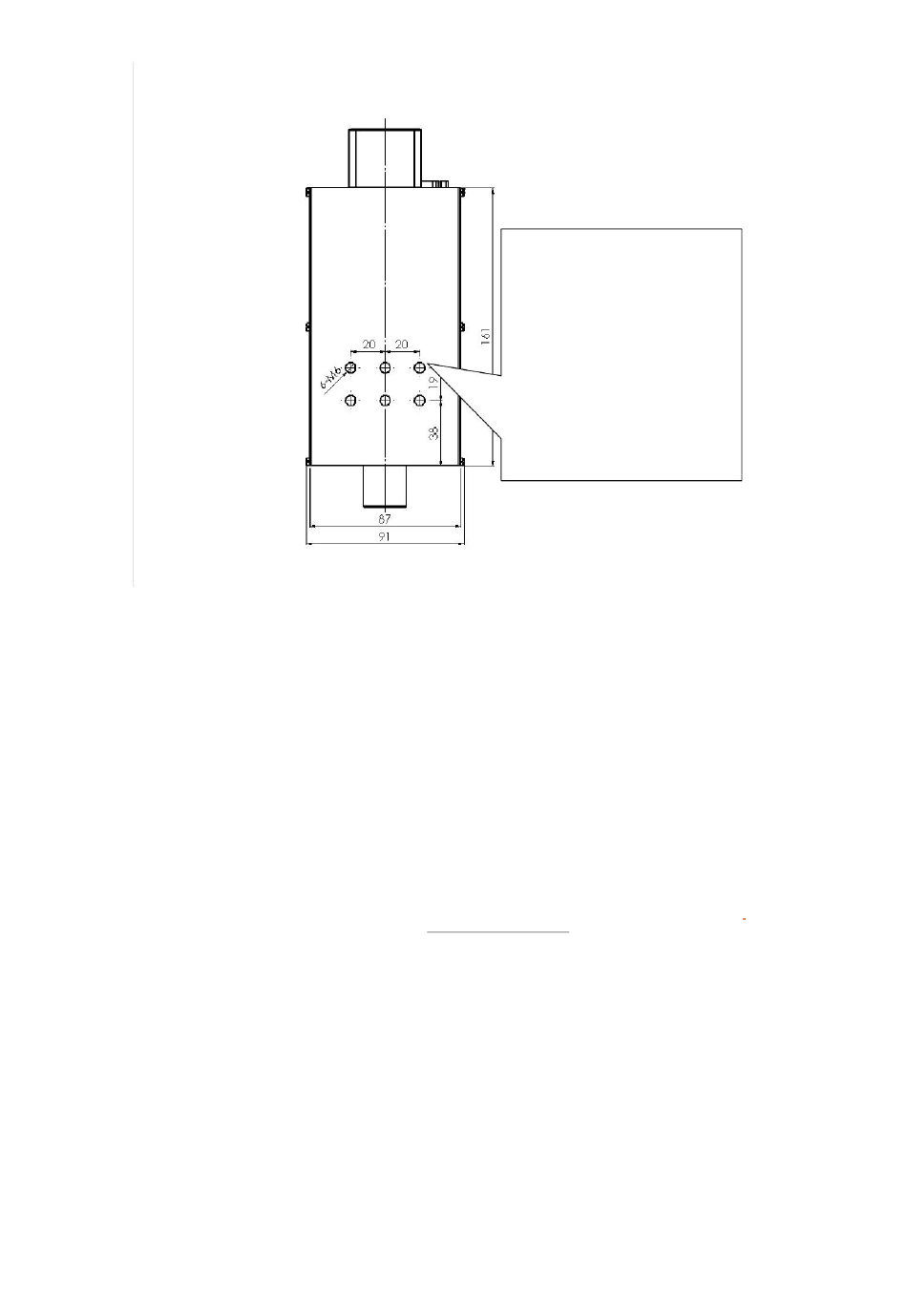

The back view of the height controller and related installation dimensions are
shown in Fig. 3-4.
www.fine print.com.cn
Note:
1. Make sure the depth of bolts in
six mounting holes during
installation will not affect the
travel.
2. The length of each mounting
bolt beyond the shell of the height
controller interna llymust be less
than 8mm, i. e., the bolt length
inserting into the interior of the
height controller shell must not
exceed 8mm.
screw holes
in the back of the controller
