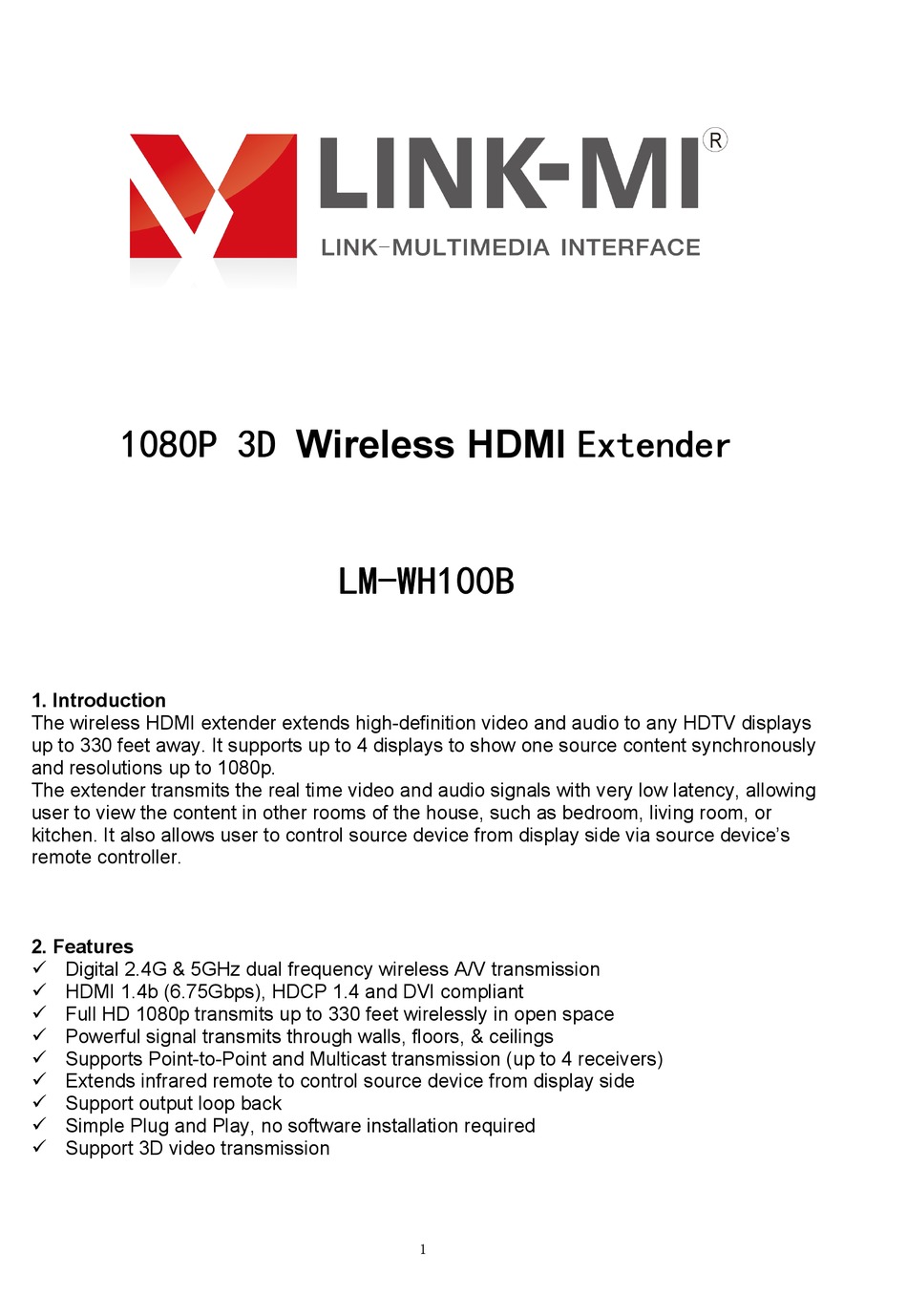

LINK-MI LM-WH100B Quick Start Manual

1080P 3D Wireless HDMI Extender
1080P 3D 1080P 3D
1. Introduction
The wireless HDMI extender extends high-definition video and audio to any HDTV displays
up to 330 feet away. It supports up to 4 displays to show one source content synchronously
and resolutions up to 1080p.
The extender transmits the real time video and audio signals with very low latency, allowing
user to view the content in other rooms of the house, such as bedroom, living room, or
kitchen. It also allows user to control source device from display side via source device's
remote controller.
2. Features
 Digital 2.4G & 5GHz dual frequency wireless A/V transmission
 HDMI 1.4b (6.75Gbps), HDCP 1.4 and DVI compliant
 Full HD 1080p transmits up to 330 feet wirelessly in open space
 Powerful signal transmits through walls, floors, & ceilings
 Supports Point-to-Point and Multicast transmission (up to 4 receivers)
 Extends infrared remote to control source device from display side
 Support output loop back
 Simple Plug and Play, no software installation required
 Support 3D video transmission
